Message: No Free Card (1 Viewer)

kpatch

MP Donator
  • Premium Supporter
  • March 11, 2014
    52
    2
    Home Country
    Canada Canada
    I have just installed MediaPortal on a second system, using a Hauppauge HD PVR. Everything seemed to go well. I also replaced the TVLibrary.dll and TVLibraryInterfaces.dll that ship with MP with the ones sent to me by MM for the HD PVR. When I turn on TV, I get a message "No free card".

    I have attached the Watchdog diagnostic logs.

    Also...channels in my EPG are not sorted.

    Any thoughts?

    Thanks

    Patrick


    mm1352000

    Retired Team Member
  • Premium Supporter
  • September 1, 2008
    21,577
    8,224
    Home Country
    New Zealand New Zealand
    Hi Patrick

    I also replaced the TVLibrary.dll and TVLibraryInterfaces.dll that ship with MP with the ones sent to me by MM for the HD PVR.
    Make sure you only replace for TV Server. You should not do any replacement for MediaPortal.

    When I turn on TV, I get a message "No free card".
    That's because you haven't linked your channels to the HD-PVR:
    http://wiki.team-mediaportal.com/1_...Server_Configuration/03_TV_Channels/2_Mapping

    Regards,
    mm


    kpatch

    MP Donator
  • Premium Supporter
  • March 11, 2014
    52
    2
    Home Country
    Canada Canada

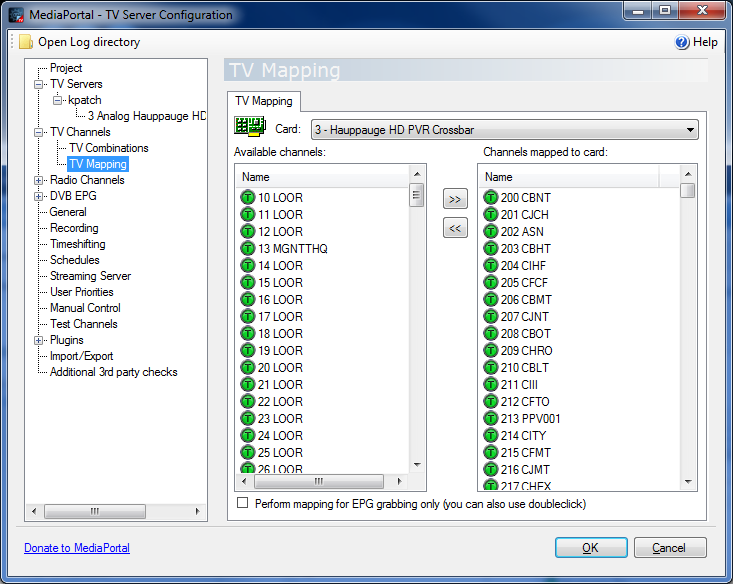

    The attached screenshot shows that I have mapped my channels to the HD PVR.

    Hmmmm.

    Patrick


    Attachments

    • hdpvr_channel_mapping.png
      84.5 KB

    mm1352000

    Retired Team Member
  • Premium Supporter
  • September 1, 2008
    21,577
    8,224
    Home Country
    New Zealand New Zealand
    The log files are very clear:
    [collapse]
    [2015-03-23 17:09:15,694] [Log ] [25 ] [INFO ] - Controller: find free card for channel 64 DVCBCN
    [2015-03-23 17:09:15,698] [Log ] [25 ] [INFO ] - Controller: find card for channel 64 DVCBCN
    [2015-03-23 17:09:16,108] [Log ] [25 ] [INFO ] - Controller: got 1 tuning details for 64 DVCBCN
    [2015-03-23 17:09:16,112] [Log ] [25 ] [INFO ] - Controller: channel #1 tv:64 DVCBCN Freq:0 Channel:64 Country:United States Tuner:Cable Video:confused:vhsInput1 Audio:confused:PDIFInput1
    [2015-03-23 17:09:16,113] [Log ] [25 ] [INFO ] - Controller: card:1 type:RadioWebStream is disabled
    [2015-03-23 17:09:16,115] [Log ] [25 ] [INFO ] - Controller: card:2 type:DvbIP is disabled
    [2015-03-23 17:09:16,236] [Log ] [25 ] [INFO ] - Controller: card:3 type:Analog channel not mapped
    [2015-03-23 17:09:16,239] [Log ] [25 ] [INFO ] - Controller: found 0 card(s) for channel
    [2015-03-23 17:09:16,240] [Log ] [25 ] [INFO ] - AdvancedCardAllocation.GetAvailableCardsForChannel took 541 msec
    [2015-03-23 17:09:16,242] [Log ] [25 ] [INFO ] - Controller: found 0 free card(s)
    [2015-03-23 17:09:16,243] [Log ] [25 ] [INFO ] - AdvancedCardAllocation.GetFreeCardsForChannel took 548 msec
    [2015-03-23 17:17:58,303] [Log ] [46 ] [INFO ] - Controller: find free card for channel 64 DVCBCN
    [2015-03-23 17:17:58,303] [Log ] [46 ] [INFO ] - Controller: find card for channel 64 DVCBCN
    [2015-03-23 17:17:58,305] [Log ] [46 ] [INFO ] - Controller: got 1 tuning details for 64 DVCBCN
    [2015-03-23 17:17:58,306] [Log ] [46 ] [INFO ] - Controller: channel #1 tv:64 DVCBCN Freq:0 Channel:64 Country:United States Tuner:Cable Video:confused:vhsInput1 Audio:confused:PDIFInput1
    [2015-03-23 17:17:58,306] [Log ] [46 ] [INFO ] - Controller: card:1 type:RadioWebStream is disabled
    [2015-03-23 17:17:58,306] [Log ] [46 ] [INFO ] - Controller: card:2 type:DvbIP is disabled
    [2015-03-23 17:17:58,307] [Log ] [46 ] [INFO ] - Controller: card:3 type:Analog channel not mapped
    [2015-03-23 17:17:58,308] [Log ] [46 ] [INFO ] - Controller: found 0 card(s) for channel
    [2015-03-23 17:17:58,308] [Log ] [46 ] [INFO ] - AdvancedCardAllocation.GetAvailableCardsForChannel took 4 msec
    [2015-03-23 17:17:58,308] [Log ] [46 ] [INFO ] - Controller: found 0 free card(s)
    [2015-03-23 17:17:58,309] [Log ] [46 ] [INFO ] - AdvancedCardAllocation.GetFreeCardsForChannel took 5 msec
    [/collapse]

    DVCBCN was not mapped/linked to the HD-PVR at the time you performed this test. I don't know if the situation is still the same.


    kpatch

    MP Donator
  • Premium Supporter
  • March 11, 2014
    52
    2
    Home Country
    Canada Canada
    I have been able to deal with the "No free card" issue...mostly. MP does not always recognize my HD PVR. When it does, I'm getting "program/channel not found."
    This behaviour is similar to a problem I was experiencing several weeks ago on my other MP system where there were issues with the IP address. I have attached my most recent Watchdog diagnostic dump.


    mm1352000

    Retired Team Member
  • Premium Supporter
  • September 1, 2008
    21,577
    8,224
    Home Country
    New Zealand New Zealand
    For an HD-PVR (or Colossus), "program/channel not found" often means that the inputs that your channels are requesting are incorrect.

    The log files tell me that your channels are configured for the s-video and S/PDIF inputs. Does that match what you've connected to your HD-PVR?

    [edit: The other thing that message can mean is that the HD-PVR is not receiving input from the thing you've connected to it (eg. set top box, gaming console...). Please check that too.]


    kpatch

    MP Donator
  • Premium Supporter
  • March 11, 2014
    52
    2
    Home Country
    Canada Canada
    The HD PVR displays without issues when I use the utility that shipped with it (i.e., TotalMedia EXtreme). Can I configure the inputs within MP?


    mm1352000

    Retired Team Member
  • Premium Supporter
  • September 1, 2008
    21,577
    8,224
    Home Country
    New Zealand New Zealand
    Can I configure the inputs within MP?
    In your case you'd configure them on the advanced options tab in the SchedulesDirect plugin. If the current settings are incorrect then you'll probably have to delete all channels so that the SD plugin can recreate them with correct settings. After that you'll have to map the channels to the HD-PVR again.


    kpatch

    MP Donator
  • Premium Supporter
  • March 11, 2014
    52
    2
    Home Country
    Canada Canada
    I changed the settings in the SD plugin and remapped the channels. I still get:
    - "no free card" when I just turn on TV
    - "program/channel not found" when I attempt to access the channel through the guide.

    I have also connected my HD PVR to a different USB port.

    I have attached the newest Watchdog dump.

    Patrick


    mm1352000

    Retired Team Member
  • Premium Supporter
  • September 1, 2008
    21,577
    8,224
    Home Country
    New Zealand New Zealand
    Hello again Patrick

    I changed the settings in the SD plugin and remapped the channels. I still get:
    ...
    - "program/channel not found" when I attempt to access the channel through the guide.
    It looks like your channels are still configured to use S-video and S/PDIF:
    [2015-03-27 16:18:42,135] [Log ] [13 ] [DEBUG] - card: user: kpatch:3:-1 tune tv:212 CFTO Freq:0 Channel:212 Country:United States Tuner:Cable Video:confused:vhsInput1 Audio:confused:PDIFInput1

    Like I said in my previous post: you have to delete all channels so that the SD plugin can recreate them with the correct settings. Simply changing the settings in the SD plugin won't make any difference.

    - "no free card" when I just turn on TV
    I see this again with DVBCN:
    [collapse]
    [2015-03-27 16:13:20,162] [Log ] [20 ] [INFO ] - Controller: find free card for channel 64 DVCBCN
    [2015-03-27 16:13:20,167] [Log ] [20 ] [INFO ] - Controller: find card for channel 64 DVCBCN
    [2015-03-27 16:13:20,173] [Log ] [20 ] [INFO ] - Controller: got 1 tuning details for 64 DVCBCN
    [2015-03-27 16:13:20,175] [Log ] [20 ] [INFO ] - Controller: channel #1 tv:64 DVCBCN Freq:0 Channel:64 Country:United States Tuner:Cable Video:confused:vhsInput1 Audio:confused:PDIFInput1
    [2015-03-27 16:13:20,177] [Log ] [20 ] [INFO ] - Controller: card:1 type:RadioWebStream is disabled
    [2015-03-27 16:13:20,179] [Log ] [20 ] [INFO ] - Controller: card:2 type:DvbIP is disabled
    [2015-03-27 16:13:20,263] [Log ] [20 ] [INFO ] - Controller: card:3 type:Analog channel not mapped
    [2015-03-27 16:13:20,266] [Log ] [20 ] [INFO ] - Controller: found 0 card(s) for channel
    [2015-03-27 16:13:20,267] [Log ] [20 ] [INFO ] - AdvancedCardAllocation.GetAvailableCardsForChannel took 100 msec
    [2015-03-27 16:13:20,269] [Log ] [20 ] [INFO ] - Controller: found 0 free card(s)
    [2015-03-27 16:13:20,270] [Log ] [20 ] [INFO ] - AdvancedCardAllocation.GetFreeCardsForChannel took 107 msec[/collapse]

    It's like you haven't changed anything at all.

    I have also connected my HD PVR to a different USB port.
    Okay... but that won't make any difference.
