[Approved] Allow absolute placement of scrollbar + assign width (1 Viewer)

[pilehave]

Background
A vertical scrollbar (GUIVerticalScrollbar) is automatically attached to any listcontrol (GUIListControl) or thumbcontrol (GUIThumbnailPanel) if the listcontrol/thumbcontrol contains more elements than can be fitted in the defined height, and the user has checked the "show special mouse controls (scrollbars, etc)" option in MP Config.

Problem
The scrollbar is absolutely positioned 5 pixel to the right of the control, and has an absolute width of 15 pixels. This means that:
- you cannot have a scrollbar to the left of the panel
- you cannot use a scrollbar wider than 15 pixels here, even though the scrollbar defined in references.xml may be wider or more narrow

Solution

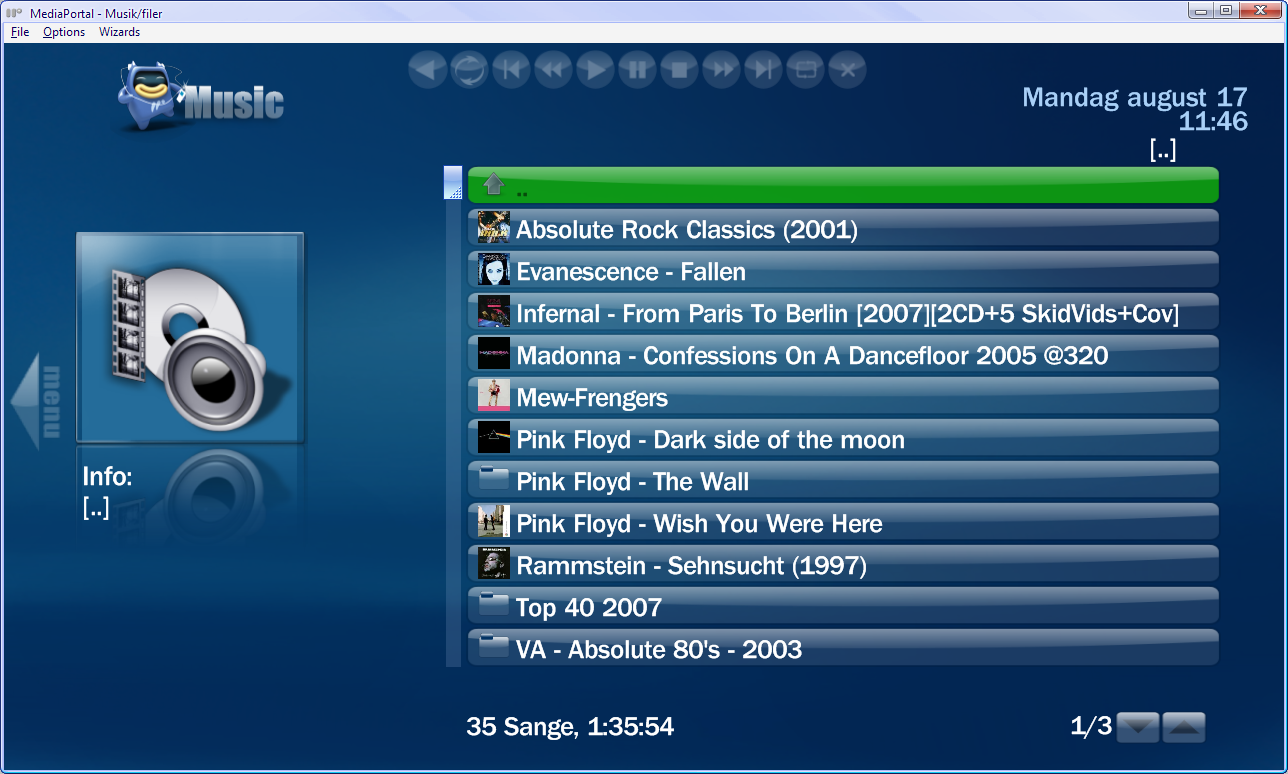

2 new XML-properties called <scrollbarXOff> and <scrollbarwidth> usable with any listcontrol and thumbcontrol. Default values are "0" and "15" so this will not affect existing skins. You can set a negative value on scrollbarXOff to move the control to the left, or a positive value to move it to the right.



[chemelli]

Sorry but no place for new features/changes in skin engine. Will consider it to after 1.1.0

Simone



[chemelli]

I state that I didn't check current code in 1.2.0.

But if it's not implemented can you please update the patch so that we can evaluate ?

Simone



[pilehave]

I state that I didn't check current code in 1.2.0.

But if it's not implemented can you please update the patch so that we can evaluate ?

Simone

Patch against current SVN attached. While testing it out, I found that the default skins (Blue3
and Blue3wide) are missing the properties for the scrollbar and the button in references.xml.

"default listcontrol" in this file should be updated with

    <scrollbarbg>bar_vert.png</scrollbarbg>
    <scrollbartop>mouse_left_vertical.png</scrollbartop>
    <scrollbarbottom>mouse_right_vertical.png</scrollbarbottom>

I have not had a chance to test the horizontal scrollbar, and normal and big icons may also be missing these properties. It may be intentional, but I think you should check with the rest of the team (Harley mainly?).

When I started skinning 1½ year ago, the scrollbars vere definately there when switched on in MP Config. Without the properties they are missing.



[pilehave]

Thinking of it, maybe references.xml should be kept clean as it is, and the facades should implement the extra attributes instead. Like in common.facade.recordings.xml and the other common.facade-files.



[catavolt]

AW: Allow absolute placement of scrollbar + assign width

AFAIK we decided do not use the scrollbars in B3 skins because main use is on HTPC with remote. But agree with you to have them in for the touch screen users



[pilehave]

Could this patch be considered to be added to SVN? It's already 15 months old



[SilentException]

Yes, patch seems good. Simple and efficient.

Edit: In SVN 26687.

Mantis: http://mantis.team-mediaportal.com/view.php?id=3144
Wiki updated!

Thanks for the patch!



[chemelli]

Edit: In SVN 26687.

Please tag thread accordly.

Simone



[pilehave]

Somewhere along with my other fixes to the scrollbars, I ended up with allowing the texture for the scrollbar-background to set the width. With this feature the scrollbarwidth property is not needed, as skinners should just create the background and the handles to the size he wants. These are then scaled and positioned along with the control it belongs to.

So, I now have this patch you can review for now or for after the Beta (I think it would be wise to wait).

:sorry: &
