Asus my cinema P-7131 help (1 Viewer)

[Gregman]

Hello!

I've got a big problem and since I'm new to this scene, I would really appreciate it if you helped me out a little.
I have a Asus my cinema P-7131 tv-tuner (analog) , and I just can't get it to work with Mediaportal.
I've installed a lot of new drivers and updates, but still no luck.

  <capturecard commercialname="ASUSTek Silicon BDA Video Capture" capturename="713x BDA Analog Capture" devid="ven_1131&amp;dev_7133&amp;subsys_48451043&amp;rev_f0">
    <capabilities tv="true" radio="true" mpeg2="true" mce="true" sw="false" bda="false"></capabilities>
    <tv>
      <interface cat="capture" video="0" audio="1"></interface>
      <filters>
        <filter cat="tvtuner" name="713x BDA Analog Tv Tuner" checkdevice="true"></filter>
        <filter cat="tvaudio" name="713x BDA Analog TV Audio" checkdevice="true"></filter>
        <filter cat="crossbar" name="713x BDA Analog Xbar" checkdevice="true"></filter>
        <filter cat="capture" name="713x BDA Analog Capture" checkdevice="true"></filter>
        <filter cat="videncoder" name="Video Mixing Renderer 9" checkdevice="false"></filter>
        <filter cat="audencoder" name="DirectSound: SB Live!-waveapparaat" checkdevice="false"></filter>
      </filters>
      <connections>
        <connection sourcefilter="tvtuner" sourcepin="0" sinkfilter="crossbar" sinkpin="%tvtuner%"></connection>
        <connection sourcefilter="tvtuner" sourcepin="1" sinkfilter="tvaudio" sinkpin="0"></connection>
        <connection sourcefilter="tvaudio" sourcepin="0" sinkfilter="crossbar" sinkpin="%audiotuner%"></connection>
        <connection sourcefilter="crossbar" sourcepin="0" sinkfilter="capture" sinkpin="0"></connection>
        <connection sourcefilter="crossbar" sourcepin="1" sinkfilter="capture" sinkpin="1"></connection>
        <connection sourcefilter="capture" sourcepin="0" sinkfilter="videncoder" sinkpin="0"></connection>
        <connection sourcefilter="capture" sourcepin="1" sinkfilter="audencoder" sinkpin="0"></connection>
      </connections>
    </tv>
  </capturecard>

The moniker is right.
I've put in the new name the latest driver gave the card in the devicemanager.
I've tried everything, but I just do not have enough knowledge about this to determine where I mess up.

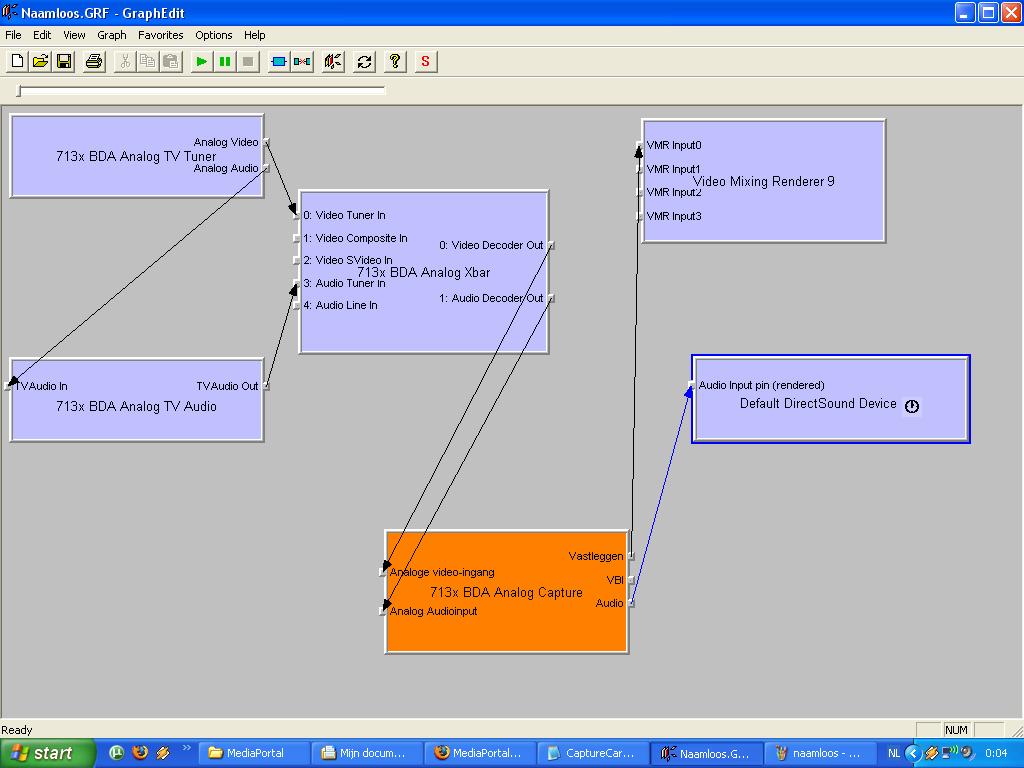

Please check the screen, It's a working graph in grapheditor [ both audio and video work]

I would really appreciate if someone could help me out.



[Gregman]

Ohw yeah, I have the latest version of Mediaportal.

Maybe someone could upload the .xml definitions file? [ with the correct settings]
Perhaps I have messed even that up.( a lot of copy and pasting makes it worse)



[Spragleknas]

Another "SW-card does not work"

It's been a long time since i fiddled with Software encoding cards, but I remember that I had to install PowerCinema to get it to work, due to SW-encoders.

It seems that misterd might be on the verge of saving the day for you SW-card user: https://forum.team-mediaportal.com/planning_improvements_analog_cards-t33630.html

Sorry that I could not be of more help.



[Gregman]

Still thank you very much for your quick reply,

and I have PowerCinema 5 Installed , but it is much to slow and is less advanced than mediaportal.



[misterd]

Hi gregman,
there are some errors in your definitions. The main problem is that the software encoder is missing.
Here is an updated version:

  <capturecard commercialname="ASUSTek Silicon BDA Video Capture" capturename="713x BDA Analog Capture" devid="ven_1131&amp;dev_7133&amp;subsys_48451043&amp;rev_f0">
    <capabilities tv="true" radio="true" mpeg2="true" mce="false" sw="false" bda="false"></capabilities>
    <tv>
      <interface cat="mkux" video="" audio="" mpeg2="0"></interface>
      <filters>
        <filter cat="tvtuner" name="713x BDA Analog Tv Tuner" checkdevice="true"></filter>
        <filter cat="tvaudio" name="713x BDA Analog TV Audio" checkdevice="true"></filter>
        <filter cat="crossbar" name="713x BDA Analog Xbar" checkdevice="true"></filter>
        <filter cat="capture" name="713x BDA Analog Capture" checkdevice="true"></filter>
        <filter cat="videncoder" name="%videoencoder%" checkdevice="false"></filter>
        <filter cat="audencoder" name="%audioencoder%" checkdevice="false"></filter>
        <filter cat="mux" name="%mpegmux%" checkdevice="false"></filter>
      </filters>
      <connections>
        <connection sourcefilter="tvtuner" sourcepin="0" sinkfilter="crossbar" sinkpin="%tvtuner%"></connection>
        <connection sourcefilter="tvtuner" sourcepin="1" sinkfilter="tvaudio" sinkpin="0"></connection>
        <connection sourcefilter="tvaudio" sourcepin="0" sinkfilter="crossbar" sinkpin="%audiotuner%"></connection>
        <connection sourcefilter="crossbar" sourcepin="0" sinkfilter="capture" sinkpin="0"></connection>
        <connection sourcefilter="crossbar" sourcepin="1" sinkfilter="capture" sinkpin="1"></connection>
        <connection sourcefilter="capture" sourcepin="0" sinkfilter="videncoder" sinkpin="0"></connection>
        <connection sourcefilter="capture" sourcepin="2" sinkfilter="audencoder" sinkpin="0"></connection>
        <connection sourcefilter="videncoder" sourcepin="0" sinkfilter="mux" sinkpin="0"></connection>
        <connection sourcefilter="audencoder" sourcepin="0" sinkfilter="mux" sinkpin="1"></connection>
      </connections>
    </tv>
  </capturecard>

Here is also a link to the wiki, where the supported encoders are list: http://wiki.team-mediaportal.com/UserGuides/SW-Cards_setup
If you have a different encoder than you have to replace %videncoer, %audencoder and/or %mpegmux.
The encoder is missing in your picture, because it is only needed to get timeshifting and recording working in MP/TvServer.

MisterD



[Gregman]

Hi, MisterD

Thank you very much for this, I will test this out as soon as possible.
However the graph worked for me, so I think its kind of strange (and I was in doubt of these encoders, wheter they should be included or not)

I wil test this out,

Thanks for your reply

Gregman



[Gregman]

My log file



[misterd]

There are no informations in the log file. You have to the configuration tool, try to add the card and than post the configuration.log here.

MisterD



[Gregman]

whoops, again



[misterd]

It seems that your CaptureCardDefinitions.xml is corrupted.
The file must have the following layout:

<?xml version="1.0" encoding="UTF-8"?>
<capturecards>
   <capturecard ....
   </capturecard>
   ....
   ....
   ....
   <capturecard ....
   </capturecard>
</capturecards>

You could also download the latest version from the svn: https://mediaportal.svn.sourceforge...l/MediaPortal.Base/CaptureCardDefinitions.xml
And add your own definitions before the last line.

MisterD
