Canal digital DVB-S2 tuning problems / Twinhan (1 Viewer)

[MZWiZard]

TV-Server Version:
MediaPortal Version: 0.2.3
MediaPortal Skin: bluetwo wide
Windows Version: XP SP2 - All latest service packs
CPU Type: Athlon 64 x2 4200+ @ 2,4GHz
HDD: WDC 60GB, Maxtor 80GB, both 7200/8MB
Memory: 2048 MB DDR400 CAS 2,5-3-3-8
Motherboard: Asus A8N-CSM
Motherboard Chipset: NForce 430
Motherboard Bios: Asus Bios 1007
Video Card: Geforce 8800GT
Video Card Driver: 169.21
Sound Card: Realtek HD
Sound Card AC3: Realtek HD
Sound Card Driver:
1. TV Card: Azurewave/Twinhan AD-400 DVB-S2 CI
1. TV Card Type: DVB-S2
1. TV Card Driver: 1.0.5.9
2. TV Card:
2. TV Card Type:
2. TV Card Driver:
3. TV Card:
3. TV Card Type:
3. TV Card Driver:
4. TV Card:
4. TV Card Type:
4. TV Card Driver:
MPEG2 Video Codec: Nvidia Purevideo v2.23
X264 Video Codec: PowerDVD 7.3 / CoreAVC 1.600 pro
MPEG2 Audio Codec: Nvidia Purevideo v2.23
Satelite/CableTV Provider: Canal Digital
HTPC Case: Modified Closet
Cooling: Custom watercooling of cpu, chipset and video chips
Power Supply: Fortron 250W
Remote: Microsoft MCE, type 2
TV: Diboss 46" - running 1920x1080i
TV - HTPC Connection: DVI to HDMI

I have problems tuning DVB-S2 channels on Thor 0,8. I have a Conax v4.00e CA module and a working canaldigital card with subscription for everything. HDTV works fine in their own box, as in DVBviewer. All other paychannels and free channels work. I tried various settings for modulation etc. and found I'm almost there when choosing EDIT: 8psk - Pilot On - Rolloff 0.35.

Here is the log when trying to tune in a HDTV channel:


04:04:56.812500 [16]: Controller: StartTimeShifting Canal + Film HD 1212
2007-12-11 04:04:56.828125 [16]: Controller: find free card for channel Canal + Film HD
2007-12-11 04:04:56.828125 [16]: Controller: got 1 tuning details for Canal + Film HD
2007-12-11 04:04:56.828125 [16]: Controller: channel #1 DVBS:tv: Canal + Film HD Freq:11421000 ONID:70 TSID:14 SID:3306 PMT:FFFFFFFF FTA:False LCN:601 SymbolRate:25000 Modulation:Mod8psk Polarisation:LinearH InnerFecRate:Rate2_3 DisEqc:None band:Universal PilotilotOn RollOff:RollOff_25
2007-12-11 04:04:56.828125 [16]: Controller: card:3 type:RadioWebStream cannot tune to channel
2007-12-11 04:04:56.828125 [16]: Controller: card:8 typevbS is available priority:1 #users:0 same transponder:False
2007-12-11 04:04:56.828125 [16]: Controller: card:9 type:Analog cannot tune to channel
2007-12-11 04:04:56.828125 [16]: Controller: found 1 available
2007-12-11 04:04:56.828125 [16]: card: CardTune 8 Canal + Film HD stue:8:-1
2007-12-11 04:04:56.843750 [16]: card:Tune 8 to Canal + Film HD
2007-12-11 04:04:56.843750 [16]: card:user:stue:8:-1 tune DVBS:tv: Canal + Film HD Freq:11421000 ONID:70 TSID:14 SID:3306 PMT:FFFFFFFF FTA:False LCN:601 SymbolRate:25000 Modulation:Mod8psk Polarisation:LinearH InnerFecRate:Rate2_3 DisEqc:None band:Universal PilotilotOn RollOff:RollOff_25
2007-12-11 04:04:56.843750 [16]: dvbs: TuneVBS:tv: Canal + Film HD Freq:11421000 ONID:70 TSID:14 SID:3306 PMT:FFFFFFFF FTA:False LCN:601 SymbolRate:25000 Modulation:Mod8psk Polarisation:LinearH InnerFecRate:Rate2_3 DisEqc:None band:Universal PilotilotOn RollOff:RollOff_25
2007-12-11 04:04:56.843750 [16]: LNB low:9750 hi:10600 switch:11700
2007-12-11 04:04:56.843750 [16]: Trying to set DVB-S2 modulation...
2007-12-11 04:04:56.859375 [16]: Twinhan DVB-S2 modulation set to:Mod8Vsb
2007-12-11 04:04:56.859375 [16]: Twinhan DVB-S2 Pilot set toilotOn
2007-12-11 04:04:56.859375 [16]: Twinhan DVB-S2 RollOff set to:RollOff_25
2007-12-11 04:04:56.859375 [16]: Twinhan DVB-S2 fec set to:Rate2_3
2007-12-11 04:04:56.859375 [16]: Channel modulation is set to Mod8Vsb
2007-12-11 04:04:56.859375 [16]: Channel FECRate is set to Rate2_3
2007-12-11 04:04:56.859375 [16]: Twinhan: SetLnb diseqc port:0 22khz:1 low:9750 hi:10600 switch:11700 power:True
2007-12-11 04:04:56.859375 [16]: TwinHan SetLNB ok 0x0
2007-12-11 04:04:57.062500 [16]: TwinHan DiSEqC cmd:4 0 0 0 E0 10 38 FE 0 0 0 0 0 0 0 0 succeeded
2007-12-11 04:04:57.156250 [16]: dvbubmiting tunerequest Channel:Canal + Film HD subChannel:-1
2007-12-11 04:04:57.156250 [16]: dvb:Getting new subchannel
2007-12-11 04:04:57.171875 [16]: dvb:GetNewSubChannel:0 #0
2007-12-11 04:04:57.171875 [16]: dvbubmit tunerequest size:1 new:0
2007-12-11 04:04:57.171875 [16]: subch:0 OnBeforeTune
2007-12-11 04:04:57.437500 [16]: subch:0 OnAfterTune
2007-12-11 04:04:57.437500 [16]: subch:0 OnGraphStart
2007-12-11 04:04:57.453125 [16]: subch0:RunGraph
2007-12-11 04:04:57.453125 [16]: dvb:rungraph
2007-12-11 04:05:00.375000 [16]: subch:0 OnGraphStart
2007-12-11 04:05:00.375000 [16]: subch:0 RunGraph: already running
2007-12-11 04:05:00.375000 [16]: subch:0 SetupPmtGrabberid FFFFFFFF sid:CEA
2007-12-11 04:05:00.375000 [16]: card: tuned user:stue subchannel:0
2007-12-11 04:05:00.375000 [16]: user:stue add
2007-12-11 04:05:04.812500 [16]: card: Tuner locked:True signal strength:63 signal quality:96
2007-12-11 04:05:04.828125 [16]: card2:stue 8 0
2007-12-11 04:05:04.828125 [16]: control1:stue 8 0
2007-12-11 04:05:04.828125 [16]: control2:stue 8 0
2007-12-11 04:05:04.828125 [16]: Controller: delete timeshift files D:\Timeshift2\live8-0.ts
2007-12-11 04:05:04.843750 [16]: Controller: delete D:\Timeshift2\live8-0.ts.tsbuffer
2007-12-11 04:05:04.843750 [16]: Controller: delete D:\Timeshift2\live8-0.ts.tsbuffer1.ts
2007-12-11 04:05:04.843750 [16]: card: StartTimeShifting 8 D:\Timeshift2\live8-0.ts
2007-12-11 04:05:04.859375 [16]: card: WaitForUnScrambledSignal
2007-12-11 04:05:04.859375 [16]: card: return not scrambled
2007-12-11 04:05:04.859375 [16]: subch:0 SetTimeShiftFileName:\Timeshift2\live8-0.ts
2007-12-11 04:05:04.875000 [16]: subch:0 SetTimeShiftFileName no pmt received yet
2007-12-11 04:05:04.875000 [16]: card: WaitForTimeShiftFile
2007-12-11 04:05:04.875000 [16]: card: WaitForUnScrambledSignal
2007-12-11 04:05:04.890625 [16]: card: return not scrambled
2007-12-11 04:05:19.921875 [16]: card: timeshifting fileSize:0 TIMEOUT
2007-12-11 04:05:19.921875 [16]: card: remove user:stue sub:0
2007-12-11 04:05:19.921875 [16]: user:stue remove
2007-12-11 04:05:19.937500 [16]: card: free subchannel sub:0
2007-12-11 04:05:19.937500 [16]: dvb:FreeSubChannel:1 #0
2007-12-11 04:05:19.937500 [16]: subch:0 Decompose()
2007-12-11 04:05:19.937500 [16]: subch:0 StopTimeshifting()
2007-12-11 04:05:19.984375 [16]: dvb:FreeAllSubChannels:
2007-12-11 04:05:19.984375 [16]: dvbtopGraph
2007-12-11 04:05:20.500000 [16]: dvb:FreeAllSubChannels:


I would appreciate some help, as I've searched around for several days.

Jesper



[MZWiZard]

Anyone? Am I just missing a stupid little thing? Anything I can do to make it easier to help me? I am really lost - I love MP and I have always recommended it to anyone. Not being able to tune DVB-S2 for the last 10 days is wearing out my WAF (Because of the streaming to the bedroom she needs to fall asleep to)

Funny thing is, I am able to tune just fine in DVBviewer - but I dont wanna leave mp



[MZWiZard]

Bumping this - I tried everything I could think of. All regular channels, scrambled or not works perfectly. But no S2 channels. Card doesnt pick them up when scanning nor when entered manually. Is this really not fixable in some way?

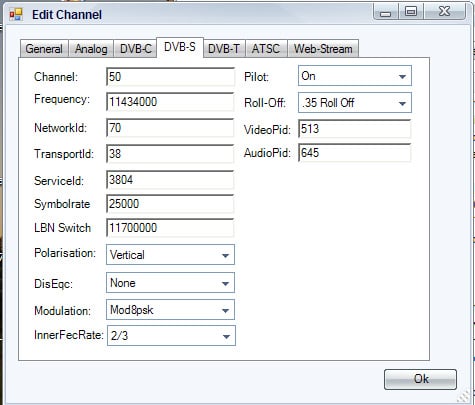

Screenshot attached of the filled in "Discovery HD" details.

In the log, when trying to tune that channel it says this:

2008-01-03 14:55:38.140625 [12]: Controller: StartTimeShifting Discovery HD 22
2008-01-03 14:55:38.156250 [12]: Controller: find free card for channel Discovery HD
2008-01-03 14:55:38.156250 [12]: Controller: got 1 tuning details for Discovery HD
2008-01-03 14:55:38.156250 [12]: Controller: channel #1 DVBS:tv: Discovery HD Freq:11434000 ONID:70 TSID:38 SID:3804 PMT:FFFFFFFF FTA:False LCN:50 SymbolRate:25000 Modulation:Mod8psk Polarisation:LinearV InnerFecRate:Rate2_3 DisEqc:None band:Universal PilotilotOn RollOff:RollOff_35
2008-01-03 14:55:38.156250 [12]: Controller: card:1 typevbS is available priority:-97 #users:1 same transponder:False
2008-01-03 14:55:38.156250 [12]: Controller: card:2 typevbT is disabled
2008-01-03 14:55:38.156250 [12]: Controller: card:3 type:RadioWebStream is disabled
2008-01-03 14:55:38.171875 [12]: Controller: found 1 available
2008-01-03 14:55:38.171875 [12]: card: CardTune 1 Discovery HD setuptv:1:-1
2008-01-03 14:55:38.171875 [12]: card:Tune 1 to Discovery HD
2008-01-03 14:55:38.171875 [12]: card:user:setuptv:1:-1 tune DVBS:tv: Discovery HD Freq:11434000 ONID:70 TSID:38 SID:3804 PMT:FFFFFFFF FTA:False LCN:50 SymbolRate:25000 Modulation:Mod8psk Polarisation:LinearV InnerFecRate:Rate2_3 DisEqc:None band:Universal PilotilotOn RollOff:RollOff_35
2008-01-03 14:55:38.187500 [12]: card: to different transponder
2008-01-03 14:55:38.187500 [12]: stop subchannel:0 user:epg
2008-01-03 14:55:38.187500 [12]: dvb:FreeSubChannel:2 #0
2008-01-03 14:55:38.187500 [12]: subch:0 Decompose()
2008-01-03 14:55:38.203125 [12]: user:epg remove
2008-01-03 14:55:38.203125 [12]: dvbs: TuneVBS:tv: Discovery HD Freq:11434000 ONID:70 TSID:38 SID:3804 PMT:FFFFFFFF FTA:False LCN:50 SymbolRate:25000 Modulation:Mod8psk Polarisation:LinearV InnerFecRate:Rate2_3 DisEqc:None band:Universal PilotilotOn RollOff:RollOff_35
2008-01-03 14:55:38.203125 [12]: LNB low:9750 hi:10600 switch:11700
2008-01-03 14:55:38.203125 [12]: Trying to set DVB-S2 modulation...
2008-01-03 14:55:38.218750 [12]: Twinhan DVB-S2 modulation set to:Mod8Vsb
2008-01-03 14:55:38.218750 [12]: Twinhan DVB-S2 Pilot set toilotOn
2008-01-03 14:55:38.218750 [12]: Twinhan DVB-S2 RollOff set to:RollOff_35
2008-01-03 14:55:38.218750 [12]: Twinhan DVB-S2 fec set to:Rate2_3
2008-01-03 14:55:38.218750 [12]: Channel modulation is set to Mod8Vsb
2008-01-03 14:55:38.218750 [12]: Channel FECRate is set to Rate2_3
2008-01-03 14:55:38.218750 [12]: Twinhan: SetLnb diseqc port:0 22khz:1 low:9750 hi:10600 switch:11700 power:True
2008-01-03 14:55:38.234375 [12]: TwinHan SetLNB ok 0x0
2008-01-03 14:55:38.640625 [12]: TwinHan DiSEqC cmd:4 0 0 0 E0 10 38 FC 0 0 0 0 0 0 0 0 succeeded
2008-01-03 14:55:38.750000 [12]: dvbubmiting tunerequest Channeliscovery HD subChannel:-1
2008-01-03 14:55:38.750000 [12]: dvb:Getting new subchannel
2008-01-03 14:55:38.750000 [12]: dvb:GetNewSubChannel:1 #2
2008-01-03 14:55:38.765625 [12]: dvbubmit tunerequest size:2 new:2
2008-01-03 14:55:38.765625 [12]: subch:2 OnBeforeTune
2008-01-03 14:55:52.906250 [12]: subch:2 OnAfterTune
2008-01-03 14:55:52.906250 [12]: subch:2 OnGraphStart
2008-01-03 14:55:52.906250 [12]: subch:2 RunGraph: already running
2008-01-03 14:55:52.906250 [12]: subch:2 SetupPmtGrabberid FFFFFFFF sid:EDC
2008-01-03 14:55:52.906250 [12]: card: tuned user:setuptv subchannel:2
2008-01-03 14:55:52.906250 [12]: user:setuptv add
2008-01-03 14:55:53.406250 [12]: card: Tuner locked:True signal strength:64 signal quality:96
2008-01-03 14:55:53.421875 [12]: card2:setuptv 1 2
2008-01-03 14:55:53.421875 [12]: control1:setuptv 1 2
2008-01-03 14:55:53.421875 [12]: control2:setuptv 1 2
2008-01-03 14:55:53.421875 [12]: Controller: delete timeshift files E:\Timeshift\live1-2.ts
2008-01-03 14:55:53.421875 [12]: card: StartTimeShifting 1 E:\Timeshift\live1-2.ts
2008-01-03 14:55:53.421875 [12]: card: WaitForUnScrambledSignal
2008-01-03 14:55:53.437500 [12]: card: return not scrambled
2008-01-03 14:55:53.437500 [12]: subch:2 SetTimeShiftFileName:E:\Timeshift\live1-2.ts
2008-01-03 14:55:53.437500 [12]: subch:2 SetTimeShiftFileName no pmt received yet
2008-01-03 14:55:53.437500 [12]: card: WaitForTimeShiftFile
2008-01-03 14:55:53.437500 [12]: card: WaitForUnScrambledSignal
2008-01-03 14:55:53.453125 [12]: card: return not scrambled
2008-01-03 14:56:13.468750 [12]: card: timeshifting fileSize:0 TIMEOUT
2008-01-03 14:56:13.468750 [12]: card: remove user:setuptv sub:2
2008-01-03 14:56:13.468750 [12]: user:setuptv remove
2008-01-03 14:56:13.468750 [12]: card: free subchannel sub:2
2008-01-03 14:56:13.484375 [12]: dvb:FreeSubChannel:2 #2
2008-01-03 14:56:13.484375 [12]: subch:2 Decompose()
2008-01-03 14:56:13.484375 [12]: subch:2 StopTimeshifting()
2008-01-03 14:56:13.531250 [12]: dvb:FreeAllSubChannels:
2008-01-03 14:56:13.546875 [12]: subch:1 Decompose()
2008-01-03 14:56:13.546875 [12]: subch:1 StopTimeshifting()
2008-01-03 14:56:13.593750 [12]: dvbtopGraph

I highlighted a line, where I think it goes wrong?



[Arn01805]

Try latest SVN of TV-Server. It has user configurable timeout values for decrypting and timeshift buffer and some improvements when no video/no audio detected



[MZWiZard]

This WAS the latest svn, just downloaded yesterday. I did try to increase time to 20 seconds for it to pick up the audio/video. Still no go. Should I try to increase time further or do you have other suggestions, please?



[Arn01805]

I'm afraid S2 support is only available for hauppage and FireDTV not for Azurewave/Twinhan DVB-S2 CI, you did enable the S2 settings in TV-Server management console?

In TV-Server management console I read: Pilot and Roll-off settings for DVB-S2 tuning (FireDTV and Hauppauge only)



[MZWiZard]

Yes sir i did - I also tried without, just to make sure. In my log you would also see that I enabled pilot and roll-off manually:

2008-01-03 14:55:38.218750 [12]: Twinhan DVB-S2 Pilot set toilotOn
2008-01-03 14:55:38.218750 [12]: Twinhan DVB-S2 RollOff set to:RollOff_35

Those settings are known to work in other programs, and if this tells anything, then it seems like the tuner is locked correct on channel:

2008-01-03 14:55:53.406250 [12]: card: Tuner locked:True signal strength:64 signal quality:96

Thanks for suggesting, though I'm still unable to see DVB-S2




EDIT: Forgot to mention, that first time I enter channel details manually in tvserver, it somehow changes fields for the values next time I look. For example, when I enter 513 as video stream and 645 for audio stream, save and close, the next time I look those values have switched fields, so that video gets 645 and audio 513? It also happens to modulation type - when I say 8psk next time it is 16qam?

After a couple of times of re-entering, settings seem to stick though in the log it still says "Mod8Vsb" - dunno if thats correct?

This was with a first time install of every part of tvservice, including MS MySQL2005.



[Arn01805]

Sorry, I'm out of suggestions. I'm afraid it's due to the fact that your card isn't supported and it's DBA driver use a slightly different way to receive the streams. I'm not a programmer in this kind a things so I can't tell much about this.

For your settings to stick, I would check in the database-table with the management console to see if the settings are commited right.
