DIY TV Lift

Discussion in 'Displays' started by ichessblumen, June 16, 2011.

  1. ichessblumen
    • Premium Supporter

    ichessblumen MP Donator

    Joined:
    November 21, 2006
    Messages:
    456
    Likes Received:
    18
    Ratings:
    +18 / 0
    Home Country:
    Germany Germany
    Show System Specs
    Hello there,

    just want to show you how to hide your TV within a cabinet or other diy-boxes.

    Main thing is a 24" linear actuator from firgelliauto.co.uk ( or if u r from overseas firgelliauto.com).has built in end-switches.
    - a linear guide rail (heavy duty) , mine's from auszugschienen24.de
    - 65x35x2,5 mm aluminum u-profile ( or any other size fits your application)
    - 12 Volts / 2-3 A
    - a commersial tv holder fits your VESA specification
    - some screws
    - timber, or a cabinet.... and here we go.
    - if needed a rf-remote control for up and down ( two relays for change of the motor direction)...diy-set from pollin.de

    I use MDF for the cabinet and then the same fabric my couch has. so this thing will be hidden at the end of my couch.

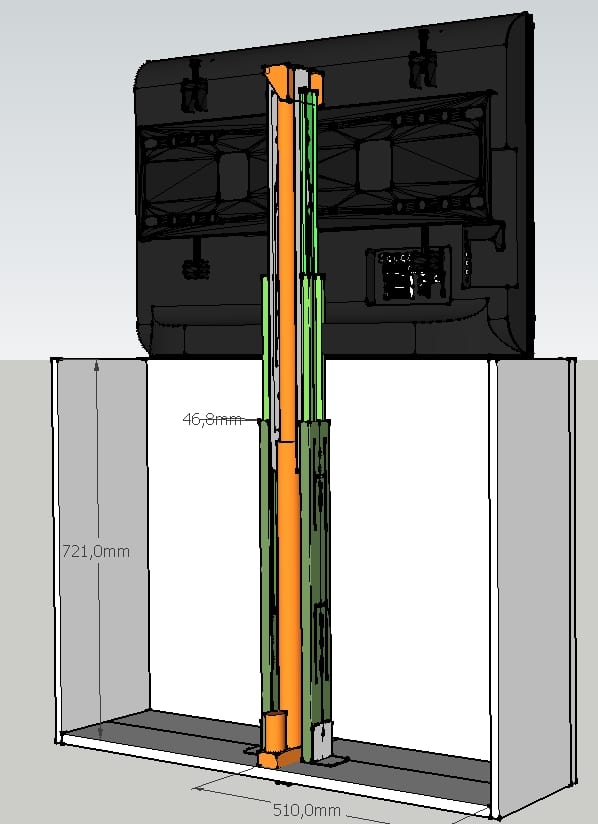

    some puictures from planning and the actual status. atm ist's all running. the actuator can handle 50 kgs ( dunno how much lbs are this).



    tbc
    cheers
    ieb


    Attached Files:

    • tvlift2.jpg
      File size:
      148.5 KB
      Uploaded:
      June 16, 2011
      Views:
      1,377
    • TVlift1.jpg
      File size:
      192.5 KB
      Uploaded:
      June 16, 2011
      Views:
      1,653
    • tvlift3.jpg
      File size:
      240.3 KB
      Uploaded:
      June 16, 2011
      Views:
      1,339
    • Like Like x 1
  2. Google AdSense Guest Advertisement



    to hide all adverts.
  3. Jay_UK
    • Team MediaPortal

    Jay_UK Test Group

    Joined:
    October 6, 2009
    Messages:
    1,781
    Likes Received:
    250
    Occupation:
    Enterprise Architect
    Location:
    Derby
    Ratings:
    +271 / 0
    Home Country:
    United Kingdom United Kingdom
    Show System Specs
    nice :)

    J.

  4. ichessblumen
    • Premium Supporter

    ichessblumen MP Donator

    Joined:
    November 21, 2006
    Messages:
    456
    Likes Received:
    18
    Ratings:
    +18 / 0
    Home Country:
    Germany Germany
    Show System Specs
    AW: DIY TV Lift

    thanks Jay_UK :)

    Meanwhile the fabric showed up here and I started with the cramping job. Unfortunately I ran out of cramps for my stapler, so I've got to go to the diy-superstore to buy more.

    The connecting plate is ready and will be mounted on the backplate of the cabinet.


    Attached Files:

    • TVlift4.jpg
      File size:
      160.9 KB
      Uploaded:
      June 17, 2011
      Views:
      410
  5. ichessblumen
    • Premium Supporter

    ichessblumen MP Donator

    Joined:
    November 21, 2006
    Messages:
    456
    Likes Received:
    18
    Ratings:
    +18 / 0
    Home Country:
    Germany Germany
    Show System Specs
    AW: DIY TV Lift

    here we go...it's ready. attched some pics of the building-process. a video follows.


    Attached Files:

    • tvlift5.jpg
      File size:
      152.9 KB
      Uploaded:
      June 17, 2011
      Views:
      818
    • tvlift6.jpg
      File size:
      170.1 KB
      Uploaded:
      June 17, 2011
      Views:
      794
    • tvlift7.jpg
      File size:
      209.7 KB
      Uploaded:
      June 17, 2011
      Views:
      18,913
    • tvlift8.jpg
      File size:
      124.3 KB
      Uploaded:
      June 17, 2011
      Views:
      815
    • tvlift9.jpg
      File size:
      155.7 KB
      Uploaded:
      June 17, 2011
      Views:
      866
    • tvlift10.jpg
      File size:
      152.5 KB
      Uploaded:
      June 17, 2011
      Views:
      788
  6. ichessblumen
    • Premium Supporter

    ichessblumen MP Donator

    Joined:
    November 21, 2006
    Messages:
    456
    Likes Received:
    18
    Ratings:
    +18 / 0
    Home Country:
    Germany Germany
    Show System Specs
  7. Mar

    Mar New Member

    Joined:
    January 22, 2017
    Messages:
    3
    Likes Received:
    0
    Ratings:
    +0 / 0
    Home Country:
    United Kingdom United Kingdom
    Hey this might be a long shot but your project is the closest thing I could find to using a tubular linear actuator and incorporating it into a tv lift. I'm having a hell of a time trying to find that linear rail that you have to support the actuator. Where did you get that?

    Also great job on the lift, i love it. Hows it holding up all these years later?

  8. ichessblumen
    • Premium Supporter

    ichessblumen MP Donator

    Joined:
    November 21, 2006
    Messages:
    456
    Likes Received:
    18
    Ratings:
    +18 / 0
    Home Country:
    Germany Germany
    Show System Specs
    Hey Mar,

    Thanks, and good to know that this thing is still a source of inspiration.
    I am not quite sure what do you mean with " the linear rail that supports the actuator" ? If I get you right, then you talk about the drawer slides attached to a u-shaped aluminun profile, right? That's diy. The profile is from the local diy-superstore. OBI.

    Hope that'll help.

    Cheers.
    ieb

  9. Mar

    Mar New Member

    Joined:
    January 22, 2017
    Messages:
    3
    Likes Received:
    0
    Ratings:
    +0 / 0
    Home Country:
    United Kingdom United Kingdom
    Hey ieb!

    Yes this was the best diy solution I could find to using a standard (i.e cheaper) linear actuator.

    hahah yes thats exactly what I'm talking about. After a couple days of searching the dark corners of the internet trying to find this "extending aluminum profile" I spent some time looking at your pictures for clues of where to look. Then it finally hit me, along with reading you initial post a few times that you pieced it together. After i realized that i was really impressed and SO relieved that its possible to put this together with a few diy parts.

    I managed to find an appropriate aluminum channel on ebay that delivers locally, but as far as the drawer slides did you use anything special? or just a standard set of ball bearing slides that extend (at least) the stroke of the actuator?

    Also in regards to the drawer slides, If my stroke is 550mm (total extended length 1205mm) will i be ok just getting slides that are around 5-600mm in length? Im having a hard time with the slides because my local sites dont show the extended length of the slide - im hoping its just double if they are fully extending.

    Thank you so much for responding after all this time.

  10. ichessblumen
    • Premium Supporter

    ichessblumen MP Donator

    Joined:
    November 21, 2006
    Messages:
    456
    Likes Received:
    18
    Ratings:
    +18 / 0
    Home Country:
    Germany Germany
    Show System Specs
    Hi Mar,

    Glad to hear that you finally found a supply source for the alloy profile.

    I use a standard ball bearing drawer slide matching the extended length of the stroke. Usually the extended length of drawer slides are at least double the unextended lenghth. Then u are on the safe side anyway.
    May I ask where are you from having this challenge to find and order the pieces?

    And yes, my rig is still running. No prob at all after 6 years.

    Have fun mate and please post yours once u're ready.

    Cheers.
    ieb

  11. Mar

    Mar New Member

    Joined:
    January 22, 2017
    Messages:
    3
    Likes Received:
    0
    Ratings:
    +0 / 0
    Home Country:
    United Kingdom United Kingdom
    Im in the UK, but the sites I'm looking at for some reason dont tell you what the extended length (of a full extension) slide are, I would assume its double as you mentioned but just wanted to make sure. The stroke of my actuator in 600mm, with a total extended length of 1305. I'm assuming when im measuring for the slide I can exclude the length of the actual actuator body (105mm)? This would make it simple as 600mm slides are easy to find, though I do have a little wiggle room and could get a 650mm to be safe.

    Wow thats great to hear, it seems I am getting a similar actuator as yours. The cheapest ones I could find were from China (as they get into the hundreds of £££ here) and aside from the long time to receive im happy to hear it has a good life.

    And again thanks for helping me out, made some good tractions in my plans and am losing sleep as i cant wait to get the pieces here and started! I will post as soon as I'm done.
