MediaPortal Version: V0.2.3.0
MediaPortal Skin: Monochrome
1. TV Card: Pinnacle PCTV Hybrid Stick Pro [320e]
1. TV Card Type: USB
I was wondering I would be nerd enough to get my PCTV Hybrid Pro Stick (320e) to work with MediaPortal. I worked to the existing threads in the forum and tried the thing with GraphEdit.

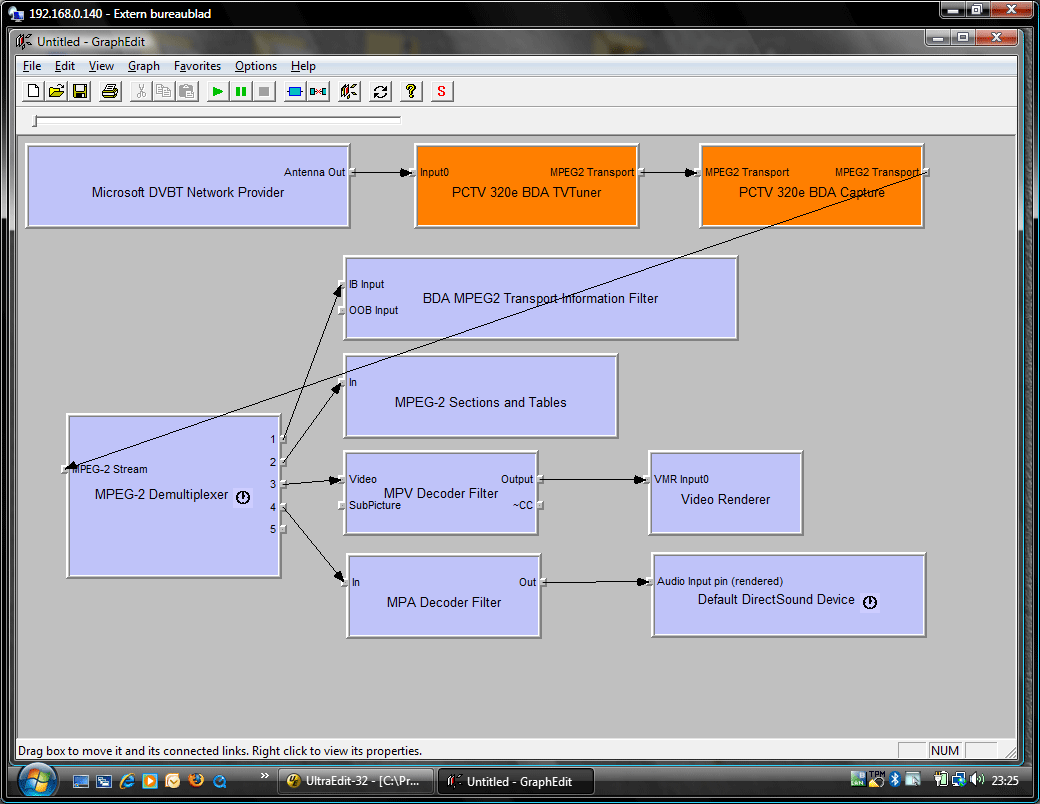

The 320e can do as well as Cable as Terrestial (mmz how do I spell that) but when I choose DVBC it couldn't connect to the other elements in GraphEdit so I went for the DVBT filter instead. Doing that brought my as far as the attachment.
With that info I made the following expansion to the captureCardDefinitions.xml
When I did that I tried to choose my card in the MediaPortal Configuration. While adding it I get twice the warning unable to create graph for this device but at least it showed it's name
Then when I went further choosing myTV in MediaPortal it said failed to start tv, definitions don't contain filters so a no-go.
I hope someone can help me with it and image I attached. I'm pretty new with MediaPortal but I stepped through this page but I'm really stuck now.
Besides this.. I simply love the MediaPortal thing.. so cool
MediaPortal Skin: Monochrome
1. TV Card: Pinnacle PCTV Hybrid Stick Pro [320e]
1. TV Card Type: USB
I was wondering I would be nerd enough to get my PCTV Hybrid Pro Stick (320e) to work with MediaPortal. I worked to the existing threads in the forum and tried the thing with GraphEdit.
The 320e can do as well as Cable as Terrestial (mmz how do I spell that) but when I choose DVBC it couldn't connect to the other elements in GraphEdit so I went for the DVBT filter instead. Doing that brought my as far as the attachment.
With that info I made the following expansion to the captureCardDefinitions.xml
Code:
<capturecard commercialname="Pinnacle Hybrid Pro 320e" capturename="PCTV 320e BDA Capture" devid="@device:pnp:\\?\usb#vid_eb1a&pid_2881">
<capabilities tv="true" radio="false" mpeg2="true" mce="false" sw="false" bda="true"></capabilities>
<tv>
<interface cat="capture" video="3" audio="4" mpeg2="1" sectionsandtables="2"></interface>
<filters>
<filter cat="networkprovider" name="Microsoft DVBT Network Provider" checkdevice="false"></filter>
<filter cat="tunerdevice" name="PCTV 320e BDA TVTuner" checkdevice="false"></filter>
<filter cat="capture" name="PCTV 320e BDA Capture" checkdevice="false"></filter>
</filters>
<connections>
<connection sourcefilter="networkprovider" sourcepin="0" sinkfilter="tunerdevice" sinkpin="0"></connection>
<connection sourcefilter="tunerdevice" sourcepin="0" sinkfilter="capture" sinkpin="0"></connection>
</connections>
</tv>
</capturecard>
When I did that I tried to choose my card in the MediaPortal Configuration. While adding it I get twice the warning unable to create graph for this device but at least it showed it's name
Then when I went further choosing myTV in MediaPortal it said failed to start tv, definitions don't contain filters so a no-go.
I hope someone can help me with it and image I attached. I'm pretty new with MediaPortal but I stepped through this page but I'm really stuck now.
Besides this.. I simply love the MediaPortal thing.. so cool
