    I use "Media Portal - Audio Renderer" and it is working so far, BUT I always see on my Decoder Station (Teufel) the signal "Dolby Digital", no DTS or DD 5.1 is displayed.

    It seems it is working, but it is strange why I am always getting only the text "Dobly Digital"!?
    If I play on my PS4 a movie I see "DTS" or "DD 5.1" on my decoder station !
    Is this because of the Media Portal Audio Renderer?

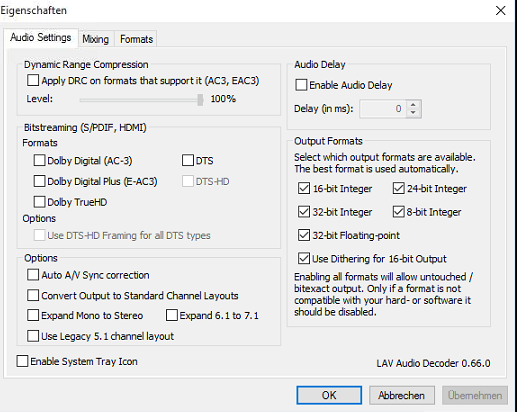

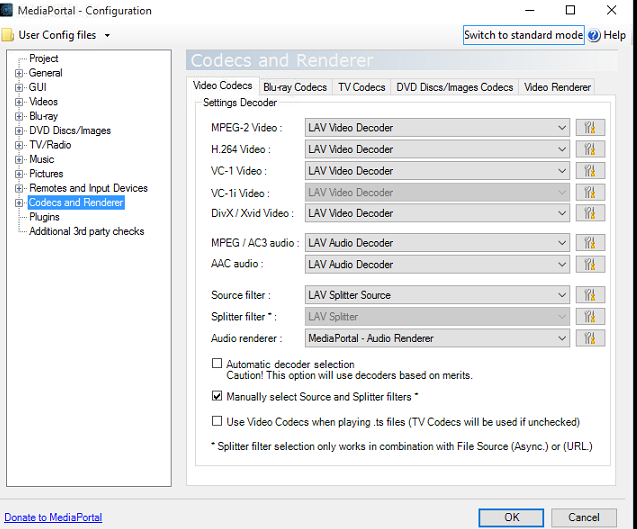

    Attached I have added my sound settings.


    Attachments

    • audio_settings.png
      113 KB
    • audio_settings2.png
      61.5 KB
    • audio_settings3.png
      98.5 KB

    mm1352000

    Development Group
  • Team MediaPortal
  • September 1, 2008
    21,577
    8,223
    Home Country
    New Zealand New Zealand
    Country flag
    Is this because of the Media Portal Audio Renderer?
    Yes.
    MPAR decodes the audio and then stretches, re-samples and/or re-encodes the audio as required. Decoding means that DTS will be converted to PCM; re-encoding means that the output will be Dolby.


    chrisonline

    MP Donator
  • Premium Supporter
  • August 17, 2007
    515
    37
    42
    Tirol/Wörgl
    Home Country
    Austria Austria
    Country flag
    Is this because of the Media Portal Audio Renderer?
    Yes.
    MPAR decodes the audio and then stretches, re-samples and/or re-encodes the audio as required. Decoding means that DTS will be converted to PCM; re-encoding means that the output will be Dolby.

    Hmm... If DTS will be converted to PCM --> means again "Dolby Digital" ?
    So I see always "Dolby Digital" instead of DTS or anything else? Or did I missunderstood this?


    mm1352000

    Development Group
  • Team MediaPortal
  • September 1, 2008
    21,577
    8,223
    Home Country
    New Zealand New Zealand
    Country flag
    Hmm... If DTS will be converted to PCM --> means again "Dolby Digital" ?
    I don't understand your question.
    Your configuration means this is what will happen:
    DTS === (decoded by LAV audio codec) ===> PCM ("raw digital audio") === (processed and encoded by MPAR) ===> Dolby Digital ===> AV receiver

    So I see always "Dolby Digital" instead of DTS or anything else?
    Yes, with your current configuration you will always see "Dolby Digital".


    Vasilich

    Test Group
  • Team MediaPortal
  • August 30, 2009
    3,394
    1,170
    Germany, Mayence
    Home Country
    Russian Federation Russian Federation
    Country flag
    It seems it is working, but it is strange why I am always getting only the text "Dobly Digital"!?
    If I play on my PS4 a movie I see "DTS" or "DD 5.1" on my decoder station !
    i am also not sure what is the difference between Indication of "Dolby digital" and "DD 5.1" on your system?
