Tuner locked but no video & audio (1 Viewer)

GtG

Portal Member
April 3, 2008
7
0
TV-Server Version: 1.0 RC4
MediaPortal Version: 1.0 RC4
MediaPortal Skin: Blue3
Windows Version: XP Pro SP3
CPU Type: Core Duo - E2140
HDD: WDC WD3200KS
Memory: 1 GB
Motherboard: Intel 945G
Video Card: ATI HD 2400 HD PRO
Video Card Driver: Catalyst 8.12
Sound Card: SoundMAX
Sound Card AC3: ??
Sound Card Driver: 5.10.1.6110
1. TV Card: Skystar 2
1. TV Card Type: DVB-S
1. TV Card Driver: Skystar 4.4.3 (Not BDA)
2. TV Card:
2. TV Card Type:
2. TV Card Driver:
3. TV Card:
3. TV Card Type:
3. TV Card Driver:
4. TV Card:
4. TV Card Type:
4. TV Card Driver:
MPEG2 Video Codec: MPV / ATI MPEG / ffdShow-final beta
MPEG2 Audio Codec: MPA
h.264 Video Codec: CoreAVC
Satelite/CableTV Provider: Turksat 3A
HTPC Case: Asus
Cooling: -
Power Supply: -
Remote: -
TV: -
TV - HTPC Connection: -

My MP setup working perfectly except some weird problem in TV module. Although the TV server seems to work OK, channels in one provider is not working. As far as I can see the TV card successfully tunes but there is no audio/video show up in the TV client.
The channels are found and configured automatically. Additionally all channels work perfectly with a 3rd party TV application (i.e. DVB Dream 1.4i), so I think the source of the problem is MP.

The name of the problematic provider is DOGUS. Below is the part of the log in TV server in result of tuning to a channel of provider. I do not understand the details of channel configuration but if I compare the tuning details with DVB Dream's tunning details; Frequency/Polarization/Modulation/Sym. Rate/SID/TID/NID numbers are same but I think Video PID, Audio PID are different. I am not sure so I am attaching screenshots of the channel configuration pages of both applications for finding possible tuning errors.
Also detailed logs created with MediaPortal Log Collector is attached.


----------------------------

2008-12-14 17:38:48.328125 [13]: Controller: StartTimeShifting CNBC-e 646
2008-12-14 17:38:48.328125 [13]: Controller: find free card for channel CNBC-e
2008-12-14 17:38:48.328125 [13]: Controller: got 1 tuning details for CNBC-e
2008-12-14 17:38:48.328125 [13]: Controller: channel #1 DVBS:tv:DOGUS CNBC-e Freq:11054000 ONID:42 TSID:21 SID:2 PMT:0x20 FTA:True LCN:646 SymbolRate:30000 Modulation:ModQpsk Polarisation:LinearH InnerFecRate:RateNotSet DisEqc:Level1AA band:Universal Pilot:NotSet RollOff:NotSet
2008-12-14 17:38:48.328125 [13]: Controller: card:1 type:DvbS is available priority:2 #users:0 same transponder:False
2008-12-14 17:38:48.343750 [13]: Controller: card:2 type:RadioWebStream cannot tune to channel
2008-12-14 17:38:48.343750 [13]: Controller: found 1 available
2008-12-14 17:38:48.343750 [13]: card: CardTune 1 CNBC-e nomad:1:-1
2008-12-14 17:38:48.343750 [13]: card: Tune 1 to CNBC-e
2008-12-14 17:38:48.343750 [13]: card: user: nomad:1:-1 tune DVBS:tv:DOGUS CNBC-e Freq:11054000 ONID:42 TSID:21 SID:2 PMT:0x20 FTA:True LCN:646 SymbolRate:30000 Modulation:ModQpsk Polarisation:LinearH InnerFecRate:RateNotSet DisEqc:Level1AA band:Universal Pilot:NotSet RollOff:NotSet
2008-12-14 17:38:48.343750 [13]: ss2:Tune(DVBS:tv:DOGUS CNBC-e Freq:11054000 ONID:42 TSID:21 SID:2 PMT:0x20 FTA:True LCN:646 SymbolRate:30000 Modulation:ModQpsk Polarisation:LinearH InnerFecRate:RateNotSet DisEqc:Level1AA band:Universal Pilot:NotSet RollOff:NotSet)
2008-12-14 17:38:48.343750 [13]: ss2: Polarity:LinearH 0
2008-12-14 17:38:48.343750 [13]: dvb:GetNewSubChannel:0 #0
2008-12-14 17:38:48.359375 [13]: subch:0 OnBeforeTune
2008-12-14 17:38:48.359375 [13]: ss2: Transponder Frequency:11054 MHz
2008-12-14 17:38:48.359375 [13]: ss2: SymbolRate:30000 KS/s
2008-12-14 17:38:48.359375 [13]: ss2: Fec:Fec_Auto 6
2008-12-14 17:38:48.359375 [13]: ss2: Lnb:Lnb0
2008-12-14 17:38:48.359375 [13]: ss2: Diseqc:Level_1_A_A Level_1_A_A
2008-12-14 17:38:48.359375 [13]: ss2: LNBFrequency:9750 MHz
2008-12-14 17:38:48.859375 [13]: ss2:hw pids:all
2008-12-14 17:38:48.859375 [13]: subch:0 OnAfterTune
2008-12-14 17:38:48.859375 [13]: subch:0 OnGraphStart
2008-12-14 17:38:48.875000 [13]: subch:0 Graph already running - skip WaitForPMT
2008-12-14 17:38:48.875000 [13]: dvb: RunGraph
2008-12-14 17:38:49.375000 [13]: dvb-s ss2: LockedInOnSignal ok
2008-12-14 17:38:49.375000 [13]: subch:0 OnGraphStarted
2008-12-14 17:38:49.375000 [13]: subch:0 SetupPmtGrabber:pid 20 sid:2
2008-12-14 17:38:49.375000 [13]: subch:0 set pmt grabber pmt:20 sid:2
2008-12-14 17:38:49.375000 [13]: WaitForPMT: Waiting for PMT.
2008-12-14 17:38:49.515625 [17]: subch:0 OnPMTReceived() True
2008-12-14 17:38:49.515625 [13]: WaitForPMT: Found PMT after 0.140625 seconds.
2008-12-14 17:38:49.515625 [13]: subch:0 SendPmt:2 2 FFFFFFFF 2
2008-12-14 17:38:49.515625 [13]: Decode pmt
2008-12-14 17:38:49.515625 [13]: Set descriptor data with length 6
2008-12-14 17:38:49.515625 [13]: Set descriptor data with length 7
2008-12-14 17:38:49.515625 [13]: subch:0 SendPMT version:2 len:61 2
2008-12-14 17:38:49.515625 [13]: subch:0 cam flags:True
2008-12-14 17:38:49.515625 [13]: subch:0 SetMpegPidMapping
2008-12-14 17:38:49.515625 [13]: subch:0 pid:0 pcr
2008-12-14 17:38:49.515625 [13]: subch:0 pid:20 pmt
2008-12-14 17:38:49.515625 [13]: subch:0 pid:201 video type:MPEG-2
2008-12-14 17:38:49.515625 [13]: subch:0 map pid:201 video type:MPEG-2
2008-12-14 17:38:49.515625 [13]: subch:0 pid:294 audio lang:eng type:MPEG-2
2008-12-14 17:38:49.515625 [13]: subch:0 map pid:294 audio lang:eng type:MPEG-2
2008-12-14 17:38:49.515625 [13]: subch:0 pid:908 teletext type:6
2008-12-14 17:38:49.515625 [13]: subch:0 map pid:908 teletext type:6
2008-12-14 17:38:49.515625 [13]: subch:0 stop tif
2008-12-14 17:38:49.515625 [13]: WaitForPMT: sending PMT to CAM took 0 seconds.
2008-12-14 17:38:49.531250 [13]: ss2:tune done:20
2008-12-14 17:38:49.531250 [13]: card: Tuner locked: True
2008-12-14 17:38:49.531250 [13]: **************************************************
2008-12-14 17:38:49.531250 [13]: ***** SIGNAL LEVEL: 33, SIGNAL QUALITY: 64 *****
2008-12-14 17:38:49.531250 [13]: **************************************************
2008-12-14 17:38:49.531250 [13]: card: tuned user: nomad subchannel: 0
2008-12-14 17:38:49.531250 [13]: user:nomad add
2008-12-14 17:38:49.531250 [13]: card2:nomad 1 0
2008-12-14 17:38:49.531250 [13]: Controller: nomad 1 0
2008-12-14 17:38:49.531250 [13]: control2:nomad 1 0
2008-12-14 17:38:49.531250 [13]: Controller: delete timeshift files C:\Documents and Settings\All Users\Application Data\Team MediaPortal\MediaPortal TV Server\timeshiftbuffer\live1-0.ts
2008-12-14 17:38:49.531250 [13]: Controller: delete C:\Documents and Settings\All Users\Application Data\Team MediaPortal\MediaPortal TV Server\timeshiftbuffer\live1-0.ts.tsbuffer
2008-12-14 17:38:49.531250 [13]: Controller: delete C:\Documents and Settings\All Users\Application Data\Team MediaPortal\MediaPortal TV Server\timeshiftbuffer\live1-0.ts.tsbuffer1.ts
2008-12-14 17:38:49.546875 [13]: card: StartTimeShifting 1 C:\Documents and Settings\All Users\Application Data\Team MediaPortal\MediaPortal TV Server\timeshiftbuffer\live1-0.ts
2008-12-14 17:38:49.546875 [13]: card: CAM enabled : False
2008-12-14 17:38:49.546875 [13]: subch:0 SetTimeShiftFileName:C:\Documents and Settings\All Users\Application Data\Team MediaPortal\MediaPortal TV Server\timeshiftbuffer\live1-0.ts
2008-12-14 17:38:49.546875 [13]: Set video / audio observer
2008-12-14 17:38:49.546875 [13]: subch:0 SetTimeShiftFileName fill in pids
2008-12-14 17:38:49.546875 [13]: subch:0-0 tswriter StartTimeshifting...
2008-12-14 17:38:49.546875 [13]: card: WaitForTimeShiftFile - waiting _eventAudio & _eventVideo
2008-12-14 17:38:49.687500 [17]: PID seen - type = Audio
2008-12-14 17:38:49.687500 [17]: audioVideoEventHandler Audio
2008-12-14 17:38:50.265625 [17]: PID seen - type = Video
2008-12-14 17:38:50.265625 [17]: audioVideoEventHandler Video
2008-12-14 17:38:50.265625 [13]: card: WaitForTimeShiftFile - video and audio are seen after 0.71875 seconds
2008-12-14 17:38:50.468750 [13]: user:nomad card:1 sub:0 add stream:C:\Documents and Settings\All Users\Application Data\Team MediaPortal\MediaPortal TV Server\timeshiftbuffer\live1-0.ts.tsbuffer
2008-12-14 17:38:50.468750 [13]: RTSP: add stream stream1.0 file:C:\Documents and Settings\All Users\Application Data\Team MediaPortal\MediaPortal TV Server\timeshiftbuffer\live1-0.ts.tsbuffer
2008-12-14 17:38:50.468750 [13]: Controller: StartTimeShifting started on card:1 to C:\Documents and Settings\All Users\Application Data\Team MediaPortal\MediaPortal TV Server\timeshiftbuffer\live1-0.ts.tsbuffer
2008-12-14 17:39:22.109375 [18]: Controller: StopTimeShifting 1
2008-12-14 17:39:22.125000 [18]: card: StopTimeShifting user:nomad sub:0
2008-12-14 17:39:22.125000 [18]: card: StopTimeShifting user:nomad sub:0
2008-12-14 17:39:22.125000 [18]: card not IDLE - freeing subch: 0
2008-12-14 17:39:22.125000 [18]: subch:0-0 tswriter StopTimeshifting...
2008-12-14 17:39:22.125000 [18]: tvcard:FreeSubChannel:1 #0 keep graph=False
2008-12-14 17:39:22.125000 [18]: DVB subch:0 Decompose()
2008-12-14 17:39:22.125000 [18]: FreeSubChannel CA: freeing sub channel : 0
2008-12-14 17:39:22.125000 [18]: tvcard:FreeAllSubChannels:
2008-12-14 17:39:22.125000 [18]: dvb:confused:topGraph
2008-12-14 17:39:22.125000 [18]: user:nomad remove
2008-12-14 17:39:22.125000 [18]: Controller:Timeshifting stopped on card:1
2008-12-14 17:39:22.125000 [18]: RTSP: remove stream stream1.0


Attachments

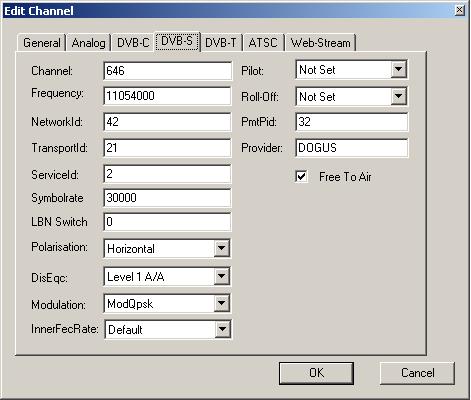

  • mediaportal-tvserver.JPG
    32.6 KB

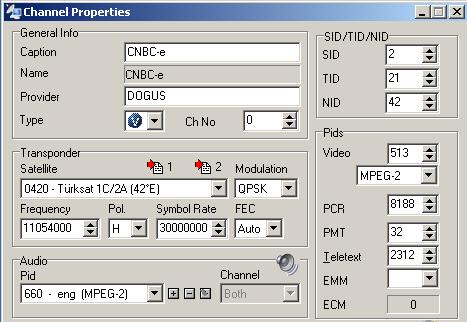

  • dvbdream.JPG
    36.4 KB
