tvservice crashes unexpectedly (1 Viewer)

[Olodin]

TV-Server Version: Media Portal 1.0.0.0
MediaPortal Version: Media Portal 1.0.0.0
MediaPortal Skin: Monochrome
Windows Version: Windows XP Pro SP3 with latest patches
CPU Type: Athlon X2 4850e
HDD: Western Digital WD7500AAKS 750GB
Memory: 1 x Kingston 2 GB DDR2-800
Motherboard: Asus M3N78-EM
Video Card: Onboard GeForce 8300
Video Card Driver: 6.14.11.7521
Sound Card: Realtek HD (onboard)
Sound Card AC3: Optical SPDIF
Sound Card Driver: 5.10.0.5745
1. TV Card: FloppyDTV DVB-S-CI
1. TV Card Type: DVB-S
1. TV Card Driver: 4.8.0
2. TV Card:
2. TV Card Type:
2. TV Card Driver:
3. TV Card:
3. TV Card Type:
3. TV Card Driver:
4. TV Card:
4. TV Card Type:
4. TV Card Driver:
MPEG2 Video Codec: Nvidia Purevideo
MPEG2 Audio Codec: Nvidia Purevideo
h.264 Video Codec:
Satelite/CableTV Provider: Astra 19.2°E
HTPC Case: Silverstone LC-10B
Cooling:
Power Supply: Coba 350W
Remote: Logitech Harmony 555
TV: Samsung 27" LCD LE-27T51B
TV - HTPC Connection: Sub-D/VGA @ 1360x768

Since a new installation of MP 1.0.0.0 with TV-Server sometimes crashes. There is an entry in the eventlog, I've searched the TV-Server logs but found nothing obvious in them.

This always happens when the PC is idle in Basic Home screen. I get back to it, turn on the TV and there is a message "Connection to tvservice was lost" (sorry, don't have a screenshot).

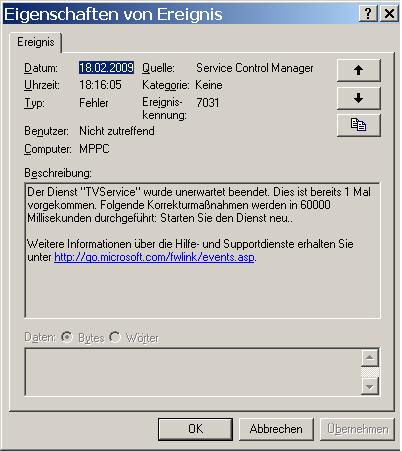

See the screenshot when this happend today at 18:16 local time. Attached are all logs.

I've set the service to restart when it crashes, so this doesn't make MediaPortal unusable, but it's a bit confusing for the users of the MediaPortal PC.



[Marvman]

Hi Olodin,

did you try to disable "grab EPG when idle" option in TV-Server config?



[Olodin]

I remembered that setting and have disabled "grab EPG when idle" some days ago. Just checked the eventlog: no tvservice crashes since then.

What I wonder: there is nothing in the logs, tvservice just had stopped. Can I enable some debug logging to get hold of the error?

In any case: I will enable "grab EPG when idle" and will see if it crashes again.



[Marvman]

Hi Olodin,

till yet, you will find nothing in the log, even with debug log mode on.

The dev's working on it 0001980: IDLE EPG grabber sometimes hangs - MediaPortal Bugtracker



[tourettes]

Hi Olodin,

till yet, you will find nothing in the log, even with debug log mode on.

The dev's working on it 0001980: IDLE EPG grabber sometimes hangs - MediaPortal Bugtracker

Actually that is a differen issue. Please try to find a way to reproduce the crash.



[Olodin]

Please try to find a way to reproduce the crash.

After enabling "grab EPG when idle" yesterday morning, I had the next crash in the evening. This time there is also a backtrace in the logs:

2009-02-28 19:23:42.359375 [PowerEventThread]: TV service PowerEventThread 537
2009-02-28 19:23:49.125000 [PowerEventThread]: TV service PowerEventThread 49385
2009-02-28 19:23:49.265625 [PowerEventThread]: TV service PowerEventThread 49385
2009-02-28 19:23:51.343750 [PowerEventThread]: TV service PowerEventThread 537
2009-02-28 19:23:51.343750 [PowerEventThread]: TV service PowerEventThread 537
2009-02-28 19:25:49.906250 [PowerEventThread]: TV service PowerEventThread 49385
2009-02-28 19:25:49.984375 [PowerEventThread]: TV service PowerEventThread 49385
2009-02-28 19:25:53.921875 [PowerEventThread]: TV service PowerEventThread 49385
2009-02-28 19:26:54.687500 [EPG Update thread]: EPG: database updated for #0 EURONEWS
2009-02-28 19:26:54.687500 [EPG Update thread]: user:epg remove
2009-02-28 19:26:54.687500 [EPG Update thread]: tvcard:FreeSubChannel:1 #0 keep graph=False
2009-02-28 19:26:54.687500 [EPG Update thread]: DVB subch:0 Decompose()
2009-02-28 19:26:54.687500 [EPG Update thread]: FreeSubChannel CA: freeing sub channel : 0
2009-02-28 19:26:54.687500 [EPG Update thread]: tvcard:FreeAllSubChannels:
2009-02-28 19:26:54.687500 [EPG Update thread]: dvb:StopGraph
2009-02-28 19:26:54.796875 [EPG Update thread]: Tvservice stopped due to a app domain exception System.AccessViolationException:
 Attempted to read or write protected memory. This is often an indication that other memory is corrupt.
   at DirectShowLib.IMediaControl.Stop()
   at TvLibrary.Implementations.DVB.TvCardDvbBase.StopGraph()
   at TvLibrary.Implementations.TvCardBase.FreeSubChannel(Int32 id, Boolean continueGraph)
   at TvLibrary.Implementations.DVB.TvCardDvbBase.FreeSubChannel(Int32 id)
   at TvService.EpgGrabbing.Stop(User user)
   at TvService.TVController.StopGrabbingEpg(User user)
   at TvService.EpgCard.UpdateDatabaseThread()
   at System.Threading.ThreadHelper.ThreadStart_Context(Object state)
   at System.Threading.ExecutionContext.Run(ExecutionContext executionContext, ContextCallback callback, Object state)
   at System.Threading.ThreadHelper.ThreadStart()
2009-02-28 19:27:56.687500 [TVService]: TVService v1.0.0.21149 is starting up on Windows XP (Service Pack 3)
2009-02-28 19:27:56.687500 [TVService]: Controller: Initilizing TVServer
2009-02-28 19:27:56.687500 [TVService]: Controller: 1 init attempt
2009-02-28 19:27:56.687500 [PowerEventThread]: TV service PowerEventThread message loop is running
2009-02-28 19:27:56.718750 [TVService]: C:\Dokumente und Einstellungen\All Users\Anwendungsdaten\Team MediaPortal\MediaPortal TV Server\gentle.config
2009-02-28 19:27:56.718750 [TVService]: Controller: using MySQL database connection: Server=mppc;Database=MpTvDb;User ID=root;Password
2009-02-28 19:27:56.718750 [TVService]: ----------------------------

tvservice was automatically restarted by windows after that crash.

Attached are the full logs



[tourettes]

Sounds like the crash would be on C++ side. If possible try to follow the debugging steps found in:

Debugging/MemoryDump - MediaPortal Manual Documentation

Hopeully that will give us more info on the crashing code (I cannot reproduce the crash, so most likely the issue is stream related).



[Olodin]

Sounds like the crash would be on C++ side. If possible try to follow the debugging steps found in:

Debugging/MemoryDump - MediaPortal Manual Documentation

Hopeully that will give us more info on the crashing code (I cannot reproduce the crash, so most likely the issue is stream related).

I'll try this. Could take some days, though. Thx for that info!



[tourettes]

Sounds like the crash would be on C++ side. If possible try to follow the debugging steps found in:

Debugging/MemoryDump - MediaPortal Manual Documentation

Hopeully that will give us more info on the crashing code (I cannot reproduce the crash, so most likely the issue is stream related).

I'll try this. Could take some days, though. Thx for that info!

If possible try to use the debug TsWriter.ax binary from the SVN. This will show additional when analyzing the crash dump.



[Olodin]

I got the debugger working now and hope to see some more crashes.

Also looked for the the a debug version of TsWriter.ax. The latest won't run: it's obviously too new for my 1.0 release of tvserver. I looked here: SourceForge.net Repository - [mediaportal] Log of /trunk/DirectShowFilters/TsWriter/bin/Debug/TsWriter.ax

What version would match best? Found no log entry related to the 1.0 release.
