    Hi all



    I've been struggeling for a while to get a carPC for backseat entertainment running Kodi on a Raspberry. Never got to that smooth running phase where my 6 and 4 year old daugthers could operate the mediacenter on their own (meaning I won't have to stop to fix whatevers going down). So here's what I came up with...

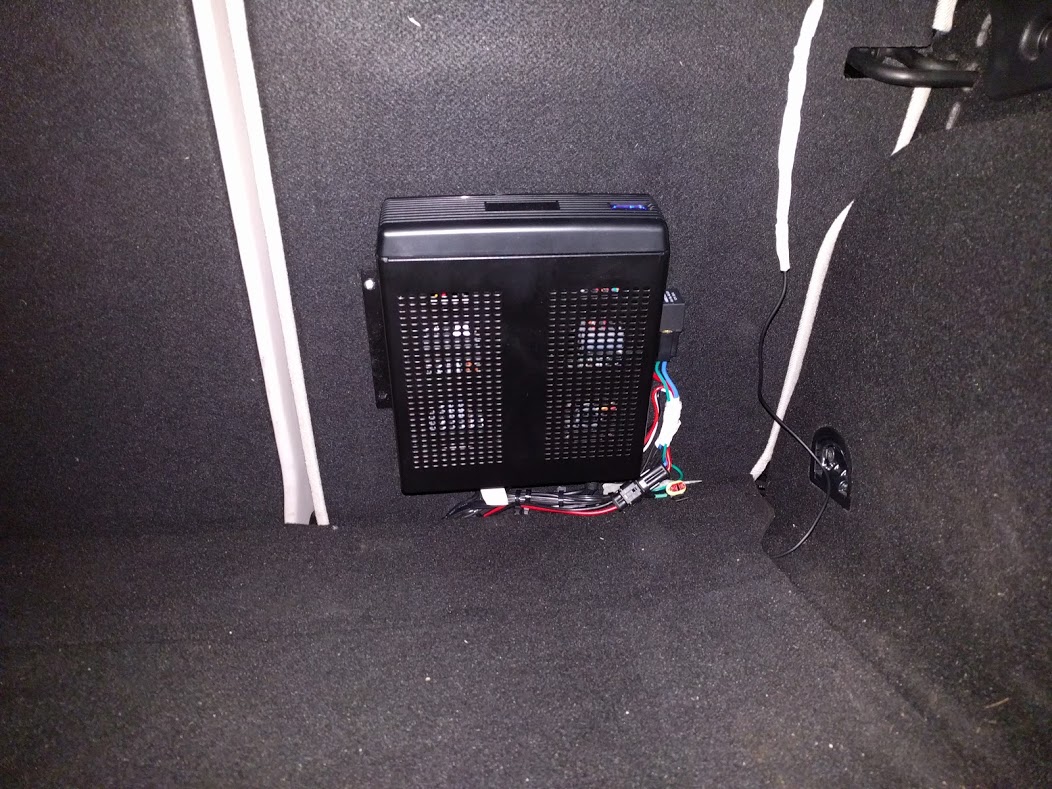

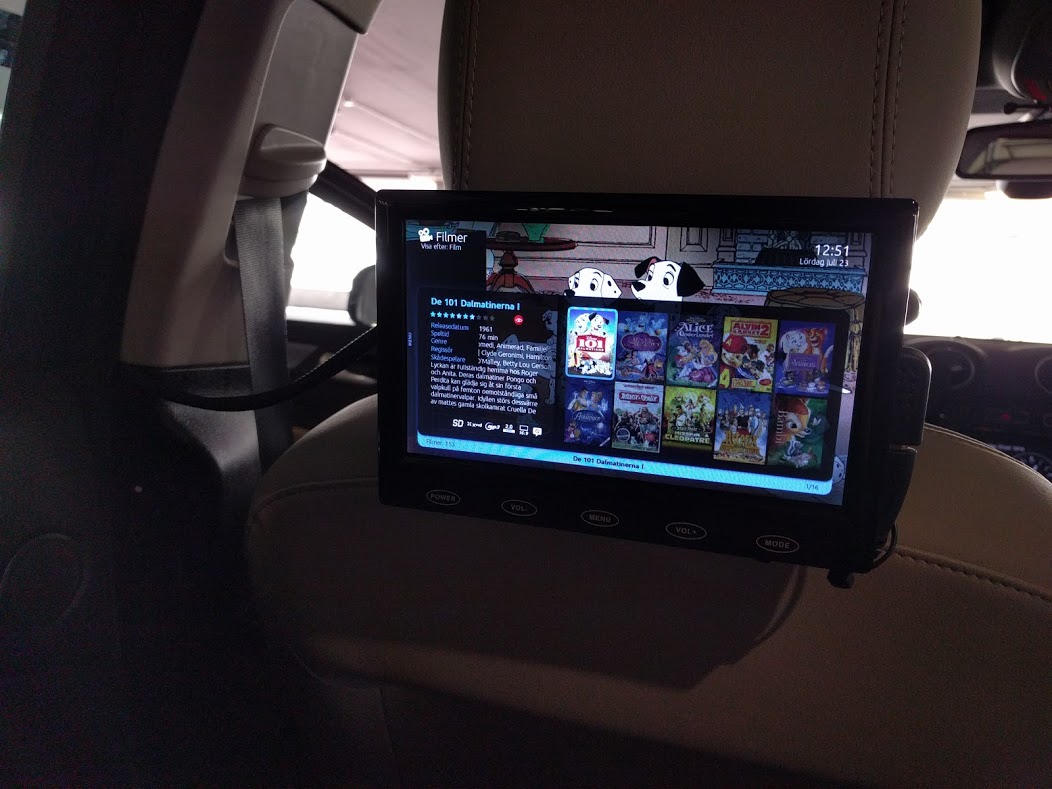

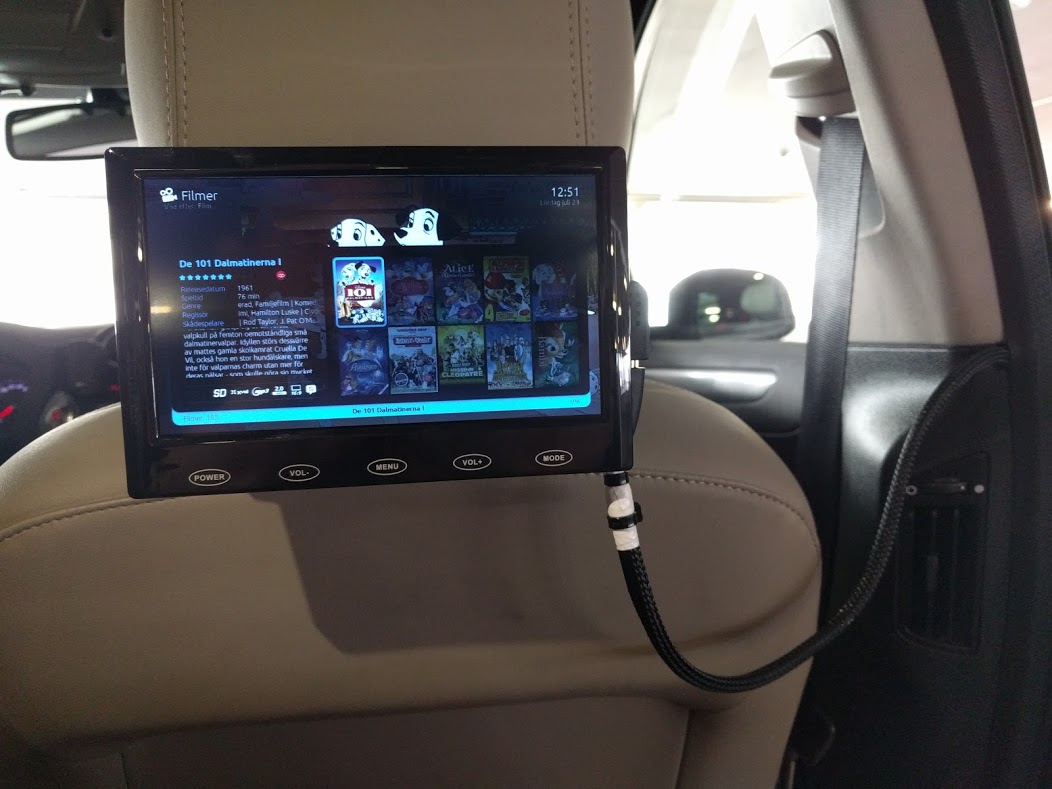

    It all started when i found the Mini-Box M3-ATX 12V power supply (http://www.mini-box.com/M3-ATX-DC-DC-ATX-Automotive-Computer-car-PC-Power-Supply), this ment I could scrap my Pi and go for x64. I opted for a Mini-Box M350 (http://www.mini-box.com/M350-universal-mini-itx-enclosure) chassi since it seemed like a nice fit with the power supply. An Asus N3150I-C (https://www.asus.com/Motherboards/N3150IC/) motherboard for it's low power consumption. A pair if cheap china made 12V HDMI monitors from Ebay (http://www.ebay.co.uk/itm/262456257781). Of course all the rest like SSD drive, headphones (wired with volume rocker on cord for individual volume), relay to power on monitors with ignition, power switches, HDMI-splitter etc. Worked out awesome and the kids love it since they're already familiar with MediaPortal from home :) Hey I'm just bragging right now but if anyones intrested I might find the time to write down the entire setup.


    Attached Files:

    • 1.jpg
      File size:
      113.4 KB
      Uploaded:
      July 23, 2016
      Views:
      327
    • 2.jpg
      File size:
      136.3 KB
      Uploaded:
      July 23, 2016
      Views:
      337
    • 3.jpg
      File size:
      243.6 KB
      Uploaded:
      July 23, 2016
      Views:
      355
    • 4.jpg
      File size:
      136.6 KB
      Uploaded:
      July 23, 2016
      Views:
      328
    • 5.jpg
      File size:
      217.7 KB
      Uploaded:
      July 23, 2016
      Views:
      278
    • Like Like x 6
    • Thank You! Thank You! x 1
  2. Google AdSense Guest Advertisement



    to hide all adverts.
  3. emphatic
    • Team MediaPortal

    emphatic Design Group

    Joined:
    August 25, 2006
    Messages:
    3,539
    Likes Received:
    825
    Gender:
    Male
    Occupation:
    Surface treatment
    Location:
    Alingsås
    Ratings:
    +1,074 / 2
    Home Country:
    Sweden Sweden
    Show System Specs
    Awesome. Would be cool to add an FM transmitter to the audio so you can use the car stereo as a backup if a headphone cord breaks. ;)

    Emph

  4. pontusson
    • Premium Supporter

    pontusson MP Donator

    Joined:
    April 4, 2011
    Messages:
    27
    Likes Received:
    7
    Ratings:
    +9 / 0
    Got a three way audio splitter, one for each kid and one to the stereo headunit. I've replaced the stereo with an China Android unit, fun to have apps like Spotify and Waze running native in my headunit but quality isn't what it's supposed to so line in gets distorted. Any deasent stereo with a aux socket would probably be fine.

  5. Charlie TV
    • Premium Supporter

    Charlie TV MP Donator

    Joined:
    February 22, 2014
    Messages:
    74
    Likes Received:
    9
    Ratings:
    +28 / 2
    Home Country:
    United Kingdom United Kingdom
    How do you deal with power on/off and potential database corruption, or you haven't found any issues so far?

  6. pontusson
    • Premium Supporter

    pontusson MP Donator

    Joined:
    April 4, 2011
    Messages:
    27
    Likes Received:
    7
    Ratings:
    +9 / 0
    The power supply is connected to the power button pins on my motherboard so when ignition on it boots and vice versa, configured Windows power options to enter hibernation when power button is pressed. 30 seconds after ignition is off the power supply cuts all power to save car battery (in addition to this my car enters some kind of sleep after 10 minutes and also cuts). So far it works fine. In the last picture above you see two power switches in the center console, one is for ignition power to stop it from booting if no one is riding in the back, the other is for main power if I need to hard reset (I reach it from driver seat).
