how to see the hauppauge 150 video channel. (not the tuner channels) (1 Viewer)

[yaniv]

Hello
i am trying to figure out how to see the
card's video channel. (not the tuner channels)

i have the hauppauge 150 mce and its getting the signal via composite (1 channel via set top box)

thanks





TV-Server Version:
MediaPortal Version: V0.2.3.0
MediaPortal Skin: default
Windows Version: xp pro sp2
CPU Type: intel duo core 2 2ghz
HDD: WD 160GB
Memory: 1GB ddr2
Motherboard: gigabyte ga965p-s3 v3.3
Video Card: geforce 6200le
Video Card Driver:
Sound Card: onboard
Sound Card AC3:
Sound Card Driver:
1. TV Card: hauppauge 150 mce
1. TV Card Type: analog
1. TV Card Driver:
2. TV Card:
2. TV Card Type:
2. TV Card Driver:
3. TV Card:
3. TV Card Type:
3. TV Card Driver:
4. TV Card:
4. TV Card Type:
4. TV Card Driver:
MPEG2 Video Codec:
MPEG2 Audio Codec:
h.264 Video Codec:
Satelite/CableTV Provider:
HTPC Case:
Cooling:
Power Supply:
Remote: mce
TV:
TV - HTPC Connection:



[geov]

Very easy, but a bit of work....

1) In the MediaPortal Setup - Tool, open the 'Television' section.
2) Now go to the 'TV-Channels' section, and create/edit one of your channels.
3) Go to the 'External' tab, and change the 'Type' to 'Recieve by external settop box'
4) Next select the 'Input via', and change it to 'CVBS#1'...
5) Now if you are going to change channels on an external device using a IR-blaster device, input the channel number into the 'Channel no on settop box'

If you have multiple tv-channels, you will have to follow the same steps for every channel.



[yaniv]

thanks for your reply

the main problem is i dont have this tabs :-(

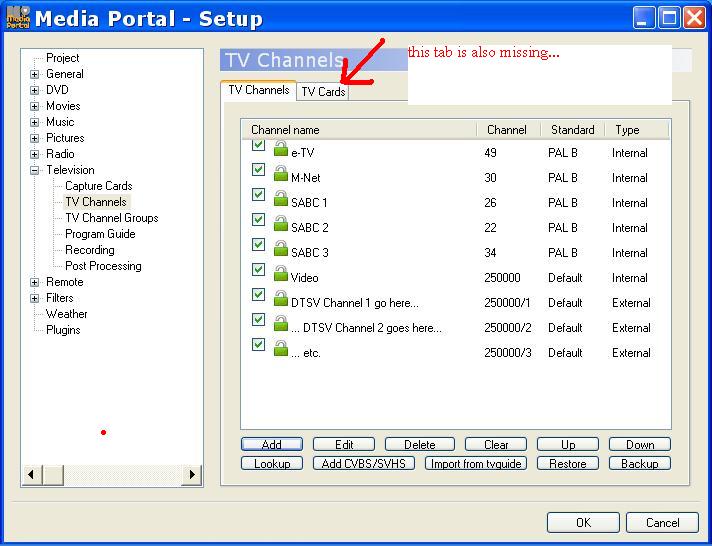

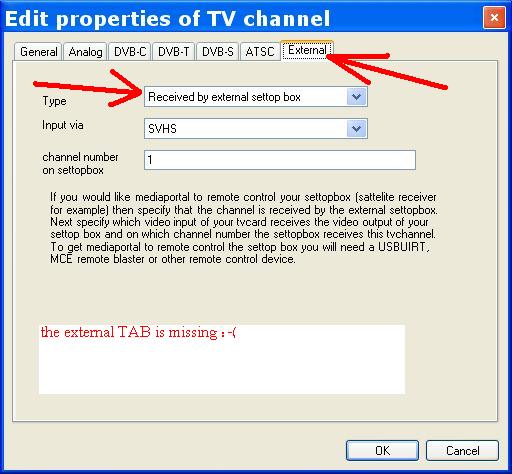

see pictures... (this are not my pictures) do i have to remove media portal and reinstall?



[geov]

This is the first time I have seen someone without this tab, you must be special

You did not by any chance install the TV-Server plug-in did you? I don’t know if that could cause this, but like I said this is the first time I have ever seen anyone say that the "External" tab is missing.

Try reinstalling, but I'm just guessing



[yaniv]

the truth is i don't know exactly what i choose... i have left the default options on almost every thing....


what i have is

1 pc dedicated to mediaportal
this pc has no other clients... just the TV connected via S-video from the geforce. and the set-top box connected it the hauppauge via composite...

what options should i choose at the installer?

You did not by any chance install the TV-Server plug-in did you?

not that i am aware... but i have 3 mediaportal icons on the desktop.

i am not at home at the moment... ill check later exactly.... but i remember
the mediaportal icon. that starts the blue GUI fullscreen.
and 2 other mediaportal icons... one is the client options...

and one is the server options... it also opens the database user and pw window and than server options...

should i have 3 icons?

thanks

This is the first time I have seen someone without this tab, you must be special

You did not by any chance install the TV-Server plug-in did you? I don’t know if that could cause this, but like I said this is the first time I have ever seen anyone say that the "External" tab is missing.

Try reinstalling, but I'm just guessing

someone else told me the options have moved to the analog tab at channels

https://forum.team-mediaportal.com/...rt-53/cant-find-external-source-option-38998/



[yaniv]

thanks i can see a picture your solution helped.

but its not moving... like freeze its a picture...

any idea?

thanks

i found here https://forum.team-mediaportal.com/1-0-rc1-svn-builds-271/tv-freeze-after-install-svn-38868/
the solution for the freezing.

i changed the audio codec to MPA and voila it works

again thank you very much for the support



[dugaldcurtis]

Hi All,

I am trying to see my composite source in Mediaportal and just can't get it to work.

I have a Hauppauge Win TV-HVR. I go to TV server configuration and iot shows I have a analogue and a digital card (it is a combination card) so I go to analogue and click the "Add VHS/SVHS channels" button. I now have CVBS#1, CVBS#2, CVBS#3, SHVH#1.....RGB#1....etc in my channels list. However, I can't view them. The composite source is viewable and confirmed working in WinTV. If I go to "Manual control", select CVBS#1 and "start timeshifting" I get "unknown error occured". If I start Mediaportal and go to the CVBS#1 channel I get "Unable to start timeshifting - unknown error".

Any suggestions? I have also tried setting up a channel by clicking "add channel" and then going to the analogue tab and setting: channel:0 frequency: 0 input type:cable, source:CVBS#1. It didn't work either!



[Spragleknas]

Could you please state the full model name of your card. (Hauppauge HVR-????)



[dugaldcurtis]

Sorry - forgot to mention, I am using a Hauppauge HVR-1100 and Mediaportal 1 RC1 on WinXP Professional.
