Hi Folks ...

after i have seen what "brother-IchEssBlumen" built
i had some ideas about a small fine case ...

massiv ALOY ...

but first of all there should be a model ... for testing and trying out the conf of Hardware.
this model, so i decide, should be hmm kind of simple worked (don't have much tools for aluminum)
so build this model out of Acryl ...
so the real Prototyp could come later in my favorite metall material ( i love aluminum)...

Hardware:

Mini-ITX Jetway with Geforce8200 on board
AM2 X2 4850e
2 Gig of Ram
LG BlueRay (that combo-drive for HD-DVD & BlueRay)
TT-S2 3200 (with CI)
Hauppauge Nova-T (at the moment for testing in my office - don't have a Sat-Dish here)
little tiny samsung 120 Gig 2.5" HDD
öhm and for remote a logitec diNovo Multi-Media-Keyboard (very smal and cute)
as PSU i use a mini-itx Fortron FSP-180 (it is a little loud couse the 40mm cooler in but ok for the prototyp)

so well - pictures bring more than words could say ...

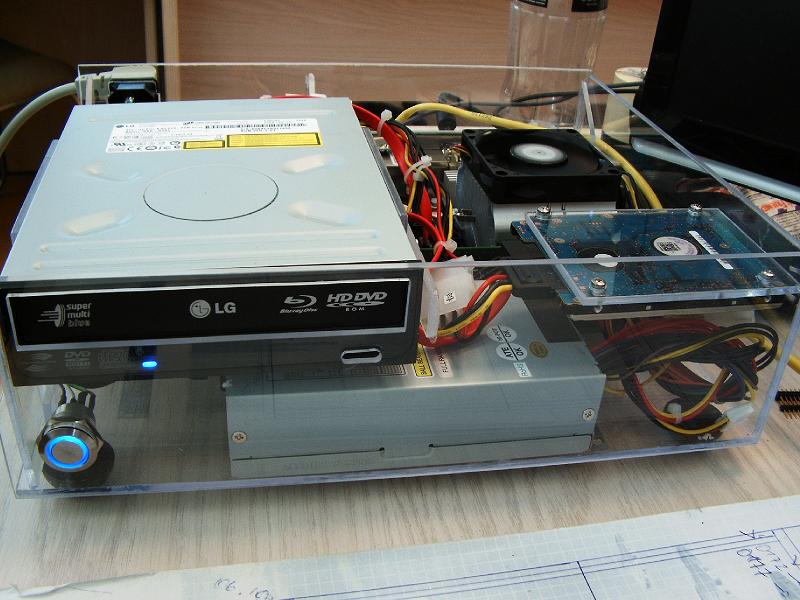

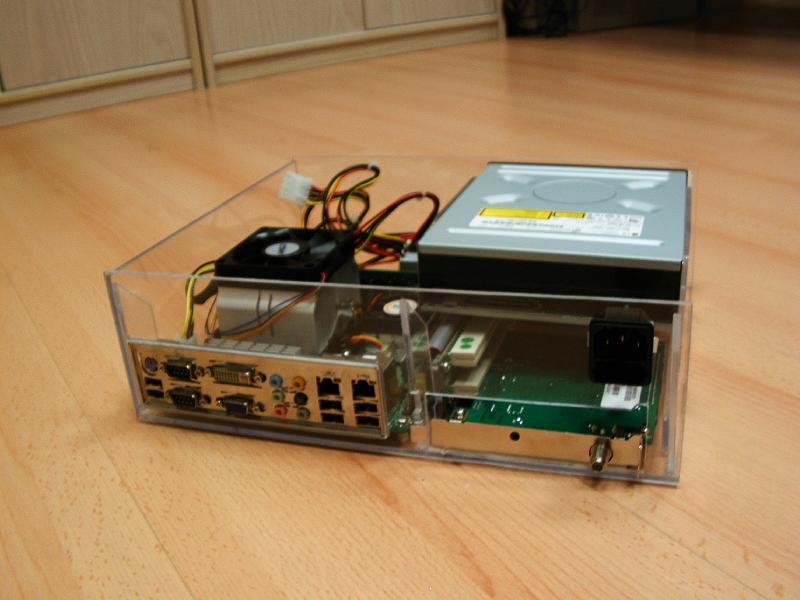

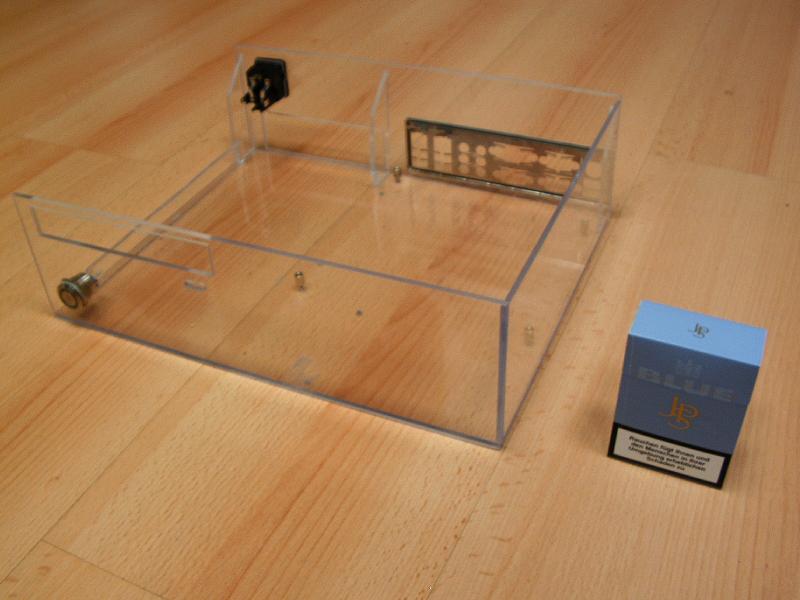

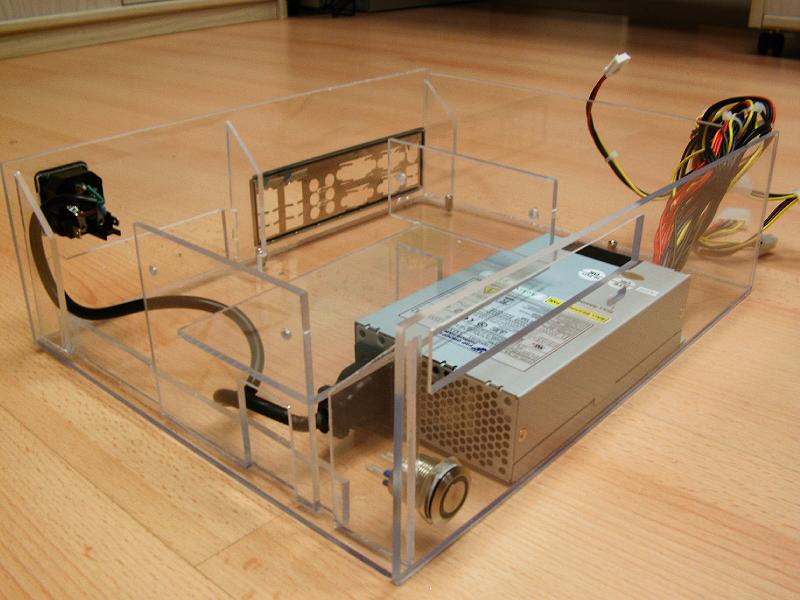

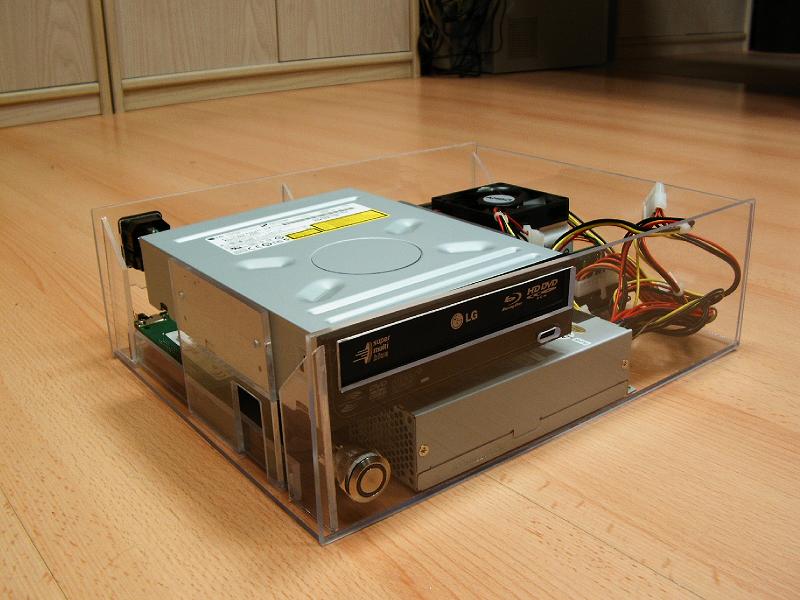

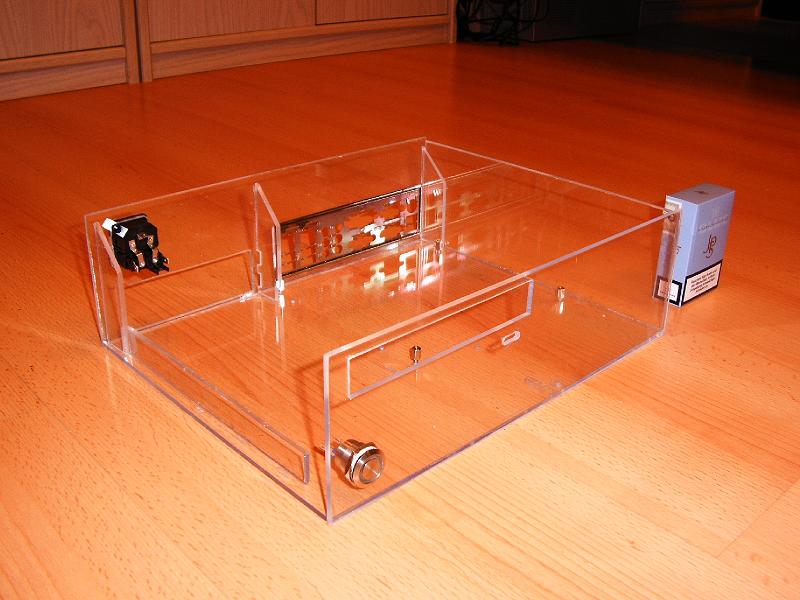

so i post some - taken while i build that "plastic-prototyp" ...

target was - small ... but not too small ...
i would say hmmm compact ...

and remeber - it is a prototyp encloser kind of showcase ...
next will be similar but in aluminum ...

have fun



[polarie]

some more - taken during WinXP installation



[polarie]

did some little updates ...

changed the PSU (fortron away keeps the noiseness away)
incomming a MOREX passiv.

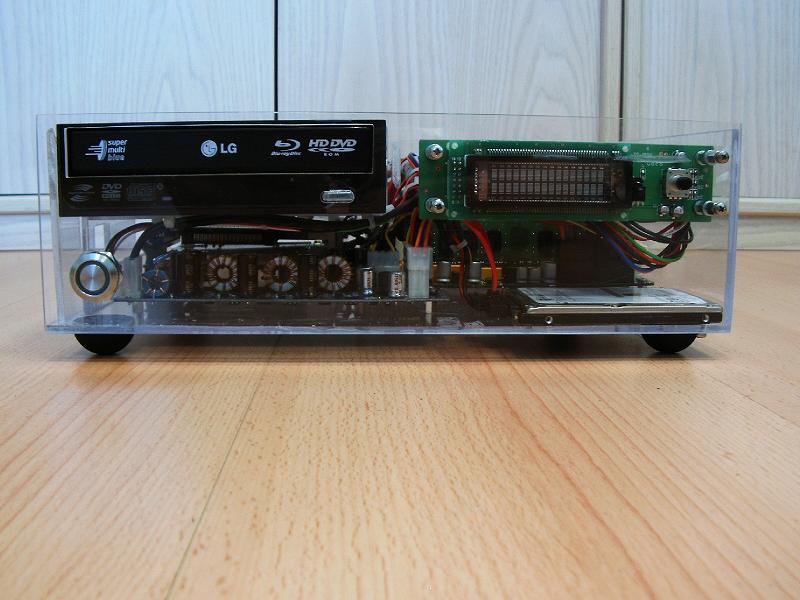

also a VFD was installed ...

AMD-Boxed cooling system - out
scythe shuriken - in

northbridge cooler (little 40mm fan)
was also kicked out .
in came xcilence passiv cooling unit (similar to the zalman-cooler)

[EDIT]

that VFD also gives the possibilty to switch on/off the complete HTPC wihtout anymore Hard or software.
ANTEC - VERIS ELITE IR COntroll with VFD ...
nice little thing of Hardware.

[/EDIT]

pictures:



[flokel]

Nice work

How did you cut the acryl ?



[polarie]

kreissäge ... circle-saw ??? öhm don't know the english word

[EDIT] circular-saw[/EDIT]
and a decupier-saw ... easy going ...

but now i am in deep trouble ... just wanna start the PC -- nothing happend ...

and i have no idea WHAT is wrong ...

will start fixing with changing the old fortron PSU again ...

cross the fingers plz



[ChrisOfCatford]

Hi,

I like the see through thing, always wanted to do that.

I have a box with a poor PSU and a VFD with remote that looks a lot like your VFD unit.

I cannot boot the PC from having been disconnected from the mains with the VFD connected to power.

Once it has booted once, it is fine until disconnected from the mains again.

Apperently on some boards you can adapt it to connect to a USB header to get power instead.

Not sure if this is your problem, but maybe worth a try?

Chris



[polarie]

well solve the problem ....

it is a bug on the motherboard -
the ATX connector on the MoBo seems to be a little buggie.

sometimes i touch it - the picture is getting strange colored and than i'll got freeze -
after that no reboot is possible --- but now i stabalized the cable - it works ...
(have to change the MoBo i think) ...
glad it was not the PSU couse the passiv MOREX is cool and quiet ...
and no FAN in use - is what i love @ this little HTPC

also the VFD is working.

hope that the first aloy-parts will arrive at my office this week ...
