Codecs SAF v6 (based on LAVF) (37 Viewers)

[D3ltoroxp]

AW: SAF v6.00 (based on LAVF)

I can not use the LAV Video vor LiveTV. The message is always : Can not be played or so.



[SiLenTYL]

Re: SAF v6.00 (based on LAVF)

I'm using cuvid for tv video (mpeg2 in Australia) and mpc mpa audio decoder(disabled by default mpadecfilter.ax in the mp directory)

all good here =)



[rogerleifert]

AW: SAF v6.00 (based on LAVF)

Strange error in MGEG-Audio

Hi to all,

after installing SAF6 a mysterious error (re-)appeared in the audio-rendering of Live-TV or TS-Files.

I have SPDIF-out and Audio-passthrough for AC3/DTS enabled.
SPDIF goes to both an audio-DAC (for music) and to a soundbeamer (for TV/DVD-watching).

With AC3/DTS-sound everything works fine.

But with MPEG-audio the sound is muted to very low levels (about -50...-60dB) when in stereo-mode.
So my DAC and my soundbeamer both show that there are linear PCM-data coming with 48kHz, but they decode them at a very low sound level.

Now when I switch (with Dual-Mono-mode enabled) to only left channel or only right channel or mix both channels to mono the sound appears correctly at full level!!!

It's as if the upper 8 bit of the 16 bit PCM-sample are shifted 8 bit to the right in stereo-mode (which in theory would give -48dB muting).

When I throw the file at graphstudio and press play it's the same behaviour.
TS-files with AC3-audio (which is set as "preferred" in MePo) play OK.
TS-files with only MPEG- Audio play ca. -50...60dB muted.
This behaviour I've had already sometimes in the past, but only very rarely and it didn't disturb.
But now it is with every MPEG-audio.

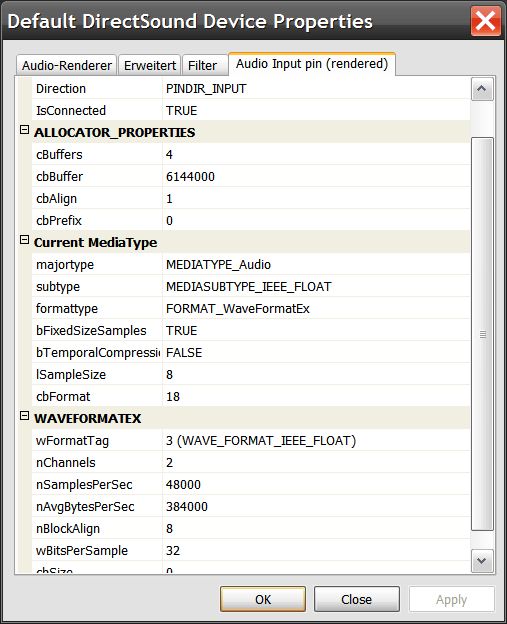

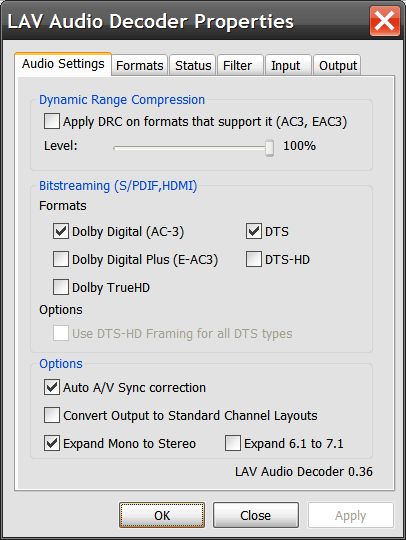

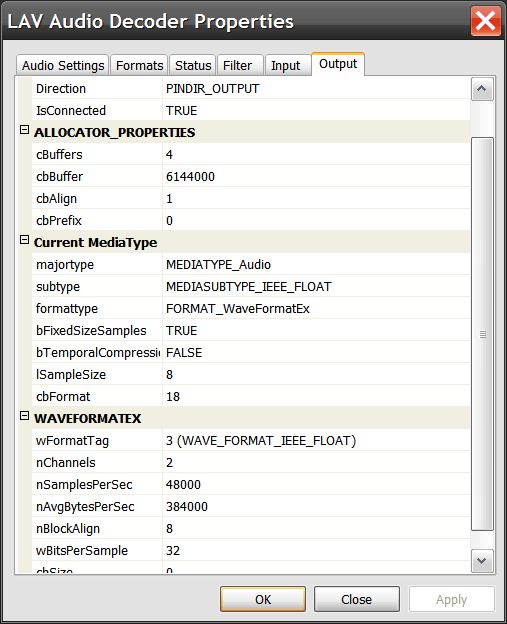

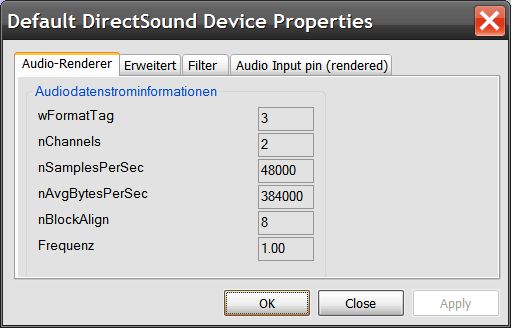

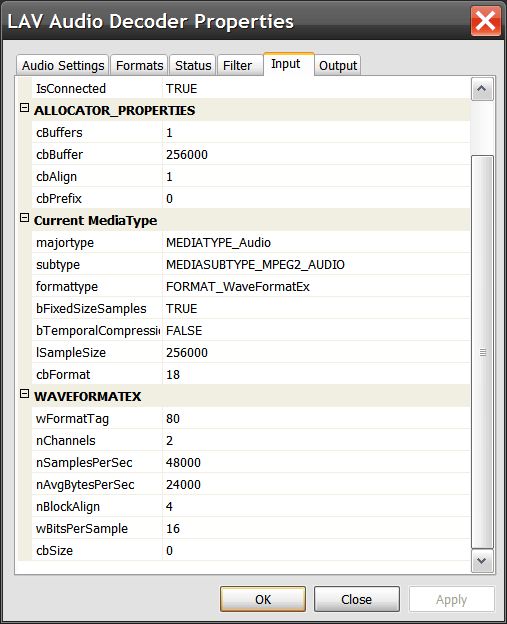

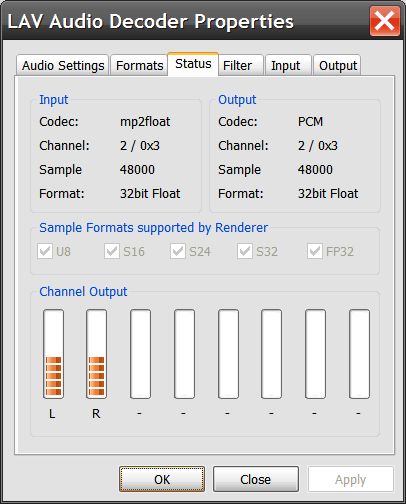

Detailed pictures of the graphstudio pins and configuration, MP-logs and SAF6 logs are attached.

Your help would be very appreciated.

Kind regards

Roger



[rogerleifert]

AW: SAF v6.00 (based on LAVF)

How stupid I am

Have found the error by myself:

In audio-mixer the volume-slider for wave-out was on the downmost position :-((((

Slided it to full level and all is OK.

I always thought, that with SPDIF-out the volume can't be changed, because at the SPDIF-panel the volume-slider is locked.
But apparently the sound data still go through the audio-mixer.

Sorry if I stole anybodies time

Roger



[tourettes]

Re: AW: SAF v6.00 (based on LAVF)

I always thought, that with SPDIF-out the volume can't be changed, because at the SPDIF-panel the volume-slider is locked.
But apparently the sound data still go through the audio-mixer.

Volume cannot be only changed for bit streamed formats.



[Koenjer]

Re: SAF v6.00 (based on LAVF)

all = live TV.

PDVD11 works fine. But is not working ok on Discovery HD and Animal Planet HD.
see also thread:
https://forum.team-mediaportal.com/...-refresh-rate-two-specific-hd-channels-98447/

System is not overheating.

I'm getting a bit distressed that after 2 years I'm still not able to watch Disovery HD Showcase.
I have tried almost all codecs available en haven't found a solution.

Who can help me out?



[mamachan]

Re: SAF v6.00 (based on LAVF)

I'm using for a few days SAF6, all works fine for now

but where can I find the control panel of LAV Audio Decoder ?

Thanks



[hoborg]

Re: SAF v6.00 (based on LAVF)

I'm using for a few days SAF6, all works fine for now

but where can I find the control panel of LAV Audio Decoder ?

Thanks

For example from Graphstudio.



[mamachan]

Re: SAF v6.00 (based on LAVF)

I'm using for a few days SAF6, all works fine for now

but where can I find the control panel of LAV Audio Decoder ?

Thanks

For example from Graphstudio.

ok!
so, no control panel like ffdshow again.
Thanks.



[tourettes]

Re: SAF v6.00 (based on LAVF)

so, no control panel like ffdshow again.

Normal LAV installer will create shortcuts to LAV filter properties, so no need to use GraphEdit. Not sure what SAF does.
