hello all,

I'd say:" finished".
This htpc is a complete diy-project built from scratch.
My worklog can be found here.

I'd love to have a small and quiet htpc and thought to buy a mcubed enclosure...until I saw the high price....

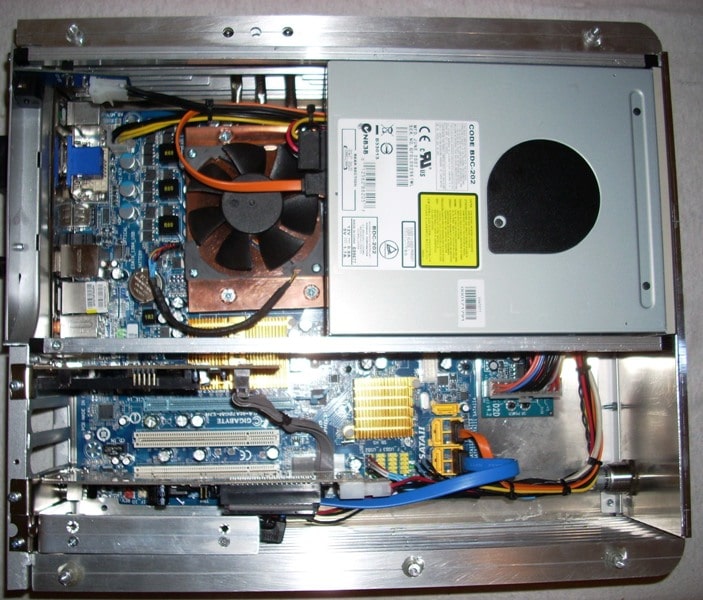

But I didn't like the big aluminum profile of the mcubed. So I decided to use aluminum fins with heatpipes connected to the cpu. And that's wat's turned out. A housing which is the cooler itself.

Hardware:
TV-card : Cinergy-S2
CPU: AMD X2-BE-2400
Motherboard: Gigabyte GA-MA780G-S2H
HDD: 250GB 2.5" Hitachi
BR-Player: BDC-202
Display: 73" LG 37LY95 full hd
VFD: Mplay Blast 202
PSU:Morex 150 W

Software:
Win XP Pro SP2
MP 0.2.0.3+TVServer SVN17044 (still use it coz no trouble )
speedfan which runs the 80mm pwm fan in case of cpu overheating

Plugins & Patches:
Patch: DVB fix otherwise the Cinergy S2 wasn't able to scan in TVserver Config
CybrDisplay from Cybrmage...thank you
BR Plugin from Mophat ...thanks

Test results with TV and Bluray
here

Enjoy
ichessblumen
