No TV channels found using Cinergy 600 TV (1 Viewer)

keulchen

New Member
August 16, 2008
1
0
Home Country
Germany Germany
TV-Server Version: the one included in installation for MP 1.0.0.0 RC2
MediaPortal Version: 1.0.0.0 RC2
MediaPortal Skin: default
Windows Version: Windows XP SP3
CPU Type: AMD Athlon 64 3200+
HDD: Western Digital, 80GB
Memory: DDR-333 512MB (2x256)
Motherboard: Foxconn 6150K8MD-8EKRSH
Video Card: Onboard (Geforce 6150)
Video Card Driver: 175.19
Sound Card: Onboard (Realtek HD Audio)
Sound Card AC3: no ac3
Sound Card Driver: 2.01
1. TV Card: Terratec Cinergy 600 TV
1. TV Card Type: analog
1. TV Card Driver: BDA Driver 1.3.3.5
MPEG2 Video Codec: ffdshow_beta5_rev2033_20080705
MPEG2 Audio Codec: ffdshow_beta5_rev2033_20080705
h.264 Video Codec: ffdshow_beta5_rev2033_20080705
Satelite/CableTV Provider: Urbana Teleunion
HTPC Case: Aplus CS-GL-3 HTPC
Cooling: AC Alpine 64
Power Supply: IBM, 300 Watt
Remote: included TV Card RC
TV: none
TV - HTPC Connection: none

Hi,

I'm using MP the first time and I started with a fresh installed version of XP including up-to-date drivers and MP Version.

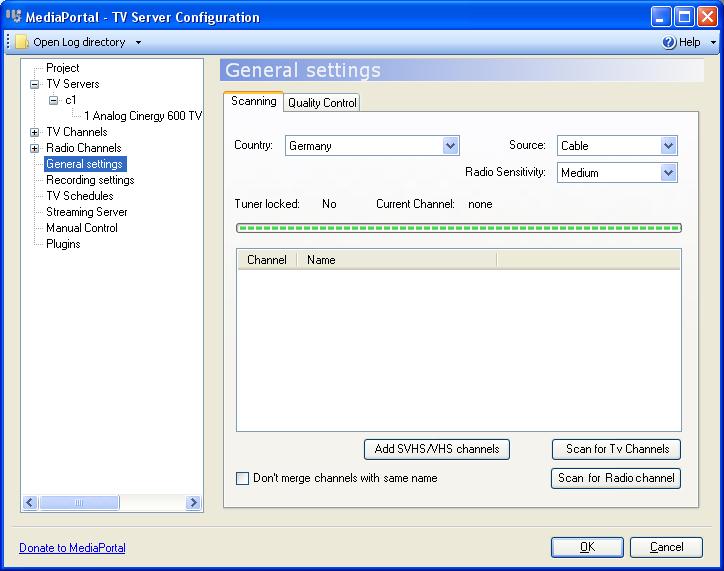

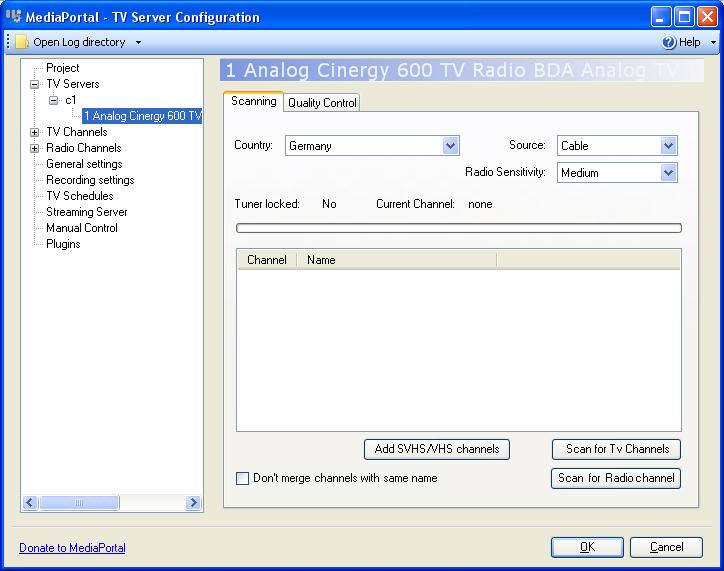

The Problem is, that i cannot find any channels via the TV-Server tool (i hope it's the right tool for searching TV channels). I already read the manual, faq and the user guide for analog tv cards (seems to be outdated) but i couldn't find any relevant information concerning my problem. Additionally the config-dialog seems to be corrupted after scanning for tv-channels (compare screen and screen2). The scan itself takes about 7 seconds (standard terratec software takes up to 4 minutes). I can find tv channels and watch tv using the standard software (Terratec Home Cinema) and Sceneo TVCentral v4.

Feel free to ask for additional sys specs or anything else. If I missed a doc on MP which probably solves my problem - please post it. In this case I was too stupid to find it :). Thank you!

keulchen


Attachments

  • screen.JPG
    58.8 KB
  • screen2.JPG
    59.2 KB

blaudden

Portal Pro
November 19, 2006
68
2
Home Country
Sweden Sweden
tvserver_tv.log
2008-08-16 21:59:35.173375 [10]: analog: AddAudioCompressor found:9 compressor
2008-08-16 21:59:35.173375 [10]: analog: failed to add audio compressor. you must install a supported audio encoder!
^^^Seems like that is your error.

Searched the forum?
