[Help Us!] stress test your tvserver. (1 Viewer)

mylle

Portal Pro
April 14, 2005
574
66
Denmark
Home Country
Denmark Denmark
nice :)

what kind of errors are you now getting ?

can u provide a tv.log snippet showing one of these errors ?

/gibman

can u try and give the attached patch a test.

/gibman

Much better with the patch. goth 6 errors in 400 tries though.

2 cards, 2 users default settings

Hi Gibman,

I have attached the whole tv.log even though its rather big.

This is 77 tunes with one failed.

errors i saw before was "no signal" and "no audio/video detected"

Something strange though. the log get big very fast and it keeps growing even after stopping the test. This log stop with me restarting the tv-service.

regards
Jacob


gibman

Retired Team Member
  • Premium Supporter
  • October 4, 2006
    2,998
    1,372
    Aarhus
    Home Country
    Denmark Denmark
    Country flag
    your failed channel:
    2010-11-10 15:37:21.168759 [(5)]: card: WaitForTimeShiftFile - video was found, but audio was not found after 15,0072261 seconds

    the reason why the log gets flooded with those "card:2 type:DvbC is available" is because of the new card alloc. code.
    Have to look into it.
    you can disable it by commenting it out.
    in : cardallocationbase.cs

    could u try the new patch :) ?

    EDIT: I've disabled the excessive logging now in svn.

    /gibman


    Attachments

    • noAVfound_v2.patch
      9.6 KB · Views: 130

    mylle

    Portal Pro
    April 14, 2005
    574
    66
    Denmark
    Home Country
    Denmark Denmark
    your failed channel:
    2010-11-10 15:37:21.168759 [(5)]: card: WaitForTimeShiftFile - video was found, but audio was not found after 15,0072261 seconds

    the reason why the log gets flooded with those "card:2 type:DvbC is available" is because of the new card alloc. code.
    Have to look into it.
    you can disable it by commenting it out.
    in : cardallocationbase.cs

    could u try the new patch :) ?

    EDIT: I've disabled the excessive logging now in svn.

    /gibman


    New patch with latest SVN

    600 tunes. No errors :)

    Thanks Gibman

    regards
    Jacob


    romuz

    Retired Team Member
  • Premium Supporter
  • July 26, 2008
    1,045
    250
    Moskau
    Home Country
    Russian Federation Russian Federation
    With v2 patch i getting this sometimes:
    tvserver
    2010-11-11 11:29:43.995800 [(15)]: PID seen - type = Audio
    2010-11-11 11:29:43.995800 [(15)]: audioVideoEventHandler - tune in progress
    2010-11-11 11:29:43.995800 [(15)]: audioVideoEventHandler - tune in progress
    2010-11-11 11:29:43.995800 [(15)]: audioVideoEventHandler - tune in progress
    2010-11-11 11:29:43.995800 [(15)]: audioVideoEventHandler - tune in progress
    2010-11-11 11:29:43.995800 [(15)]: audioVideoEventHandler - tune in progress
    2010-11-11 11:29:44.011400 [(5)]: subch:0 stop tif
    2010-11-11 11:29:44.011400 [(5)]: WaitForPmt: PMT handling took 0,0624 seconds.
    2010-11-11 11:29:44.011400 [(5)]: OnGraphStart end
    2010-11-11 11:29:44.011400 [(5)]: card: Tuner locked: True
    2010-11-11 11:29:44.011400 [(5)]: **************************************************
    2010-11-11 11:29:44.011400 [(5)]: ***** SIGNAL LEVEL: 98, SIGNAL QUALITY: 100 *****
    2010-11-11 11:29:44.011400 [(5)]: **************************************************
    2010-11-11 11:29:44.011400 [(5)]: card: tuned user: setuptv-350 subchannel: 0
    2010-11-11 11:29:44.011400 [(5)]: user:setuptv-350 add
    2010-11-11 11:29:44.027000 [(5)]: card2:setuptv-350 3 0
    2010-11-11 11:29:44.027000 [(5)]: Controller: setuptv-350 3 0
    2010-11-11 11:29:44.027000 [(5)]: control2:setuptv-350 3 0
    2010-11-11 11:29:44.027000 [(5)]: card: StartTimeShifting 3 F:\\live3-0.ts
    2010-11-11 11:29:44.027000 [(5)]: card: CAM enabled : True
    2010-11-11 11:29:44.027000 [(5)]: card: WaitForTimeShiftFile - waiting _eventAudio & _eventVideo
    2010-11-11 11:29:44.417000 [(15)]: PID seen - type = Video
    2010-11-11 11:29:44.417000 [(15)]: audioVideoEventHandler Video
    2010-11-11 11:29:44.417000 [(15)]: video last seen at 11.11.2010 11:29:44
    2010-11-11 11:29:44.417000 [(15)]: video last seen at 11.11.2010 11:29:44
    2010-11-11 11:29:44.417000 [(15)]: video last seen at 11.11.2010 11:29:44
    2010-11-11 11:29:44.417000 [(15)]: video last seen at 11.11.2010 11:29:44
    2010-11-11 11:29:44.417000 [(15)]: video last seen at 11.11.2010 11:29:44
    2010-11-11 11:29:49.034600 [(5)]: card: WaitForTimeShiftFile - no audio was found after 5,0076 seconds
    2010-11-11 11:29:49.034600 [(5)]: card Prof 7500 DVBS Tuner: StopTimeShifting user:setuptv-350 sub:0
    2010-11-11 11:29:49.034600 [(5)]: card: StopTimeShifting user:setuptv-350 sub:0
    2010-11-11 11:29:49.034600 [(5)]: card not IDLE - removing user: setuptv-350

    Audio(or Video) are seen before waiting _eventAudio & _eventVideo and im still getting fail in this case.

    tswriter
    11-11-2010 11:29:43.980 Recorder: TIMESHIFT add video stream pid: 0x148 fake pid: 0x30 stream type: 0x2 logical type: 0x2 descriptor length: 3
    11-11-2010 11:29:43.980 Recorder: TIMESHIFT add audio stream pid: 0x19a fake pid: 0x40 stream type: 0x4 logical type: 0x4 descriptor length: 9
    11-11-2010 11:29:43.980 Recorder: TIMESHIFT paused=no
    11-11-2010 11:29:43.995 Recorder: TIMESHIFT start of audio detected
    11-11-2010 11:29:44.417 Recorder: TIMESHIFT start of video detected

    11-11-2010 11:29:44.432 Recorder: TIMESHIFT clear TS packet queue
    11-11-2010 11:29:44.432 Recorder: TIMESHIFT Info : Next broadcaster program clock reference rollover : 0 days 02:25:08 0
    11-11-2010 11:29:49.34 Recorder: TIMESHIFT Stop 'F:\\live3-0.ts.tsbuffer'
    11-11-2010 11:29:49.34 Recorder: TIMESHIFT Reset

    PS logging typo fix in attachment


    Attachments

    • logging typo fix.patch
      800 bytes · Views: 126

    Sebastiii

    Development Group
  • Team MediaPortal
  • November 12, 2007
    16,557
    10,376
    France
    Home Country
    France France
    Country flag
    Hi,

    I would like to participate to this test, because i didn't use TV in MePo (because it's too slowwwww lol) but i would like :)
    So the idea of this testing it's really great, i have a hauppauge WinTV HVR 4000, i use for test only DVB-T.
    For information with DVBviewer all is working good (speed etc.)

    The result is not very cool with me lol.
    I hope that help to try to catch the issue :)
    Seb.

    Edit : I just made another testing -> Remove all scrambled Channel -> Set Number of concurrent.. to 1 -> no Failed on 23 Channels.
    I have an Avg mSec : 1600.


    joxen

    MP Donator
  • Premium Supporter
  • May 14, 2008
    146
    14
    stockholm
    Home Country
    Sweden Sweden
    gibman

    did you manage to fix the terratec 2400dt problem ? dont se it in road map eny more ..

    is so is it posibel that you coud upload a compiled wersion for testing :D


    gibman

    Retired Team Member
  • Premium Supporter
  • October 4, 2006
    2,998
    1,372
    Aarhus
    Home Country
    Denmark Denmark
    Country flag
    the latest changes for stress testing is in svn and will be part of the next release.

    about the terractec 2400dt dual dvb-t card-

    We are unable to fix it. Obviously being a driver problem, the device manufacturer has to fix it.
    I did mail terractec but, as expected, I did not receive a reply.
    I suspect terratec as well as many other brands to not write their own drivers, but are instead written by the chipset suppliers.

    what I did was simple:
    I removed the card from my server. Now it is collecting dust.
    crude, I know, but it works :)

    avoid this card if you can.

    /gibman


    joxen

    MP Donator
  • Premium Supporter
  • May 14, 2008
    146
    14
    stockholm
    Home Country
    Sweden Sweden
    ok but i dident have the problem in erlier setups so it realy confuses me ?

    but my setup is runing fine whith mixt drivers so it is no big isue thanks for looking in to it and i whil wait for another driver and test them out.

    do you now what chip the card is using ?

    /Tobias


    chschs

    Portal Pro
    January 30, 2009
    52
    0
    Nürnberg
    Home Country
    Germany Germany
    AW: Re: stress test your tvserver.

    Hello Gibman,

    thanks for the nice tool.
    Maybe I don't get it yet.
    I have problems with my cards so I want to find out which one causes the problem.
    What I know already is that I have problems with my Terratec Cinergy S2.
    But also other recordings fail.

    So I installed the tool (doesn't say, but I replaced the SetupTV.exe).
    And let it run with 4 concurrent.
    But I don't understand what I see.

    I would have expected that all 4 cards are tested if the channel is mapped.
    But in that case I would need to see all working cards (good) and all cards where time shifting failed (bad).

    Next problem what is the card number referring to?
    The number in the Channel Testing view does not match as you see in the hardcopy.
    The card number is also different to the TV Server number.
    But how I know which card causes the problem?

    Please enlighten me. Thanks
    CHS


    Attachments

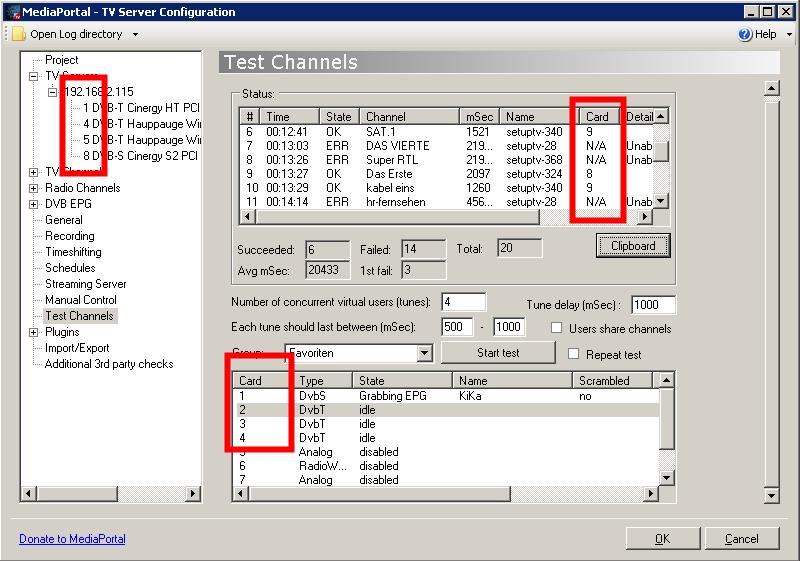

    • Test channels.jpg
      Test channels.jpg
      86.4 KB · Views: 160
