    Hi Guys,
    I propose to have an small list of users who use Ambient light system.
    No need to do an big explanation of your use. only for know who uses what !

    --------------------------------- TEMPLATE -----------------------------------​
    Board:
    Firmware:
    Protocol:
    LED strip model:
    Number of LEDs:
    Power Supply:
    Average Cost:

    LEDs per side:
    - Top:
    - Bottom:
    - Left:
    - Right:

    Using for:
    Start method:

    Wishlist :
    ----------------------------------------------- Example ------------------------------------------​
    Board : arduino
    Protocol : MiniDMX
    Led Stip model : WS2801 LED bullet
    Number of led : 50
    side used
    top :
    20
    bottom : 0
    Left : 15
    right : 15
    Using : Vidéo / TV /
    Manual/Auto start:
    Manual

    small snapshot are welcome.

    Edit :
    2013 01 30 : Template modifed, like lightning303 ;)
    2013 01 30 : add *Alimentation / Screen size

    Last edited:

    azzuro

    Test Group
  • Team MediaPortal
  • May 10, 2007
    9,948
    5,617
    France - IDF
    Home Country
    France France
    • Thread starter
    • Moderator
    • #2
    Board : Teensy2 ( Arduino Compatible )
    Firmware : my own V2-RGB available on ambilight-4-mediaportal website
    Protocol : Atmoduino
    Led Stip model : WS2801 led bullet 12mm
    Number of led : 50
    side used
    top : 20
    bottom : 0
    Left : 15
    right : 15

    Using : Vidéo / TV
    Manual/Auto start : Manual

    What is Your Wish ? : Equalizer effect for Audio playing / Ir remote for control it when not used for ambilight ( working on it )

    No snapshot, because my system is only for testing now ... :(


    kenwonders

    MP Donator
  • Premium Supporter
  • January 19, 2007
    791
    741
    Home Country
    England England
    Last edited:

    Lightning303

    MP Donator
  • Premium Supporter
  • September 12, 2009
    798
    577
    Home Country
    Germany Germany
    Board: SEDU Board
    Firmware: 3.0
    Protocol: MiniDMX
    LED strip model: WS2801 String (Bullets)
    Number of LEDs: 50
    Screen size: 37"

    LEDs per side:
    Top: 16
    Bottom: 16
    Left: 9
    Right: 9​

    Using for: Video/TV
    Start methode: Automatic

    Whishlist: Im happy :)

    I adjusted your template a bit, i hope you dont mind. You can change it, if it bugs you ;p. What do you mean with snapshot? A picture? And if yes, from what? The system or settings in AtmoWin? I think it would be interesting to have a collection of AtmoWin settings.

    Last edited:

    kilik360

    MP Donator
  • Premium Supporter
  • September 3, 2010
    576
    235
    Home Country
    Canada Canada
    Board: Arduino UNO rev.3
    Firmware: atmoduino
    Protocol: atmoduino
    LED strip model: WS2801 String (Bullets)
    Number of LEDs: 100 (2x 50)
    Power Supply: DC 5v 10a
    Average Cost: 150 USD

    LEDs per side:
    Top:
    32
    Bottom: 32
    Left: 18
    Right: 18

    Using for: Video/TV
    Start methode: Automatic


    ixdvc

    Portal Pro
    May 26, 2009
    227
    39
    Home Country
    Germany Germany
    Board: SEDU-Board
    Firmware: 3.0
    Protocol: miniDMX
    LED strip model: WS2801 strap
    Number of LEDs: 92
    Screen size: 40"

    LEDs per side:
    - Top: 29
    - Bottom: 29
    - Left: 17
    - Right: 17

    Using for: Video/TV
    Start method: Automatic
    Whishlist: Finally have time to calibrate the colors.

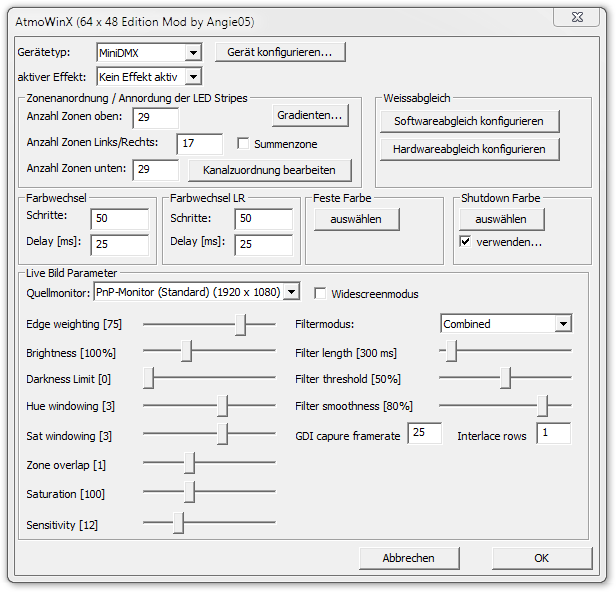

    I have attached my AtmoWin settings, but these change from time to time. For now I'm quite happy, though.


    Attachments

    • AtmoWinX-settings.png
      31.8 KB

    Dragy

    Portal Pro
    April 27, 2009
    778
    333
    31
    Home Country
    Netherlands Netherlands
    Board: Arduino Uno rev 3 (Chinese clone probably)
    Firmware: Atmoduino edit with FastLed (FastSPI v2)
    Protocol: Atmoduino
    LED strip model: WS2801 led strip
    Number of LEDs: 88

    LEDs per side:
    - Top:
    28
    - Bottom: 28
    - Left: 16
    - Right: 16

    Using for: video, tv, music, radio
    Start methode: Automatic
    Whishlist : more software solutions besides AtmoWin

    Last edited:

    Schicksal

    Portal Pro
    February 7, 2010
    800
    29
    Home Country
    Germany Germany
    Board: Arduino UNO rev.3
    Firmware: Atmoduino edit with FastLed (FastSPI v2)
    Protocol: Atmoduino
    LED strip model: LPD8806 Stripe
    Number of LEDs: 166
    Power Supply: DC 5v 10a (Mean Well)
    Average Cost: 90 Euro
    Screen size: 60"

    LEDs per side:
    Top:
    60
    Bottom: 34
    Left: 36
    Right: 36

    Using for: Video/TV
    Start methode: Automatic
    Whishlist: everything works fine


    pur_berger

    Super User
  • Team MediaPortal
  • Super User
  • May 14, 2007
    1,679
    309
    51
    Vienna
    Home Country
    Austria Austria
    Board: SEDU-Board
    Firmware: 3.0
    Protocol: miniDMX
    LED strip model: WS2801 strap
    Number of LEDs: 96
    Screen size: 55"

    LEDs per side:
    - Top: 44
    - Bottom: 0
    - Left: 26
    - Right: 26
    Using for: Video/TV
    Start method: Automatic
    Whishlist: Possibility to modify the delay between capture and Picture (ambilight is some splitseconds before the actual Picture)


    sunfire7

    Portal Pro
    March 24, 2011
    193
    47
    35
    Home Country
    Mexico Mexico
    Board: Arduino UNO rev.3
    Firmware: Atmoduino
    Protocol: Atmoduino
    LED strip model: LPD8806 Stripe
    Number of LEDs: 100
    Power Supply: DC 5v 5A
    Average Cost: 1800 Mexican Pesos = 138 USD
    Screen size: 46"

    LEDs per side:
    Top:
    32
    Bottom: 32
    Left: 18
    Right: 18

    Using for: Moving Pictures & Music Plug-In (Visualization)
    Start methode: Automatic
    Whishlist: Everything is working great, but If it could have this, would be more awesome:
    *Direct support for Mepo Gui instead of having to use live view
    *Rockstar Plug-in to use Mepo Music Engine to be allowed to have visualization and atmowin in Rockstar :)

    Last edited:
