Get Harmony remote working with iMon VFD on MediaPortal (4 Viewers)

[waskol]

Just to cleat things a bit:

I'm running MiniDisplay + IRSS (latest version self compiled). The latter is configured as "MCE" and not as "iMON".
I have a perfectly working Harmony 555 remote configured as MCE.

VFD with 0x30 firmware and iMON 7.40.806 ( installed but not running ).
What can do the trick is the firmware, maybe new ones are behaving in a different way...

Simone

+1 I totally agree

I was thinking about opening a thread, not to expose problems but to expose all (and only that !) the working solutions that have been proved to be working so far with variou details :
- Soundgraph LCD/VFD model (VFD/LCD USB/other interface, OEM/Retail, Firmware)
- iMonManager version
- MP version
- The working solution exposed/explained

What do you think about the idea ?



[icemochalatt]

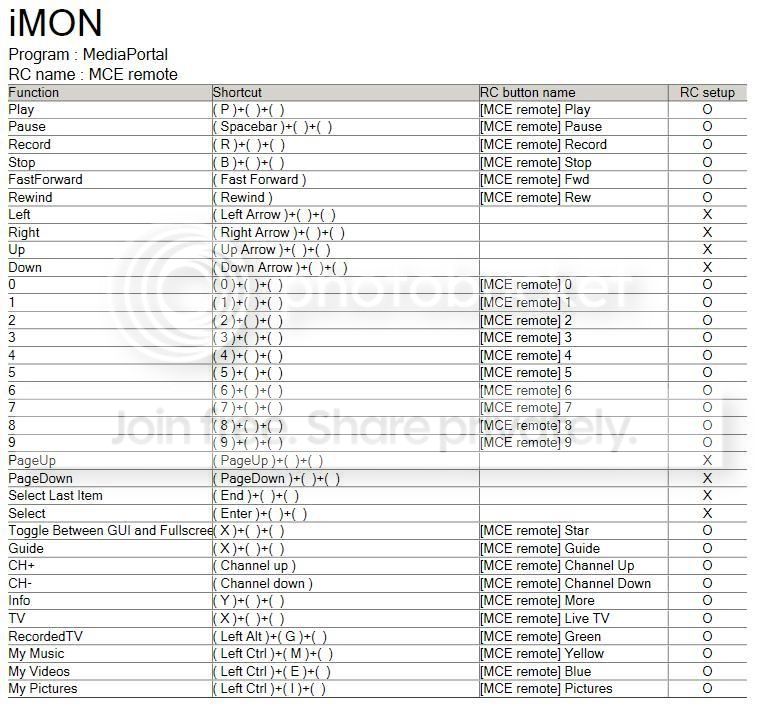

I had the same issue with the iMon and my 880. I have it working perfectly after a few hours of tinkering with the Logitech software and remote. It also required adding a few custom buttons to the remote, but the default buttons should work fine.

1. Use "Media Center PC (MicrosoftWindows Media Center)" device on the Harmony
2. I set the iMON software to use an MCE remote
3. Set MediaPortal to use a MCE remote
4. In iMON Manager, add a MediaPortal Program Command set
5. Set these MediaPortal custom functions -



[onyx666]

Just to cleat things a bit:

I'm running MiniDisplay + IRSS (latest version self compiled). The latter is configured as "MCE" and not as "iMON".
I have a perfectly working Harmony 555 remote configured as MCE.

VFD with 0x30 firmware and iMON 7.40.806 ( installed but not running ).
What can do the trick is the firmware, maybe new ones are behaving in a different way...

Simone

+1 I totally agree

I was thinking about opening a thread, not to expose problems but to expose all (and only that !) the working solutions that have been proved to be working so far with variou details :
- Soundgraph LCD/VFD model (VFD/LCD USB/other interface, OEM/Retail, Firmware)
- iMonManager version
- MP version
- The working solution exposed/explained

What do you think about the idea ?

i think this is a great idea
i would like to get it running without the imon software
so a guide how to set this up would be perfect

michel



[chemelli]

yes good idea, let's start the thread !

Simone



[waskol]

yes good idea, let's start the thread !

Simone

Here it is !

Please, to anybody who has a working solution, post it here !
Cyberdisplay/Minidisplay + iMon VFD/LCD (+Harmony remote) : solution database

Thank you for all those people who are looking for something working !

@icemochalatt : Please, would you be kind to post your working solution there ? Thank you so much !



[meierk]

I'm at work and didn't have time to read all the posts so this may be of no help, but I also had problems with the SoundGraph VFD and my Harmony One remote for weeks until I ran across this post:

https://forum.team-mediaportal.com/...-vfd-imon-ipad-imon-front-buttons-hack-45232/

Make sure you configure your remote as a SoundGraph device using the Logitech software, not an MCE remote.

-Kevin



[shawngreen]

I have an Antec Black Fusion Remote Case - Imon 7..20 and Harmony 880. I cant get it to work, can anyone point me in the right direction?
