[fixed] Incorrect rendering of borders with CornerRadius=0 and BorderThickness>0 (1 Viewer)

[morpheus_xx]

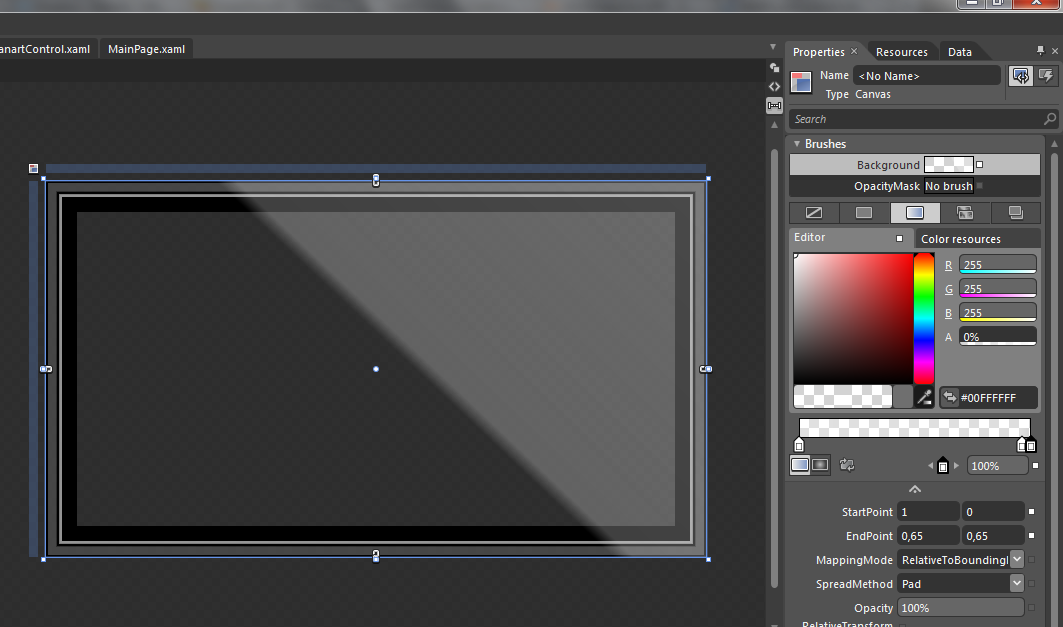

I was trying to draw a glassy overlay for images using Microsoft Expression Blend.

The XAML is valid for MPF use, but the rendering of outputs is wrong:

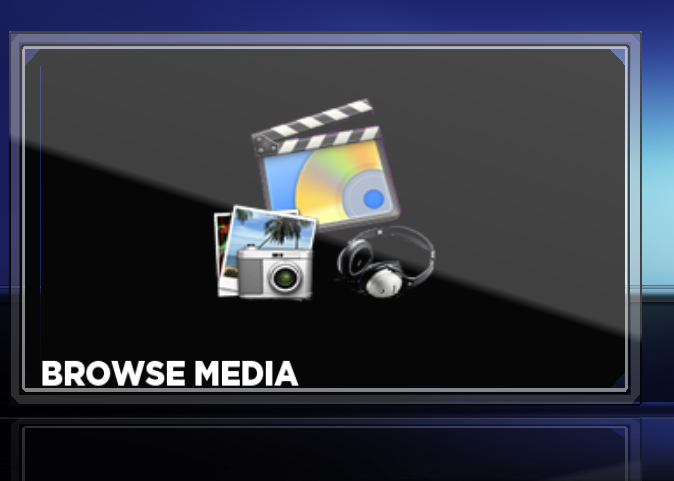

There is a issue in the screenshots:
When there is a BorderThickness > 0, the edges are "cut off" wrongly.

XAML code of the borders (1) and the Canvas using the LinearGradientBrush (2)

            <Border Grid.Column="0" Grid.Row="0" VerticalAlignment="Stretch" HorizontalAlignment="Stretch" x:Name="Layer_14" Margin="0" BorderBrush="Black"
                    CornerRadius="0" BorderThickness="2"/>
            <Border Grid.Column="0" Grid.Row="0" VerticalAlignment="Stretch" HorizontalAlignment="Stretch" x:Name="Layer_5" Margin="2" BorderBrush="#4A808080"
                    CornerRadius="0" BorderThickness="8"/>
            <Border Grid.Column="0" Grid.Row="0" VerticalAlignment="Stretch" HorizontalAlignment="Stretch" x:Name="Layer_1" Margin="11" Opacity="1" BorderBrush="Black"
                    CornerRadius="0" BorderThickness="3"/>
            <Border Grid.Column="0" Grid.Row="0" VerticalAlignment="Stretch" HorizontalAlignment="Stretch" x:Name="Layer_12" Margin="13" Opacity="0.49" BorderBrush="White"
                    CornerRadius="0" BorderThickness="3"/>
            <Border Grid.Column="0" Grid.Row="0" VerticalAlignment="Stretch" HorizontalAlignment="Stretch" x:Name="Layer_14-1" Margin="16" Opacity="1" BorderBrush="Black"
                    CornerRadius="0" BorderThickness="15"/>

            <Control Grid.Column="0" Grid.Row="0" x:Name="ControlPresenter" Margin="31" VerticalAlignment="Stretch" HorizontalAlignment="Stretch"
                Template="{DynamicResource ResourceKey=MakeGlass}" />

            <Canvas Grid.Column="0" Grid.Row="0" VerticalAlignment="Stretch" HorizontalAlignment="Stretch">
              <Canvas.Background>
                <LinearGradientBrush StartPoint="1,0" EndPoint="0.65,0.65">
                  <GradientStop Offset="0" Color="#4AFFFFFF"/>
                  <GradientStop Offset="0.961" Color="#40FFFFFF"/>
                  <GradientStop Offset="1" Color="#00FFFFFF"/>
                </LinearGradientBrush >
              </Canvas.Background>
            </Canvas>



[Albert]

AW: Incorrect rendering of borders with CornerRadius=0 and BorderThickness>0

The borders are drawn correctly; it's the only supported mode for strokes currently. I was about to add more of the modes supported by WPF but I didn't implement it yet; it's much work.

Can you give me more problem about the problem with the reflections?



[morpheus_xx]

AW: Incorrect rendering of borders with CornerRadius=0 and BorderThickness>0

I started to create a patch to add PenLineJoin support to MPF:

Shape.StrokeLineJoin: StrokeLineJoin Property
PenLineJoin enum: PenLineJoin Enumeration

I extended MPF's:
- Shape class to support StrokeLineJoin property (WPF conform)
- Border class to support BorderLineJoin property (not defined in WPF)

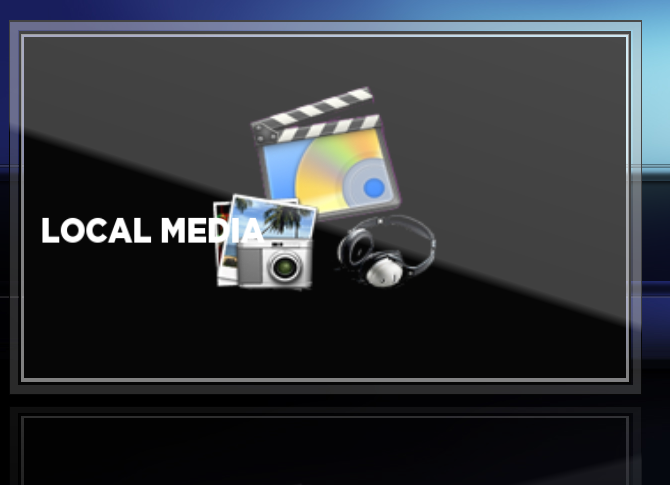

See both images (before + after)



[morpheus_xx]

AW: Incorrect rendering of borders with CornerRadius=0 and BorderThickness>0

I moved the description of the LinearGradient positions to a new thread https://forum.team-mediaportal.com/...-ending-same-positions-wpf-104279/#post828478



[morpheus_xx]

AW: Incorrect rendering of borders with CornerRadius=0 and BorderThickness>0

I've set this to fixed: a newer implementation of Miter has been done and commited.
