Interesting article for power efficient HTPCs | Page 2

Discussion in 'Mainboards / CPU / RAM' started by BugsBunny, May 24, 2011.

  1. Spooky
    • Premium Supporter

    Spooky MP Donator

    Joined:
    February 14, 2005
    Messages:
    1,187
    Likes Received:
    45
    Location:
    void 4tl
    Ratings:
    +47 / 0
    Home Country:
    Austria Austria
    Show System Specs
    Well you said "Acceleration - none" in your previous post ;).



  2. Google AdSense Guest Advertisement



    to hide all adverts.
  3. BugsBunny

    BugsBunny Portal Pro

    Joined:
    April 22, 2006
    Messages:
    210
    Likes Received:
    12
    Location:
    Tirol
    Ratings:
    +13 / 0
    Home Country:
    Austria Austria

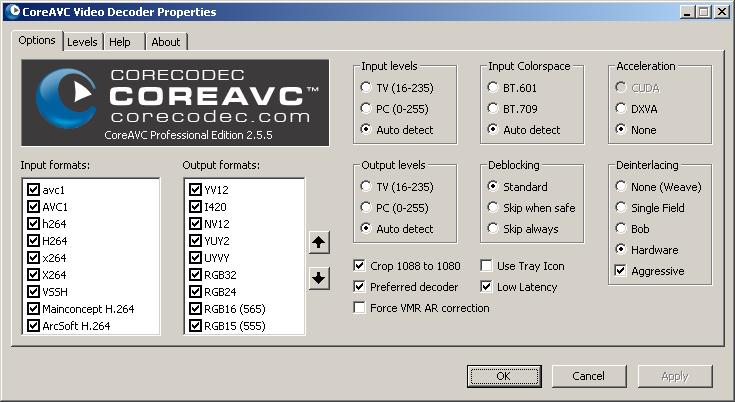

    To clear all doubts - here's the config that does playback 1080i fine with decent deinterlacing:


    Attached Files:

    • config.JPG
      File size:
      58.6 KB
      Uploaded:
      July 18, 2011
      Views:
      337
    • Like Like x 1
  4. BlueMax1916
    • Super User

    BlueMax1916 Super User

    Joined:
    January 29, 2007
    Messages:
    694
    Likes Received:
    61
    Ratings:
    +123 / 1
    Home Country:
    Germany Germany
    Show System Specs
    AW: Re: Interesting article for power efficient HTPCs

    The E350 is capable of displaying stutterfree 1080i with VA de-interlacing. My system does. It is just a matter of the right settings. I can test this with Austrian TV channel ServusTV HD which is broadcasting in 1080i. Until I found the right settings it used to stutter but now it does not anymore. My System is a ASUS E35M1-M PRO mainboard with 8GB of DDR3-1333 RAM running at 1333 MHz via BIOS settings. This helps memory bandwidth for CPU and built-in AMD 6310 video adapter. Operating system is Windows 7 64 Bit. Also I am using SAF 6 with PowerDVD11 as TV Video codec and have activated VA deinterlacing via DXVAChecker. All video settings in AMD CCC are switched off execpt Dynamic Range and Manual DeInterlacing mode Vector Adaptive. Also Pull Down gets activated when selecting VA De-Interlacing.

    With this configuration one should be able to run 1080i VA de-interlaced stutterfree. It took me a while to figure this out though.


    Cheers

    Blue Max

    • Like Like x 2
  5. BugsBunny

    BugsBunny Portal Pro

    Joined:
    April 22, 2006
    Messages:
    210
    Likes Received:
    12
    Location:
    Tirol
    Ratings:
    +13 / 0
    Home Country:
    Austria Austria
  6. BlueMax1916
    • Super User

    BlueMax1916 Super User

    Joined:
    January 29, 2007
    Messages:
    694
    Likes Received:
    61
    Ratings:
    +123 / 1
    Home Country:
    Germany Germany
    Show System Specs
    AW: Interesting article for power efficient HTPCs

    He says he had 100% load on the CPU cores when playing HD content. If so then he did something wrong as I have only 20% on my cores when playing HD content. Maybe he he did not activate DXVA for media processing. Also for some people 100 Euro make a difference.

  7. SimondusMaximus
    • Premium Supporter

    SimondusMaximus MP Donator

    Joined:
    December 27, 2009
    Messages:
    171
    Likes Received:
    26
    Gender:
    Male
    Ratings:
    +26 / 0
    Home Country:
    United Kingdom United Kingdom
    Show System Specs
    Thanks for all the info folks - much appreciated.

    Has anyone produced an i3 mobo with DC power supply? Also what's the overall height of them with the stock cooler? My cases are less than 50mm high.

    The expense is definitely a concern though. 4 clients = 400 euros extra. That's a lot!

  8. BugsBunny

    BugsBunny Portal Pro

    Joined:
    April 22, 2006
    Messages:
    210
    Likes Received:
    12
    Location:
    Tirol
    Ratings:
    +13 / 0
    Home Country:
    Austria Austria
    The overall hight with the stock cooler is ~35 mm (PCB to the top of the cooler). So you have to add ~2mm for the PCB and ~5mm space for the mounting on the back.
    The top of the CPU cooler has about the same hight as the plugged in memory modules.

    • Like Like x 1
  9. BugsBunny

    BugsBunny Portal Pro

    Joined:
    April 22, 2006
    Messages:
    210
    Likes Received:
    12
    Location:
    Tirol
    Ratings:
    +13 / 0
    Home Country:
    Austria Austria
  10. gambler

    gambler Portal Member

    Joined:
    March 7, 2011
    Messages:
    5
    Likes Received:
    0
    Ratings:
    +0 / 0
    Home Country:
    Re: AW: Re: Interesting article for power efficient HTPCs

    I was planing to build my HTPC with 4 gb ram. Is it so important to have 8gb for 1080i/p playback?
    And why ASUS E35M1-M PRO? there are more cheaper Mb on the market withe the same specification. For example Asrock E350M1.

  11. BlueMax1916
    • Super User

    BlueMax1916 Super User

    Joined:
    January 29, 2007
    Messages:
    694
    Likes Received:
    61
    Ratings:
    +123 / 1
    Home Country:
    Germany Germany
    Show System Specs
    AW: Re: AW: Re: Interesting article for power efficient HTPCs

    I aimed for 8 GB of RAM mainly because I plan to use a 4 GB RAM Disk for the Timeshift Buffer to reduce harddrive wear. Also I selected the ASUS MicroATX board because no Mini ITX board offers Firewire/IEEE1394 Ports which I need for my Floppy DTV S2 TV cards. Also I buy ASUS boards since 1997 and I always had positive experience with all of them.
