[fixed] LinearGradients are not starting and ending on same positions as in WPF (1 Viewer)

[morpheus_xx]

The reflexion overlay in screenshots below uses a gradient brush. But the positions do not match the WPF version. The issue is that the WPF-gradient ends in another position than our MP2 gradient.

            <Canvas Grid.Column="0" Grid.Row="0" VerticalAlignment="Stretch" HorizontalAlignment="Stretch">
              <Canvas.Background>
                <LinearGradientBrush StartPoint="[B]1,0[/B]" EndPoint="[B]0.65,0.65[/B]">
                  <GradientStop Offset="0" Color="#4AFFFFFF"/>
                  <GradientStop Offset="0.961" Color="#40FFFFFF"/>
                  <GradientStop Offset="1" Color="#00FFFFFF"/>
                </LinearGradientBrush >
              </Canvas.Background>
            </Canvas>

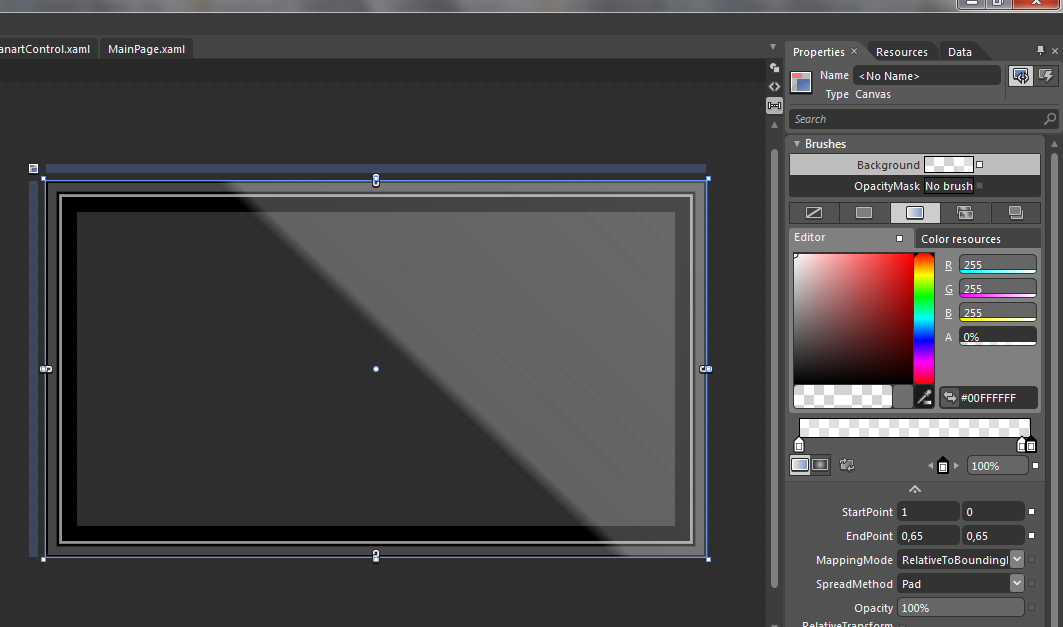

1st attached screenshot is taken from MS Expresion Blend and shows correct bordering and the correct gradient

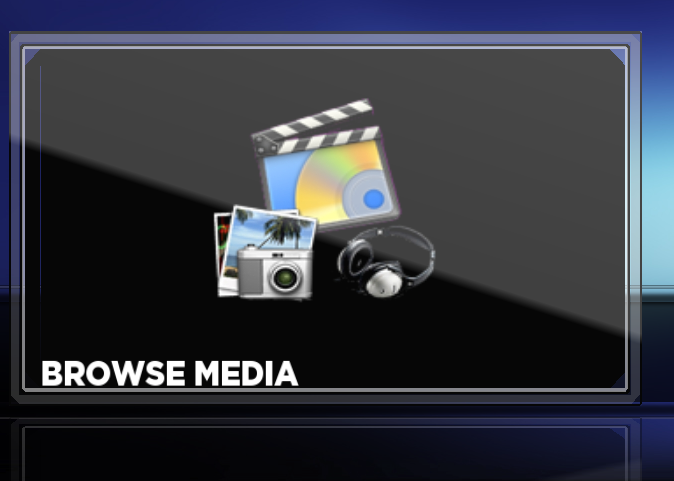

2nd attached screenshot shows the glassy frame overlay rendered in MP2 using exact the same xaml code, the content inside the glassy frame does not matter



[Albert]

AW: LinearGradients are not starting and ending on same positions as in WPF

I'll have a look at it at the weekend.



[Albert]

AW: LinearGradients are not starting and ending on same positions as in WPF

Fixed. Please confirm and set the bug to "fixed". Thanks!



[morpheus_xx]

AW: LinearGradients are not starting and ending on same positions as in WPF

It's working fine now. a lot
