No Satelite Signal (1 Viewer)

[botcherO]

I've installed everything from scratch today, as shown in the Guidlines. But i can't scan for Channels, i get no signal at all!
When i use the bundled Cyberlink PowerCinema, everything is working perfect.
And yes, i checked the Cable.

What do i have to choose in the LNB-Selection? I've tried all "Band"-Settings without any luck.

TV-Server Version: tvengine3-10-02-2007--01-22h--Rev16086
MediaPortal Version: MediaPortal-svn--10-02-2007--01-02-Rev16086
Windows Version: XP Prof SP2
1. TV Card: Hauppauge WinTV Nova-HD-S2
1. TV Card Type: DVB-S
1. TV Card Driver: 2.119.25023.0 (23.01.2007)
Satelite/CableTV Provider: 19,2°E Astra 1C-1H



[ronsonol]

I use the same dvb card, and it works well.
what lnb type do you use. This info in needed.

For a US dishpro, lnb settings, I choose legacy, check override box, lof1 11250, lof2 11250, sw 0. The tuning paramater files sometimes have more transponders listed to accomadate different sats.



[botcherO]

Sorry, but i have nothing about the LNB. It's a standard european (or german) Quad LNB, had worked with all recievers i bought so far.
I don't think that there is a problem with the Values, cause i've tried every possible so far.

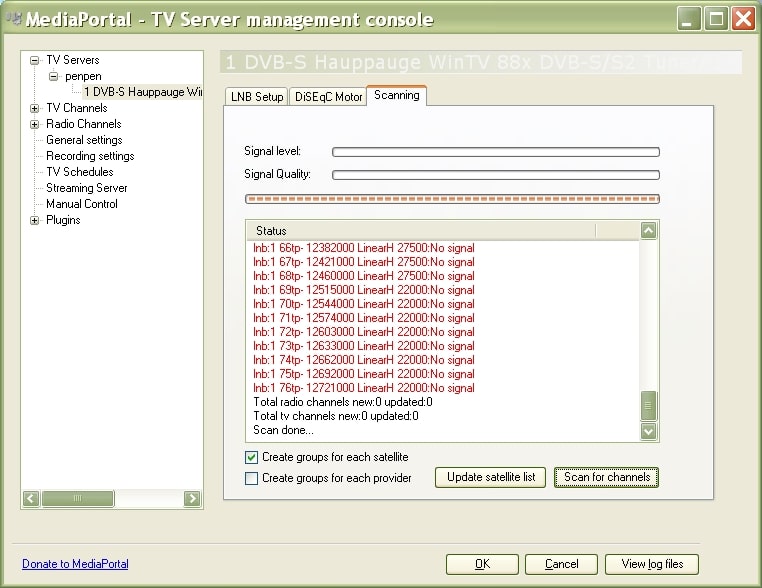

The Signal Quality and Signal level Bars showed nothing, as in the pic i attached.



[ronsonol]

Have you tried LOF1 = 9750 Switch = 11700 LOF2 = 10600. Hopefully, someone experienced with Astra will step up.
Do you use a disecq switch, make sure its set correct port A/A, none etc.



[botcherO]

Have you tried LOF1 = 9750 Switch = 11700 LOF2 = 10600. Hopefully, someone experienced with Astra will step up.
Do you use a disecq switch, make sure its set correct port A/A, none etc.

Thats exactly the values which i get, when i choose the first entry in the dropdown Menu.
I have no Disecq, so i don't activated it.



[theevolution]

Same issue in UK

TV-Server Version: 1.0 RC1
MediaPortal Version: 1.0 RC1
MediaPortal Skin:
Windows Version: XP SP2
CPU Type: AMD Sempron 2800+
HDD: IDE
Memory: 512MB
Motherboard:
Video Card: Radeon 9250
Video Card Driver:
Sound Card:
Sound Card AC3:
Sound Card Driver:
1. TV Card: Hauppauge NOVA-S plus
1. TV Card Type: DVB-S
1. TV Card Driver: 2.122.26109.0 (18.04/2008)
2. TV Card:
2. TV Card Type:
2. TV Card Driver:
3. TV Card:
3. TV Card Type:
3. TV Card Driver:
4. TV Card:
4. TV Card Type:
4. TV Card Driver:
MPEG2 Video Codec:
MPEG2 Audio Codec:
h.264 Video Codec:
Satelite/CableTV Provider: Freesat via Astra UK
HTPC Case:
Cooling:
Power Supply:
Remote: Hauppauge
TV:
TV - HTPC Connection:

I am also having some problems finding channels. The WinTV software works fine and finds pretty much what I would expect but not sure of the settings for scanning with MP.

I have an OCTO LNB on my Skydish with two LNBs connected to the two NOVA cards in my PC. I am configuring just the first card. I assume I am not using DiSEqC so have this set to "None". The satellite are Astra 2A,2B, 2D, Eurobird. I have the LOF1 at 9750000 and LOF2 at 1060000 with an LNBSW of 1170000. These values came from the WinTV software which as I said worked okay.

I tried band KU-Linear and when I scan I see 100% strength but 0% quality and "No signal found" messages.

I tried other bands but not seen much success.

What settings do I have wrong? Any correctly configured users feedback greatly appreciated.



[prodeo]

Hi guys,

Same problem here on my side. I am using an external pinnacle pctv 400e dvb-s card and when I scan I see 100% strength but 0% quality and "No signal found" messages.
I have a dual lnb (monoblock) and have set diseqc to SingleA (Hotbird) and SingleB (Astra).
Has anybody found a solution for this problem yet?



[baldur]

No Satellite Signal

I have the same problem - most transponders tell me "no signal" though other programs are tuning in fine.

edit: If I uncheck the "Enable S2 Tuning Features" all channels are found - even the HD ones...strange...



[prodeo]

Hi everybody,

I've managed to fix the problem on my side .
My LNB setup in my STB and the original software which came with my Pinnacle PCTV DVB-S was Astra 19,2 LNB2 and Hotbird 13 LNB1. I've tried all different variations in the LNB setup within MP (but always resembling the above setup).
After a while I mistakenly clicked the wrong setup which ended up working
What I had to do was set Astra to AB and Hotbird to BB - don't ask me why, but it worked.
Maybe it helps one of you out there who has the same sort of trouble.


TV-Server Version: 1.0RC2
MediaPortal Version: 1.0RC2
MediaPortal Skin: BlueTwo
Windows Version: XP Pro SP3
CPU Type: Intel Celerom 2.7
HDD:
Memory: 768
Motherboard:
Video Card: Intel Extreme Graphics 2
Video Card Driver: latest
Sound Card:
Sound Card AC3:
Sound Card Driver:
1. TV Card: Hauppauge PVR USB2
1. TV Card Type: analog
1. TV Card Driver: latest
2. TV Card: Pinnacle PCTV 400e USB
2. TV Card Type: DVB-S
2. TV Card Driver: latest
3. TV Card:
3. TV Card Type:
3. TV Card Driver:
4. TV Card:
4. TV Card Type:
4. TV Card Driver:
MPEG2 Video Codec: MPV
MPEG2 Audio Codec: MPA
h.264 Video Codec: ffdshow
Satelite/CableTV Provider: Swiss Cable, Astra, Hotbird
HTPC Case: Laptop
Cooling:
Power Supply:
Remote: MCE USB
TV: Thomson LCD 40"
TV - HTPC Connection: PCI
