Unable to see HDHome Dual tuners (1 Viewer)

Cam

Portal Pro
February 28, 2012
360
97
60
Georgia
Home Country
United States of America United States of America
Here are the files for looking for the pausing and pixelation.
The recording are no way near as bad as the streams to the other TV's.
Anything else please let me know.

Thanks


Attachments

  • TV Server 1.jpg
    TV Server 1.jpg
    198.9 KB

mm1352000

Retired Team Member
  • Premium Supporter
  • September 1, 2008
    21,577
    8,224
    Home Country
    New Zealand New Zealand
    Thanks for the log files (y)

    There are certainly continuity errors (discontinuities) showing in both the IPTV source and TsWriter log files. Continuity errors mean chunks of the stream are missing. In general they're most commonly caused by:
    1. Inadequate signal strength/quality.
    2. Overloaded time-shifting HDD (too full, or highly fragmented, or heavily used [often by security software scanning the time-shift files]).
    ...and in your case, network related issues could also play a part since all of your tuners are network-attached tuners. For example, you might have a bad/overloaded network link between your PRIME and/or HDHR and the PC on which TV Server is installed, or maybe you have a driver or configuration issue with your NIC and/or network security software.

    There are other possible causes, but those are the most common.

    The log files can't tell me what the specific cause or cause(s) are. Further investigation must be done to figure out which cause(s) apply for you. However, if I had to guess - based on the frequency of the errors (every 2 to 5 seconds) and the fact that the same continuity errors are present in the IPTV source log as in the TsWriter log - I would guess your problem (at least with streams from the PRIME) is inadequate signal strength/quality, a network-related issue, or something related to the CableCARD or PRIME.


    Is the problem only happening with cable streams (ie. the PRIME), or only with over-the-air streams (ie. the standard HDHR), or both?
    What are the signal strength/level (unit = dBmV) and signal-to-noise ratio (SNR) values shown in the PRIME's webpage when you're observing the problem?


    Cam

    Portal Pro
    February 28, 2012
    360
    97
    60
    Georgia
    Home Country
    United States of America United States of America
    I can watch previously recorded TV series and Movies, (Videos) with no interruption. Only when live TV streams do I have the problem.

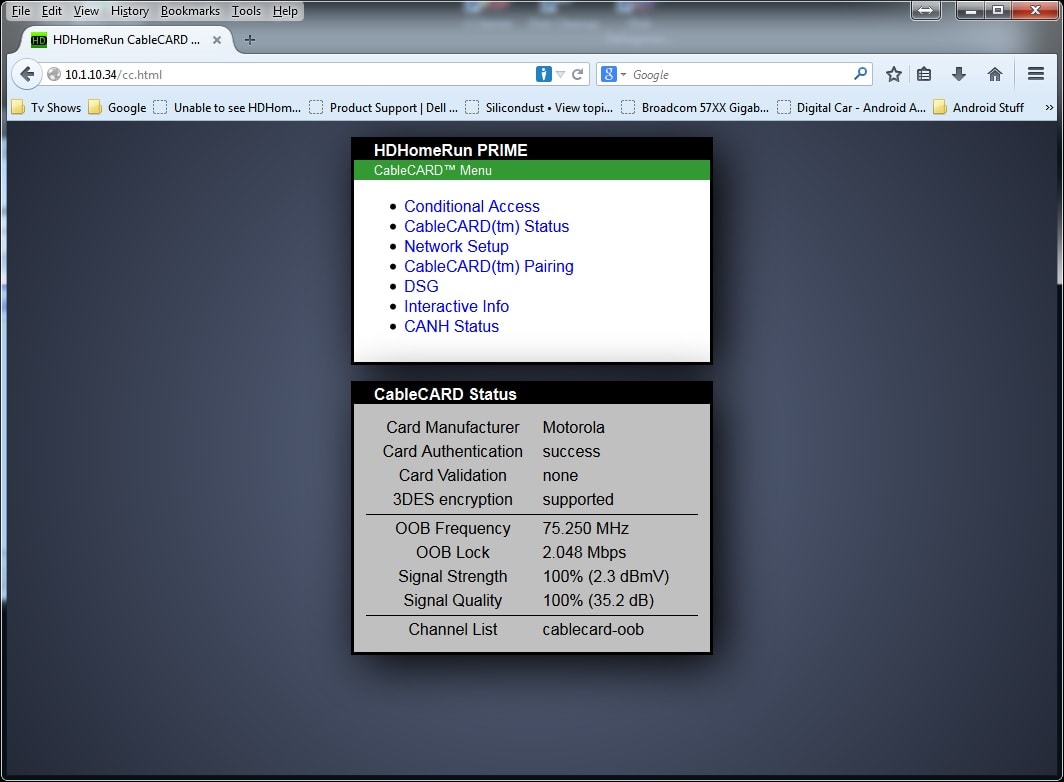

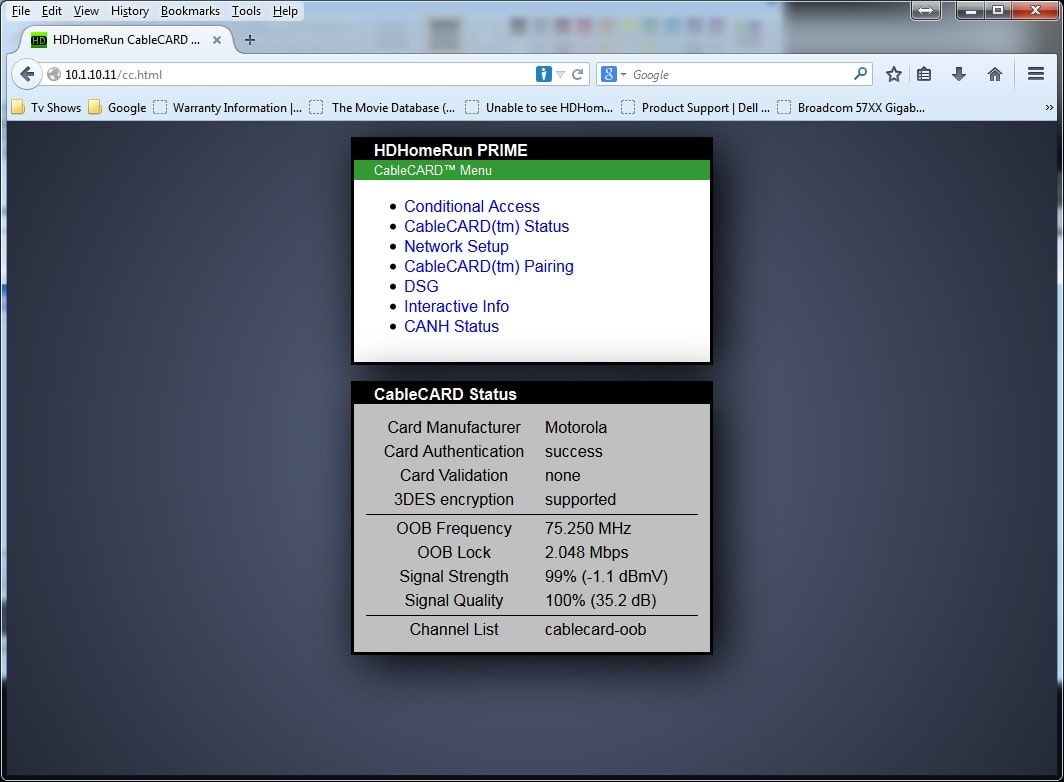

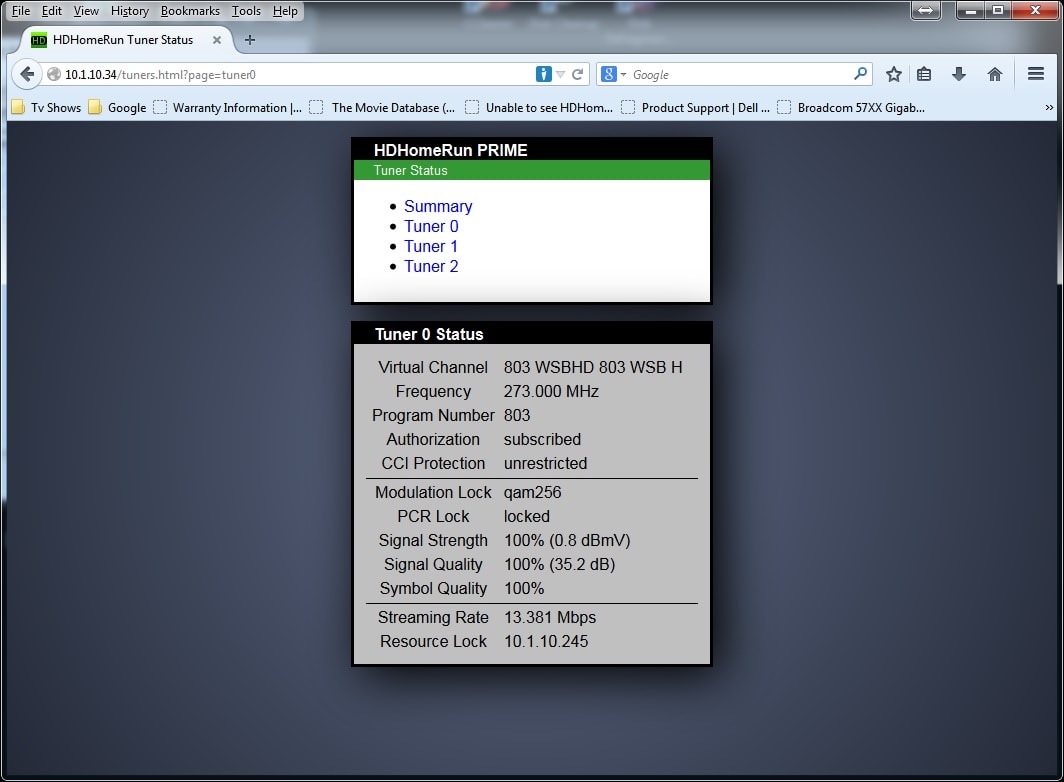

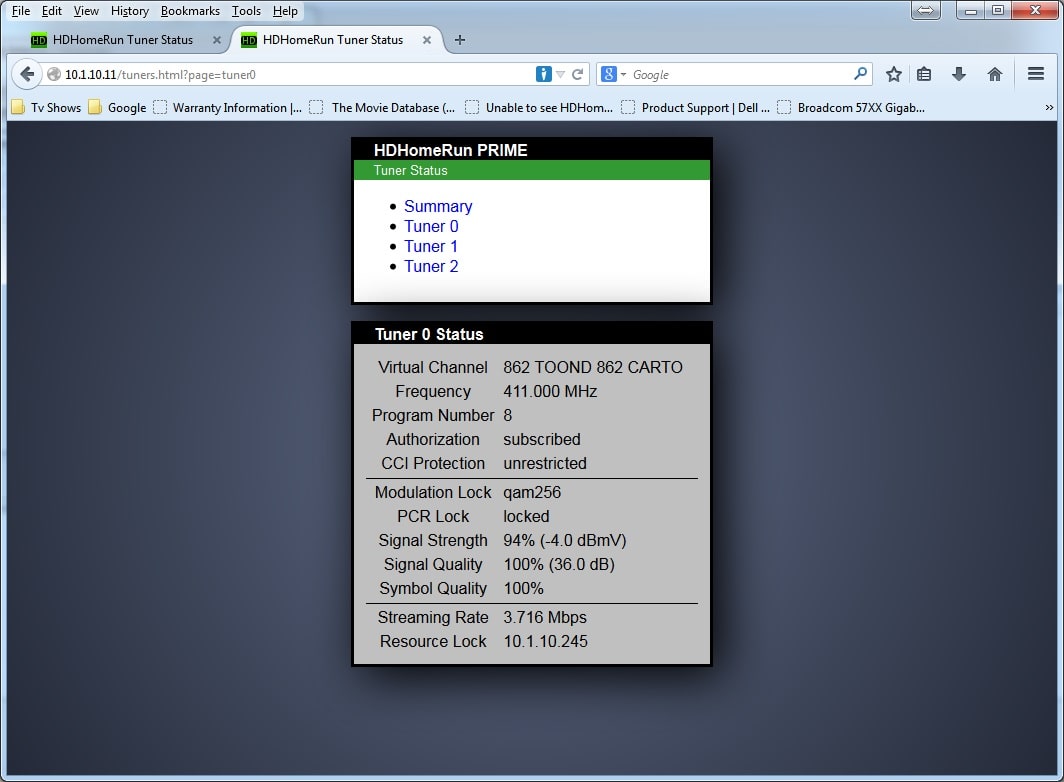

    Attached are pics of the HDHR webpages for signal strength.

    I had planned to unplug except the tuners, TV server and another TV to test. Then start adding to see if I can find the bad link.??

    Thanks[DOUBLEPOST=1453240114][/DOUBLEPOST]This might be a problem[DOUBLEPOST=1453240423][/DOUBLEPOST]I will move all the recorded files off the SSD and see what happens, I was almost sure I had the recording fold on the 1TG drive:oops:


    Attachments

    • HDHR Card 1.jpg
      HDHR Card 1.jpg
      145.2 KB
    • HDHR Card 2.jpg
      HDHR Card 2.jpg
      146.3 KB

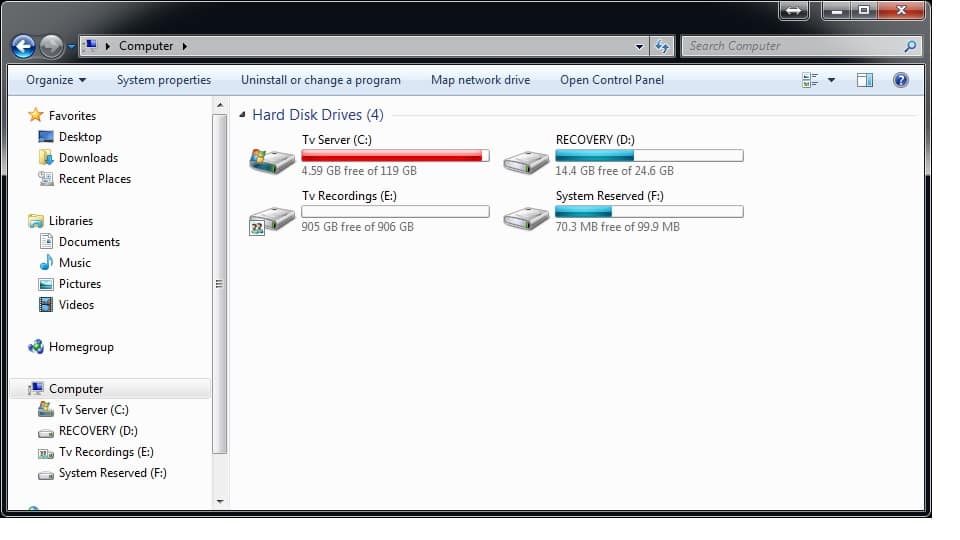

    • TV Server 3.jpg
      TV Server 3.jpg
      90.9 KB
    Last edited:

    mm1352000

    Retired Team Member
  • Premium Supporter
  • September 1, 2008
    21,577
    8,224
    Home Country
    New Zealand New Zealand
    I can watch previously recorded TV series and Movies, (Videos) with no interruption. Only when live TV streams do I have the problem.
    The log files don't agree with this statement.
    For example, looking at a couple of your latest recordings...

    [2016-01-19 09:26:09,901] [Log ] [scheduler thread] [INFO ] - Scheduler: Time to record 863 Nickelodeon HD 9:26 AM-10:00 AM PAW Patrol
    ...
    [2016-01-19 09:26:10,018] [Log ] [scheduler thread] [INFO ] - subch:1 pid:ED7 pcr
    [2016-01-19 09:26:10,019] [Log ] [scheduler thread] [INFO ] - subch:1 pid:32 pmt
    [2016-01-19 09:26:10,019] [Log ] [scheduler thread] [INFO ] - subch:1 pid:ED7 video type:MPEG-2
    [2016-01-19 09:26:10,019] [Log ] [scheduler thread] [INFO ] - subch:1 map pid:ED7 video type:MPEG-2
    [2016-01-19 09:26:10,019] [Log ] [scheduler thread] [INFO ] - subch:1 pid:ED8 audio lang:eng type:AC3
    [2016-01-19 09:26:10,021] [Log ] [scheduler thread] [INFO ] - subch:1 map pid:ED8 audio lang:eng type:AC3
    [2016-01-19 09:26:10,021] [Log ] [scheduler thread] [INFO ] - subch:1 pid:ED9 audio lang:spa type:AC3
    [2016-01-19 09:26:10,021] [Log ] [scheduler thread] [INFO ] - subch:1 map pid:ED9 audio lang:spa type:AC3
    [2016-01-19 09:26:10,021] [Log ] [scheduler thread] [INFO ] - subch:1 pid:EDA type:86


    [2016-01-19 09:26:10,316] [Log ] [scheduler thread] [INFO ] - Scheduler: Time to record 862 Cartoon Network HD 9:26 AM-9:45 AM Wabbit
    ...
    [2016-01-19 09:26:32,304] [Log ] [scheduler thread] [INFO ] - subch:0 pid:E44 pcr
    [2016-01-19 09:26:32,304] [Log ] [scheduler thread] [INFO ] - subch:0 pid:37 pmt
    [2016-01-19 09:26:32,304] [Log ] [scheduler thread] [INFO ] - subch:0 pid:E44 video type:H.264
    [2016-01-19 09:26:32,306] [Log ] [scheduler thread] [INFO ] - subch:0 map pid:E44 video type:H.264
    [2016-01-19 09:26:32,306] [Log ] [scheduler thread] [INFO ] - subch:0 pid:E45 audio lang: type:AC3
    [2016-01-19 09:26:32,306] [Log ] [scheduler thread] [INFO ] - subch:0 map pid:E45 audio lang: type:AC3
    [2016-01-19 09:26:32,306] [Log ] [scheduler thread] [INFO ] - subch:0 pid:E46 audio lang:spa type:AC3
    [2016-01-19 09:26:32,306] [Log ] [scheduler thread] [INFO ] - subch:0 map pid:E46 audio lang:spa type:AC3
    [2016-01-19 09:26:32,307] [Log ] [scheduler thread] [INFO ] - subch:0 pid:E47 type:86


    ...both of these are showing continuity errors:
    [collapse]
    [2016-01-19 09:26:35,498] [77f3548] [1570] - Recorder:pid ed7 Continuity error... d ( prev b ) - bad signal?
    [2016-01-19 09:26:35,498] [77f3548] [1570] - Recorder:pid ed7 Continuity error... d ( prev b ) - bad signal?
    [2016-01-19 09:26:40,828] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 8 ( prev 0 ) - bad signal?
    [2016-01-19 09:26:40,828] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 8 ( prev 0 ) - bad signal?
    [2016-01-19 09:26:41,984] [77f3548] [1570] - Recorder:pid ed7 Continuity error... f ( prev 7 ) - bad signal?
    [2016-01-19 09:26:41,984] [77f3548] [1570] - Recorder:pid ed7 Continuity error... f ( prev 7 ) - bad signal?
    [2016-01-19 09:26:49,850] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 7 ( prev 0 ) - bad signal?
    [2016-01-19 09:26:49,850] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 7 ( prev 0 ) - bad signal?
    [2016-01-19 09:26:49,850] [77f3548] [1570] - Recorder:pid ed8 Continuity error... c ( prev a ) - bad signal?
    [2016-01-19 09:26:49,850] [77f3548] [1570] - Recorder:pid ed8 Continuity error... c ( prev a ) - bad signal?
    [2016-01-19 09:26:51,804] [77f3548] [1728] - Recorder:pid e44 Continuity error... 0 ( prev 9 ) - bad signal?
    [2016-01-19 09:26:51,804] [77f3548] [1728] - Recorder:pid e45 Continuity error... 7 ( prev 5 ) - bad signal?
    [2016-01-19 09:27:01,826] [77f3548] [1570] - Recorder:pid ed7 Continuity error... e ( prev 6 ) - bad signal?
    [2016-01-19 09:27:01,826] [77f3548] [1570] - Recorder:pid ed7 Continuity error... e ( prev 6 ) - bad signal?
    [2016-01-19 09:27:03,362] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 6 ( prev e ) - bad signal?
    [2016-01-19 09:27:03,362] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 6 ( prev e ) - bad signal?
    [2016-01-19 09:27:07,151] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 6 ( prev 0 ) - bad signal?
    [2016-01-19 09:27:07,151] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 6 ( prev 0 ) - bad signal?
    [2016-01-19 09:27:07,151] [77f3548] [1570] - Recorder:pid ed8 Continuity error... a ( prev 7 ) - bad signal?
    [2016-01-19 09:27:07,151] [77f3548] [1570] - Recorder:pid ed8 Continuity error... a ( prev 7 ) - bad signal?
    [2016-01-19 09:27:09,717] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 8 ( prev 0 ) - bad signal?
    [2016-01-19 09:27:09,718] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 8 ( prev 0 ) - bad signal?
    [2016-01-19 09:27:18,699] [77f3548] [1728] - Recorder:pid e44 Continuity error... 6 ( prev e ) - bad signal?
    [2016-01-19 09:27:21,371] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 6 ( prev e ) - bad signal?
    [2016-01-19 09:27:21,371] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 6 ( prev e ) - bad signal?
    [2016-01-19 09:27:27,014] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 9 ( prev 1 ) - bad signal?
    [2016-01-19 09:27:27,014] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 9 ( prev 1 ) - bad signal?
    [2016-01-19 09:27:28,507] [77f3548] [1728] - Recorder:pid e46 Continuity error... 1 ( prev f ) - bad signal?
    [2016-01-19 09:27:28,507] [77f3548] [1728] - Recorder:pid e45 Continuity error... a ( prev 8 ) - bad signal?
    [2016-01-19 09:27:28,507] [77f3548] [1728] - Recorder:pid e44 Continuity error... 8 ( prev 2 ) - bad signal?
    [2016-01-19 09:27:28,802] [77f3548] [1728] - Recorder:pid e44 Continuity error... e ( prev 7 ) - bad signal?
    [2016-01-19 09:27:38,997] [77f3548] [1728] - Recorder:pid e44 Continuity error... 5 ( prev d ) - bad signal?
    [2016-01-19 09:28:00,841] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 3 ( prev b ) - bad signal?
    [2016-01-19 09:28:00,841] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 3 ( prev b ) - bad signal?
    [2016-01-19 09:28:01,495] [77f3548] [1728] - Recorder:pid e45 Continuity error... 4 ( prev 2 ) - bad signal?
    [2016-01-19 09:28:02,381] [77f3548] [1570] - Recorder:pid ed7 Continuity error... d ( prev 5 ) - bad signal?
    [2016-01-19 09:28:02,381] [77f3548] [1570] - Recorder:pid ed7 Continuity error... d ( prev 5 ) - bad signal?
    [2016-01-19 09:28:06,210] [77f3548] [1728] - Recorder:pid e44 Continuity error... b ( prev 3 ) - bad signal?
    [2016-01-19 09:28:08,657] [77f3548] [1570] - Recorder:pid ed7 Continuity error... a ( prev 3 ) - bad signal?
    [2016-01-19 09:28:08,657] [77f3548] [1570] - Recorder:pid ed7 Continuity error... a ( prev 3 ) - bad signal?
    [2016-01-19 09:28:08,658] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 3 ( prev 1 ) - bad signal?
    [2016-01-19 09:28:08,658] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 3 ( prev 1 ) - bad signal?
    [2016-01-19 09:28:13,505] [77f3548] [1728] - Recorder:pid e44 Continuity error... 9 ( prev 1 ) - bad signal?
    [2016-01-19 09:28:18,361] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 4 ( prev c ) - bad signal?
    [2016-01-19 09:28:18,361] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 4 ( prev c ) - bad signal?
    [2016-01-19 09:28:21,607] [77f3548] [1570] - Recorder:pid ed7 Continuity error... e ( prev 7 ) - bad signal?
    [2016-01-19 09:28:21,607] [77f3548] [1570] - Recorder:pid ed7 Continuity error... e ( prev 7 ) - bad signal?
    [2016-01-19 09:28:21,607] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 5 ( prev 3 ) - bad signal?
    [2016-01-19 09:28:21,607] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 5 ( prev 3 ) - bad signal?
    [2016-01-19 09:28:24,334] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 8 ( prev 0 ) - bad signal?
    [2016-01-19 09:28:24,334] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 8 ( prev 0 ) - bad signal?
    [2016-01-19 09:28:30,045] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 2 ( prev a ) - bad signal?
    [2016-01-19 09:28:30,045] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 2 ( prev a ) - bad signal?
    [2016-01-19 09:28:30,542] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 0 ( prev b ) - bad signal?
    [2016-01-19 09:28:30,542] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 0 ( prev b ) - bad signal?
    [2016-01-19 09:28:30,542] [77f3548] [1570] - Recorder:pid ed8 Continuity error... f ( prev c ) - bad signal?
    [2016-01-19 09:28:30,542] [77f3548] [1570] - Recorder:pid ed8 Continuity error... f ( prev c ) - bad signal?
    [2016-01-19 09:28:30,542] [77f3548] [1570] - Recorder:pid ed9 Continuity error... 1 ( prev f ) - bad signal?
    [2016-01-19 09:28:30,542] [77f3548] [1570] - Recorder:pid ed9 Continuity error... 1 ( prev f ) - bad signal?
    [2016-01-19 09:28:31,795] [77f3548] [1728] - Recorder:pid e44 Continuity error... a ( prev 2 ) - bad signal?
    [2016-01-19 09:28:33,508] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 8 ( prev 0 ) - bad signal?
    [2016-01-19 09:28:33,508] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 8 ( prev 0 ) - bad signal?
    [2016-01-19 09:28:34,523] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 4 ( prev c ) - bad signal?
    [2016-01-19 09:28:34,523] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 4 ( prev c ) - bad signal?
    [2016-01-19 09:28:38,984] [77f3548] [1728] - Recorder:pid e44 Continuity error... 5 ( prev d ) - bad signal?
    [2016-01-19 09:28:43,327] [77f3548] [1728] - Recorder:pid e44 Continuity error... 0 ( prev 8 ) - bad signal?
    [2016-01-19 09:28:51,497] [77f3548] [1728] - Recorder:pid e44 Continuity error... e ( prev 6 ) - bad signal?
    [2016-01-19 09:28:56,357] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 1 ( prev 9 ) - bad signal?
    [2016-01-19 09:28:56,357] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 1 ( prev 9 ) - bad signal?
    [2016-01-19 09:28:56,432] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 1 ( prev 9 ) - bad signal?
    [2016-01-19 09:28:56,433] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 1 ( prev 9 ) - bad signal?
    [2016-01-19 09:29:01,649] [77f3548] [1570] - Recorder:pid ed7 Continuity error... d ( prev 5 ) - bad signal?
    [2016-01-19 09:29:01,649] [77f3548] [1570] - Recorder:pid ed7 Continuity error... d ( prev 5 ) - bad signal?
    [2016-01-19 09:29:02,111] [77f3548] [1728] - Recorder:pid e46 Continuity error... 0 ( prev e ) - bad signal?
    [2016-01-19 09:29:02,111] [77f3548] [1728] - Recorder:pid e45 Continuity error... b ( prev 4 ) - bad signal?
    [2016-01-19 09:29:10,846] [77f3548] [1728] - Recorder:pid e44 Continuity error... b ( prev 3 ) - bad signal?
    [2016-01-19 09:29:17,928] [77f3548] [1728] - Recorder:pid e44 Continuity error... f ( prev 8 ) - bad signal?
    [2016-01-19 09:29:22,681] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 3 ( prev d ) - bad signal?
    [2016-01-19 09:29:22,681] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 3 ( prev d ) - bad signal?
    [2016-01-19 09:29:22,683] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 8 ( prev 6 ) - bad signal?
    [2016-01-19 09:29:22,683] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 8 ( prev 6 ) - bad signal?
    [2016-01-19 09:29:25,931] [77f3548] [1728] - Recorder:pid e44 Continuity error... e ( prev 8 ) - bad signal?
    [2016-01-19 09:29:25,931] [77f3548] [1728] - Recorder:pid e45 Continuity error... 9 ( prev 7 ) - bad signal?
    [2016-01-19 09:29:25,931] [77f3548] [1728] - Recorder:pid e46 Continuity error... 8 ( prev 6 ) - bad signal?
    [2016-01-19 09:29:27,869] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 3 ( prev c ) - bad signal?
    [2016-01-19 09:29:27,869] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 3 ( prev c ) - bad signal?
    [2016-01-19 09:29:27,869] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 9 ( prev 7 ) - bad signal?
    [2016-01-19 09:29:27,869] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 9 ( prev 7 ) - bad signal?
    [2016-01-19 09:29:34,767] [77f3548] [1728] - Recorder:pid e44 Continuity error... 2 ( prev a ) - bad signal?
    [2016-01-19 09:29:38,128] [77f3548] [1570] - Recorder:pid ed7 Continuity error... c ( prev 5 ) - bad signal?
    [2016-01-19 09:29:38,128] [77f3548] [1570] - Recorder:pid ed7 Continuity error... c ( prev 5 ) - bad signal?
    [2016-01-19 09:29:38,128] [77f3548] [1570] - Recorder:pid ed8 Continuity error... d ( prev b ) - bad signal?
    [2016-01-19 09:29:38,128] [77f3548] [1570] - Recorder:pid ed8 Continuity error... d ( prev b ) - bad signal?
    [2016-01-19 09:29:45,400] [77f3548] [1728] - Recorder:pid e44 Continuity error... 6 ( prev e ) - bad signal?
    [2016-01-19 09:29:47,918] [77f3548] [1728] - Recorder:pid e44 Continuity error... 8 ( prev 0 ) - bad signal?
    [2016-01-19 09:29:49,167] [77f3548] [1728] - Recorder:pid e44 Continuity error... 1 ( prev 9 ) - bad signal?
    [2016-01-19 09:29:56,231] [77f3548] [1728] - Recorder:pid e44 Continuity error... a ( prev 2 ) - bad signal?
    [2016-01-19 09:29:58,508] [77f3548] [1728] - Recorder:pid e44 Continuity error... d ( prev 5 ) - bad signal?
    [2016-01-19 09:30:07,492] [77f3548] [1728] - Recorder:pid e44 Continuity error... 0 ( prev 8 ) - bad signal?
    [2016-01-19 09:30:08,251] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 7 ( prev f ) - bad signal?
    [2016-01-19 09:30:08,251] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 7 ( prev f ) - bad signal?
    [2016-01-19 09:30:08,418] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 9 ( prev 1 ) - bad signal?
    [2016-01-19 09:30:08,418] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 9 ( prev 1 ) - bad signal?
    [2016-01-19 09:30:09,134] [77f3548] [1728] - Recorder:pid e44 Continuity error... 6 ( prev e ) - bad signal?
    [2016-01-19 09:30:12,230] [77f3548] [1570] - Recorder:pid ed7 Continuity error... a ( prev 3 ) - bad signal?
    [2016-01-19 09:30:12,230] [77f3548] [1570] - Recorder:pid ed7 Continuity error... a ( prev 3 ) - bad signal?
    [2016-01-19 09:30:12,230] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 8 ( prev 6 ) - bad signal?
    [2016-01-19 09:30:12,230] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 8 ( prev 6 ) - bad signal?
    [2016-01-19 09:30:17,053] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 9 ( prev 1 ) - bad signal?
    [2016-01-19 09:30:17,053] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 9 ( prev 1 ) - bad signal?
    [2016-01-19 09:30:17,095] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 3 ( prev c ) - bad signal?
    [2016-01-19 09:30:17,095] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 3 ( prev c ) - bad signal?
    [2016-01-19 09:30:17,095] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 5 ( prev 3 ) - bad signal?
    [2016-01-19 09:30:17,095] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 5 ( prev 3 ) - bad signal?
    [2016-01-19 09:30:18,088] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 5 ( prev f ) - bad signal?
    [2016-01-19 09:30:18,088] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 5 ( prev f ) - bad signal?
    [2016-01-19 09:30:18,088] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 7 ( prev 5 ) - bad signal?
    [2016-01-19 09:30:18,088] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 7 ( prev 5 ) - bad signal?
    [2016-01-19 09:30:18,088] [77f3548] [1570] - Recorder:pid ed9 Continuity error... 6 ( prev 4 ) - bad signal?
    [2016-01-19 09:30:18,088] [77f3548] [1570] - Recorder:pid ed9 Continuity error... 6 ( prev 4 ) - bad signal?
    [2016-01-19 09:30:26,504] [77f3548] [1570] - Recorder:pid ed7 Continuity error... a ( prev 2 ) - bad signal?
    [2016-01-19 09:30:26,504] [77f3548] [1570] - Recorder:pid ed7 Continuity error... a ( prev 2 ) - bad signal?
    [2016-01-19 09:30:27,492] [77f3548] [1728] - Recorder:pid e44 Continuity error... 3 ( prev b ) - bad signal?
    [2016-01-19 09:30:38,865] [77f3548] [1570] - Recorder:pid ed7 Continuity error... a ( prev 2 ) - bad signal?
    [2016-01-19 09:30:38,865] [77f3548] [1570] - Recorder:pid ed7 Continuity error... a ( prev 2 ) - bad signal?
    [2016-01-19 09:30:40,699] [77f3548] [1570] - Recorder:pid ed7 Continuity error... c ( prev 4 ) - bad signal?
    [2016-01-19 09:30:40,699] [77f3548] [1570] - Recorder:pid ed7 Continuity error... c ( prev 4 ) - bad signal?
    [2016-01-19 09:30:43,000] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 8 ( prev 0 ) - bad signal?
    [2016-01-19 09:30:43,000] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 8 ( prev 0 ) - bad signal?
    [2016-01-19 09:30:45,052] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 9 ( prev 1 ) - bad signal?
    [2016-01-19 09:30:45,052] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 9 ( prev 1 ) - bad signal?
    [2016-01-19 09:30:45,055] [77f3548] [1728] - Recorder:pid e44 Continuity error... 8 ( prev 1 ) - bad signal?
    [2016-01-19 09:30:45,055] [77f3548] [1728] - Recorder:pid e45 Continuity error... d ( prev b ) - bad signal?
    [2016-01-19 09:30:49,484] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 8 ( prev 2 ) - bad signal?
    [2016-01-19 09:30:49,484] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 8 ( prev 2 ) - bad signal?
    [2016-01-19 09:30:49,484] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 9 ( prev 7 ) - bad signal?
    [2016-01-19 09:30:49,484] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 9 ( prev 7 ) - bad signal?
    [2016-01-19 09:30:49,484] [77f3548] [1570] - Recorder:pid ed9 Continuity error... f ( prev d ) - bad signal?
    [2016-01-19 09:30:49,484] [77f3548] [1570] - Recorder:pid ed9 Continuity error... f ( prev d ) - bad signal?
    [2016-01-19 09:31:06,586] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 4 ( prev c ) - bad signal?
    [2016-01-19 09:31:06,586] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 4 ( prev c ) - bad signal?
    [2016-01-19 09:31:11,777] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 6 ( prev e ) - bad signal?
    [2016-01-19 09:31:11,777] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 6 ( prev e ) - bad signal?
    [2016-01-19 09:31:17,935] [77f3548] [1570] - Recorder:pid ed9 Continuity error... 5 ( prev 3 ) - bad signal?
    [2016-01-19 09:31:17,935] [77f3548] [1570] - Recorder:pid ed9 Continuity error... 5 ( prev 3 ) - bad signal?
    [2016-01-19 09:31:17,935] [77f3548] [1570] - Recorder:pid ed7 Continuity error... a ( prev 4 ) - bad signal?
    [2016-01-19 09:31:17,935] [77f3548] [1570] - Recorder:pid ed7 Continuity error... a ( prev 4 ) - bad signal?
    [2016-01-19 09:31:17,935] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 7 ( prev 5 ) - bad signal?
    [2016-01-19 09:31:17,935] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 7 ( prev 5 ) - bad signal?
    [2016-01-19 09:31:19,718] [77f3548] [1728] - Recorder:pid e44 Continuity error... 2 ( prev a ) - bad signal?
    [2016-01-19 09:31:32,381] [77f3548] [1570] - Recorder:pid ed7 Continuity error... a ( prev 2 ) - bad signal?
    [2016-01-19 09:31:32,381] [77f3548] [1570] - Recorder:pid ed7 Continuity error... a ( prev 2 ) - bad signal?
    [2016-01-19 09:31:38,814] [77f3548] [1570] - Recorder:pid ed7 Continuity error... e ( prev 6 ) - bad signal?
    [2016-01-19 09:31:38,814] [77f3548] [1570] - Recorder:pid ed7 Continuity error... e ( prev 6 ) - bad signal?
    [2016-01-19 09:31:39,150] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 6 ( prev e ) - bad signal?
    [2016-01-19 09:31:39,150] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 6 ( prev e ) - bad signal?
    [2016-01-19 09:31:41,183] [77f3548] [1728] - Recorder:pid e44 Continuity error... d ( prev 6 ) - bad signal?
    [2016-01-19 09:31:41,183] [77f3548] [1728] - Recorder:pid e45 Continuity error... 7 ( prev 5 ) - bad signal?
    [2016-01-19 09:31:45,044] [77f3548] [1728] - Recorder:pid e44 Continuity error... e ( prev 6 ) - bad signal?
    [2016-01-19 09:31:55,948] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 2 ( prev a ) - bad signal?
    [2016-01-19 09:31:55,948] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 2 ( prev a ) - bad signal?
    [2016-01-19 09:32:02,342] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 7 ( prev f ) - bad signal?
    [2016-01-19 09:32:02,342] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 7 ( prev f ) - bad signal?
    [2016-01-19 09:32:03,974] [77f3548] [1570] - Recorder:pid ed7 Continuity error... f ( prev 7 ) - bad signal?
    [2016-01-19 09:32:03,974] [77f3548] [1570] - Recorder:pid ed7 Continuity error... f ( prev 7 ) - bad signal?
    [2016-01-19 09:32:04,520] [77f3548] [1570] - Recorder:pid ed7 Continuity error... b ( prev 3 ) - bad signal?
    [2016-01-19 09:32:04,520] [77f3548] [1570] - Recorder:pid ed7 Continuity error... b ( prev 3 ) - bad signal?
    [2016-01-19 09:32:05,011] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 9 ( prev 2 ) - bad signal?
    [2016-01-19 09:32:05,011] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 9 ( prev 2 ) - bad signal?
    [2016-01-19 09:32:05,024] [77f3548] [1570] - Recorder:pid ed7 Continuity error... c ( prev 4 ) - bad signal?
    [2016-01-19 09:32:05,024] [77f3548] [1570] - Recorder:pid ed7 Continuity error... c ( prev 4 ) - bad signal?
    [2016-01-19 09:32:09,389] [77f3548] [1570] - Recorder:pid ed7 Continuity error... f ( prev 8 ) - bad signal?
    [2016-01-19 09:32:09,389] [77f3548] [1570] - Recorder:pid ed7 Continuity error... f ( prev 8 ) - bad signal?
    [2016-01-19 09:32:09,389] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 6 ( prev 4 ) - bad signal?
    [2016-01-19 09:32:09,389] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 6 ( prev 4 ) - bad signal?
    [2016-01-19 09:32:10,843] [77f3548] [1570] - Recorder:pid ed7 Continuity error... d ( prev 5 ) - bad signal?
    [2016-01-19 09:32:10,843] [77f3548] [1570] - Recorder:pid ed7 Continuity error... d ( prev 5 ) - bad signal?
    [2016-01-19 09:32:20,024] [77f3548] [1570] - Recorder:pid ed7 Continuity error... c ( prev 5 ) - bad signal?
    [2016-01-19 09:32:20,024] [77f3548] [1570] - Recorder:pid ed7 Continuity error... c ( prev 5 ) - bad signal?
    [2016-01-19 09:32:20,024] [77f3548] [1570] - Recorder:pid ed8 Continuity error... f ( prev d ) - bad signal?
    [2016-01-19 09:32:20,024] [77f3548] [1570] - Recorder:pid ed8 Continuity error... f ( prev d ) - bad signal?
    [2016-01-19 09:32:27,252] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 9 ( prev 1 ) - bad signal?
    [2016-01-19 09:32:27,252] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 9 ( prev 1 ) - bad signal?
    [2016-01-19 09:32:29,006] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 7 ( prev 0 ) - bad signal?
    [2016-01-19 09:32:29,006] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 7 ( prev 0 ) - bad signal?
    [2016-01-19 09:32:29,006] [77f3548] [1570] - Recorder:pid ed9 Continuity error... 6 ( prev 4 ) - bad signal?
    [2016-01-19 09:32:29,006] [77f3548] [1570] - Recorder:pid ed9 Continuity error... 6 ( prev 4 ) - bad signal?
    [2016-01-19 09:32:29,977] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 1 ( prev 9 ) - bad signal?
    [2016-01-19 09:32:29,977] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 1 ( prev 9 ) - bad signal?
    [2016-01-19 09:32:32,186] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 8 ( prev 0 ) - bad signal?
    [2016-01-19 09:32:32,186] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 8 ( prev 0 ) - bad signal?
    [2016-01-19 09:32:32,587] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 0 ( prev 8 ) - bad signal?
    [2016-01-19 09:32:32,587] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 0 ( prev 8 ) - bad signal?
    [2016-01-19 09:32:35,284] [77f3548] [1570] - Recorder:pid ed7 Continuity error... c ( prev 4 ) - bad signal?
    [2016-01-19 09:32:35,284] [77f3548] [1570] - Recorder:pid ed7 Continuity error... c ( prev 4 ) - bad signal?
    [2016-01-19 09:32:36,815] [77f3548] [1728] - Recorder:pid e44 Continuity error... 6 ( prev e ) - bad signal?
    [2016-01-19 09:32:43,248] [77f3548] [1728] - Recorder:pid e45 Continuity error... 0 ( prev a ) - bad signal?
    [2016-01-19 09:32:43,248] [77f3548] [1728] - Recorder:pid e46 Continuity error... f ( prev c ) - bad signal?
    [2016-01-19 09:32:43,249] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 1 ( prev 9 ) - bad signal?
    [2016-01-19 09:32:43,249] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 1 ( prev 9 ) - bad signal?
    [2016-01-19 09:32:43,518] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 9 ( prev 1 ) - bad signal?
    [2016-01-19 09:32:43,518] [77f3548] [1570] - Recorder:pid ed7 Continuity error... 9 ( prev 1 ) - bad signal?
    [2016-01-19 09:32:45,212] [77f3548] [1570] - Recorder:pid ed7 Continuity error... d ( prev 5 ) - bad signal?
    [2016-01-19 09:32:45,212] [77f3548] [1570] - Recorder:pid ed7 Continuity error... d ( prev 5 ) - bad signal?
    [2016-01-19 09:32:47,748] [77f3548] [1728] - Recorder:pid e44 Continuity error... c ( prev 4 ) - bad signal?
    [2016-01-19 09:32:56,494] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 8 ( prev 3 ) - bad signal?
    [2016-01-19 09:32:56,494] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 8 ( prev 3 ) - bad signal?
    [2016-01-19 09:32:56,495] [77f3548] [1570] - Recorder:pid ed9 Continuity error... f ( prev b ) - bad signal?
    [2016-01-19 09:32:56,495] [77f3548] [1570] - Recorder:pid ed9 Continuity error... f ( prev b ) - bad signal?
    [2016-01-19 09:32:57,669] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 7 ( prev 4 ) - bad signal?
    [2016-01-19 09:32:57,669] [77f3548] [1570] - Recorder:pid ed8 Continuity error... 7 ( prev 4 ) - bad signal?
    [2016-01-19 09:32:57,669] [77f3548] [1570] - Recorder:pid ed9 Continuity error... 6 ( prev 4 ) - bad signal?
    [2016-01-19 09:32:57,669] [77f3548] [1570] - Recorder:pid ed9 Continuity error... 6 ( prev 4 ) - bad signal?
    [2016-01-19 09:33:02,124] [77f3548] [1570] - Recorder:pid ed7 Continuity error... c ( prev 5 ) - bad signal?
    [2016-01-19 09:33:02,124] [77f3548] [1570] - Recorder:pid ed7 Continuity error... c ( prev 5 ) - bad signal?
    [2016-01-19 09:33:02,124] [77f3548] [1570] - Recorder:pid ed8 Continuity error... d ( prev b ) - bad signal?
    [2016-01-19 09:33:02,124] [77f3548] [1570] - Recorder:pid ed8 Continuity error... d ( prev b ) - bad signal?
    [2016-01-19 09:33:06,761] [77f3548] [1728] - Recorder:pid e44 Continuity error... 5 ( prev d ) - bad signal?[/collapse]


    So, is it possible that you're mistaken?
    The glitches in recordings may appear less obvious, but they appear to be still present.

    Attached are pics of the HDHR webpages for signal strength.
    The signal there does look fine... however that's the information for the out-of-band (OOB) channel, which is used for delivering lineup info etc. I was asking about the in-band signal/strength quality. Sorry, I should have been more specific. Have a look in the tuner page/section rather than the CableCARD page/section.

    I had planned to unplug except the tuners, TV server and another TV to test. Then start adding to see if I can find the bad link.??
    One thing at a time. :)
    We need to check the signal strength/quality readings first. Also, you didn't answer my question about whether streams from the regular HDHR are affected:
    Is the problem only happening with cable streams (ie. the PRIME), or only with over-the-air streams (ie. the standard HDHR), or both?


    Cam

    Portal Pro
    February 28, 2012
    360
    97
    60
    Georgia
    Home Country
    United States of America United States of America
    So, is it possible that you're mistaken?
    Currently I noticed some pixelation ever-so often, so like you say less noticeable for recording
    Videos, like movies TV recorded before seem to be fine. So I guessing that the flow over the network is fine.

    The signal there does look fine... however that's the information for the out-of-band (OOB) channel, which is used for delivering lineup info etc. I was asking about the in-band signal/strength quality. Sorry, I should have been more specific. Have a look in the tuner page/section rather than the CableCARD page/section.
    I'm still learning, and would like to learn as much as possible.
    Hope this is what you need.

    One thing at a time.
    No problem, I was going to wait on the expert.


    Gave you another log file, since I fixed the recording destination.


    Attachments

    • HDHR Tuner 1.jpg
      HDHR Tuner 1.jpg
      141.2 KB
    • HDHR Tuner 2.jpg
      HDHR Tuner 2.jpg
      146.1 KB

    mm1352000

    Retired Team Member
  • Premium Supporter
  • September 1, 2008
    21,577
    8,224
    Home Country
    New Zealand New Zealand
    The screenshots look okay. Still no answer to my other question, and the log files seem the same as before.


    Cam

    Portal Pro
    February 28, 2012
    360
    97
    60
    Georgia
    Home Country
    United States of America United States of America
    I was just thinking the drivers for the NIC and the Chipsets were done by dells find the best drivers program.
    if this helps


    Cam

    Portal Pro
    February 28, 2012
    360
    97
    60
    Georgia
    Home Country
    United States of America United States of America

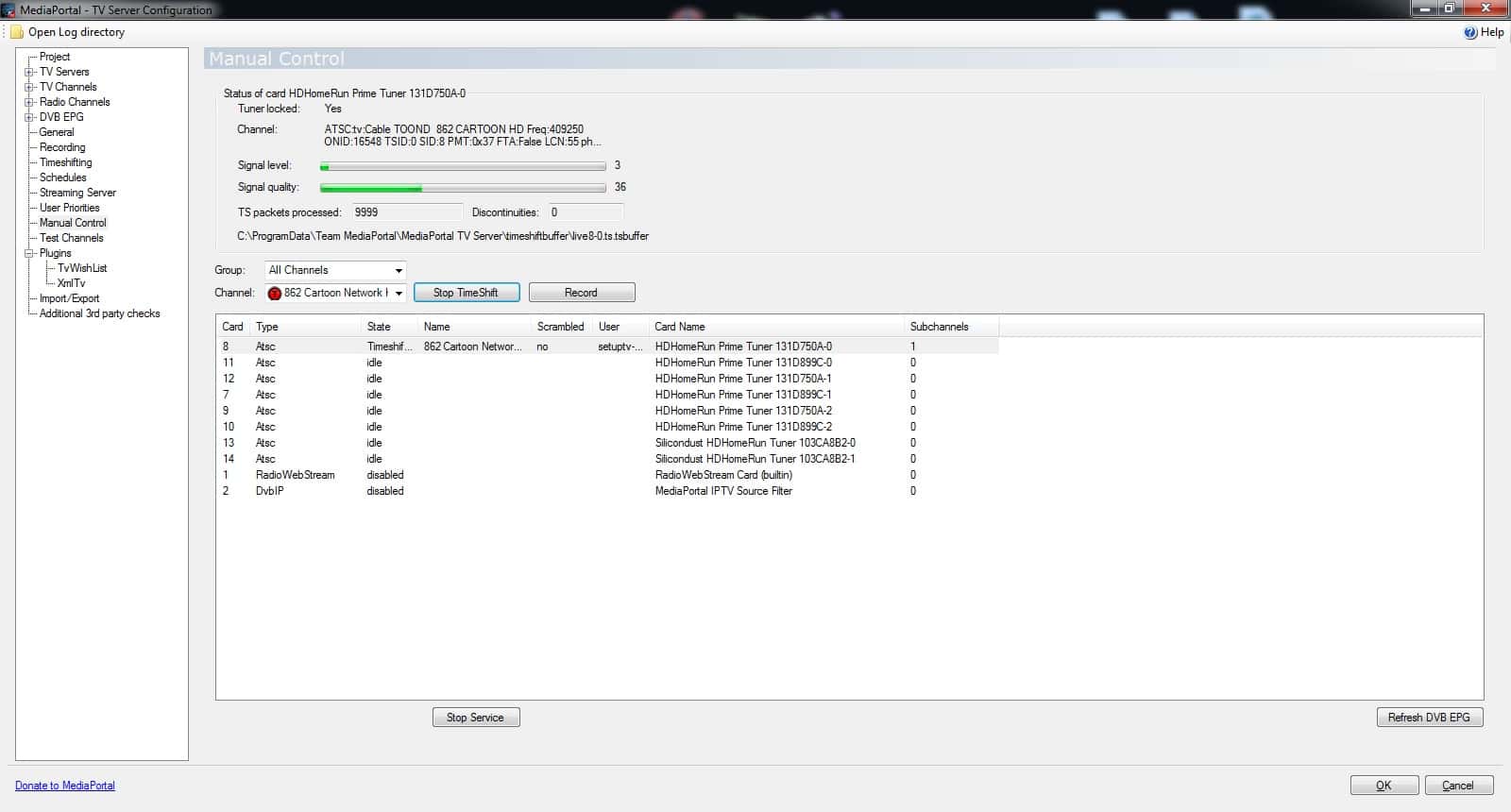

    Did more testing on the TV Server computer.
    Cartoon Network would take 20 sec. to tune in (too long)
    rescanned channels now it tunes in 5 sec. (much better)
    But I still have the same problem.

    Test with the HDHR: when using the HDHR View to tune the channels there are no flaws, it streams very well.
    So is this pointing to mediaportal setting, maybe?:unsure:

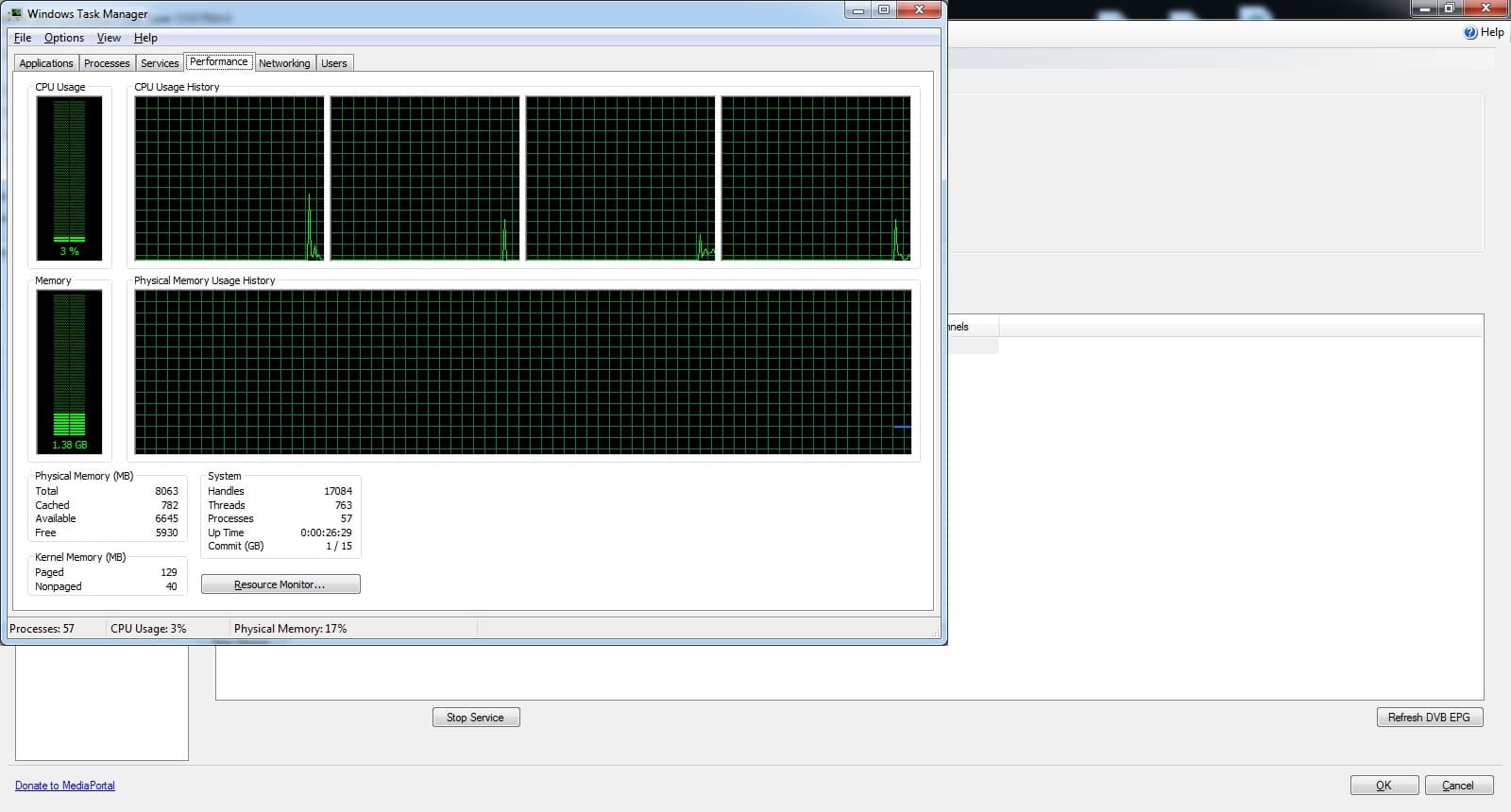

    The computer doesn't seem the stressed.


    Attachments

    • TV Server 6.jpg
      TV Server 6.jpg
      292.2 KB
    • TV Server 5.jpg
      TV Server 5.jpg
      182.3 KB

    Users who are viewing this thread

    Top Bottom
