Hide Windows volume OSD

Discussion in 'Operating System' started by Marcus Venturi, December 12, 2015.

  1. Marcus Venturi
    • Super User

    Marcus Venturi Super User

    Joined:
    March 23, 2012
    Messages:
    606
    Likes Received:
    507
    Gender:
    Male
    Ratings:
    +735 / 1
    Home Country:
    Germany Germany
    Show System Specs

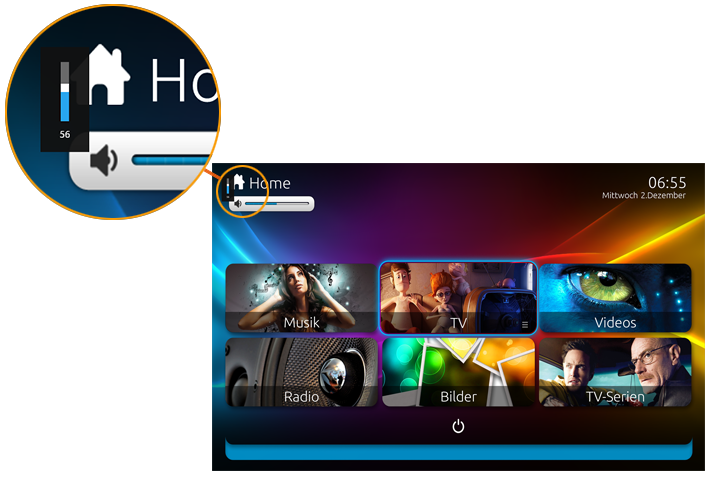

    After upgrading my MediaPortal in the living room from Windows 7 to 10 I noticed a new volume OSD in the top left corner of the screen.

    [​IMG]

    As in MediaPortal every skin has it's own volume indicator I implemented a tool to turn the system volume OSD off.

    You can find it here:



    http://wordpress.venturi.de/?p=1#more-1

    (My first experiment with WordPress :))

    • Like Like x 2
    • Thank You! Thank You! x 2
  2. Google AdSense Guest Advertisement



    to hide all adverts.
  3. JimCatMP
    • Team MediaPortal

    JimCatMP Documentation Group

    Joined:
    April 1, 2010
    Messages:
    646
    Likes Received:
    152
    Gender:
    Male
    Location:
    Leeds
    Ratings:
    +281 / 1
    Home Country:
    United Kingdom United Kingdom
    Show System Specs
    My Win10 play box offline at the moment so can't check it out, but idea is cool and nice write up(y) Once I have Win10 back in play, I'll certainly check it out.

    TTFN - JCMP.

  4. CypherMK
    • Team MediaPortal

    CypherMK Test Group

    Joined:
    March 11, 2009
    Messages:
    1,735
    Likes Received:
    297
    Gender:
    Male
    Ratings:
    +617 / 3
    Home Country:
    Netherlands Netherlands
    Show System Specs
    I recently updated to windows 10. And I had the same annoyance.

    After I installed this program I can manually hide the volume OSD. But after a restart of my pc the volume indicator is back again. Your program is loaded though. Any way you can fix this?

    Thank you!

  5. regeszter
    • Team MediaPortal

    regeszter Retired Team Member

    Joined:
    October 29, 2005
    Messages:
    5,335
    Likes Received:
    2,863
    Ratings:
    +5,151 / 18
    Home Country:
    Hungary Hungary
    We should to include this in MP core. Hide OS volume OSD if the user select GUI volume OSD. Can you share your source? ;)

    • Agree Agree x 2
  6. Stéphane Lenclud
    • Team MediaPortal

    Stéphane Lenclud Development Group

    Joined:
    April 29, 2013
    Messages:
    2,562
    Likes Received:
    657
    Gender:
    Male
    Ratings:
    +1,270 / 8
    Home Country:
    Germany Germany
    Show System Specs
    From @Marcus Venturi blog article it's probably quite easy to implement.
    Use Microsoft Spy++ to workout the name of that Window.
    Once you worked this out a combination of FindWindow and ShowWindow should do the trick.

    Last edited: December 17, 2015
  7. regeszter
    • Team MediaPortal

    regeszter Retired Team Member

    Joined:
    October 29, 2005
    Messages:
    5,335
    Likes Received:
    2,863
    Ratings:
    +5,151 / 18
    Home Country:
    Hungary Hungary
    There is no OS OSD on my virtual dev machine. I do not know why. It is W 8.1, as my htpc.

    I can start coding if I get the window name.

  8. Stéphane Lenclud
    • Team MediaPortal

    Stéphane Lenclud Development Group

    Joined:
    April 29, 2013
    Messages:
    2,562
    Likes Received:
    657
    Gender:
    Male
    Ratings:
    +1,270 / 8
    Home Country:
    Germany Germany
    Show System Specs
    The Class Name is DirectUIHWND.
    On Windows 10 anyway.

    • Thank You! Thank You! x 2
  9. Marcus Venturi
    • Super User

    Marcus Venturi Super User

    Joined:
    March 23, 2012
    Messages:
    606
    Likes Received:
    507
    Gender:
    Male
    Ratings:
    +735 / 1
    Home Country:
    Germany Germany
    Show System Specs
    Strange, the class I'm searching for is "NativeHWNDHost". I can post my source code here at the weekend...

    • Thank You! Thank You! x 2
    • Like Like x 1
  10. Stéphane Lenclud
    • Team MediaPortal

    Stéphane Lenclud Development Group

    Joined:
    April 29, 2013
    Messages:
    2,562
    Likes Received:
    657
    Gender:
    Male
    Ratings:
    +1,270 / 8
    Home Country:
    Germany Germany
    Show System Specs
    Odd I checked again and on my Surface Pro 3 I keep getting DirectUIHWND.

    • Like Like x 1
  11. Marcus Venturi
    • Super User

    Marcus Venturi Super User

    Joined:
    March 23, 2012
    Messages:
    606
    Likes Received:
    507
    Gender:
    Male
    Ratings:
    +735 / 1
    Home Country:
    Germany Germany
    Show System Specs
    Thank you for checking again. Looks like there are differences between the systems. I will alter my code to search for both. Maybe you could then test if it works on your system. Nevertheless I will post my (very simple) code here at the weekend when I have finished my pre-Christmas tasks. ;)

    • Like Like x 1
    • Thank You! Thank You! x 1
