Mini Display Plugin (1 Viewer)

[Technicolour]

I have a weird issue with MiniDisplay only updating only once every 8 seconds or so. :/ Any ideas?

You probably have 4TR installed? What display are you using? Look at my post here.

Yeah I do.

Anyway to fix it?



[slarti]

I really don't know, other than uninstall 4TR. Could you post your system specs so we can see what we have in common and maybe figure out a fix?



[madvario]

AW: Mini Display Plugin

Hi all,

seems, that the IMon vfd-display only works well up to driver version 7.77.
Download-link:
iMON/iMEDIAN HD Version 7.77.1022 (Oct. 22, 2009) - Soundgraph Forums

For me, it works well with the backup from Scrounger:https://forum.team-mediaportal.com/tipps-tricks-tutorials-176/tutorial-imon-lcd-fernbedienung-einrichten-73813/

watch in the sixth post, there's a link called Imon Backup.zip to scrounger

the thread with the backup is very good, anyone should get a working imon with it.only need to understand german, sorry


Sorry for my bad english, cause of less practice.



[finrudd341]

Nothing to do with imon LCD products?

Sorry if this is in the wrong place, but if like me you upgrade MP and then cannot remember how to enable your display on a 7" LCD SCREEN (like on the Zalman HD160XT) then this might come in useful. If not, I can always search for my posts to remind myself how to do it.

I always try enabling/disabling the minidisplay plugin, and trying all the options, and it does not work. I have found I need the following:

1. C:\Program Files\Team MediaPortal\MediaPortal\plugins\process\TouchScreenPlugin.dll
2. C:\Documents and Settings\All Users\Application Data\Team MediaPortal\MediaPortal\TouchScreenDisplay.xml
3. C:\Documents and Settings\All Users\Application Data\Team MediaPortal\MediaPortal\TouchScreen_Skin.xml

I then don't even need to enable the minidisplay in the plugins section.

Anyway - sorry if this is completely off-topic, but it looks as though I am not the only person who comes to this thread to try and get a 7" touchscreen LCD working with this plugin, when in fact it might be something else we are looking for!

Hope it helps someone.

Edit: This is the correct thread for what I am talking about, but I think there may be people viewing this thread on mini-display in error, when what they want is display for a touchscreen: https://forum.team-mediaportal.com/...mptouch-mediaportal-touchscreen-plugin-80636/

EDIT AGAIN: Just realised my attached files are probably well out of date - I would recommend visiting the thread and getting the new ones!



[Technicolour]

I really don't know, other than uninstall 4TR. Could you post your system specs so we can see what we have in common and maybe figure out a fix?

I don't see how system specs change anything I'm far from underpowered.

Mediaportal 1.1 RC2
4TR 1.5



[slarti]

The type of display and installed drivers/software/plugins is what I'm interested in. I have an IRTrans module with the driver from origenAE site and 1.1rc2 with StreamedMP. Also, what settings do you have in the minidisplay config? (see My System on the left)



[Technicolour]

The type of display and installed drivers/software/plugins is what I'm interested in. I have an IRTrans module with the driver from origenAE site and 1.1rc2 with StreamedMP. Also, what settings do you have in the minidisplay config? (see My System on the left)

iMon LCD

7.62

Firmware 0xa1



[akia181]

Hello to every body

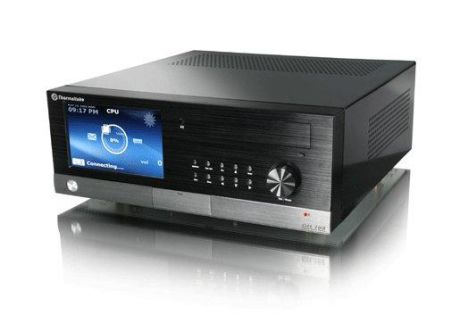

I have a little big problem with my mediaportal and the LCD of my thermltake mozart sx, i have the latest version of imon installed and the Media Portal 1.1.0 RC5

i've found this on the log, anyone can help me?

I've no idea how to check the firmware version of my lcd



[chemelli]

Hello to every body
I have a little big problem with my mediaportal and the LCD of my thermltake mozart sx, i have the latest version of imon installed and the Media Portal 1.1.0 RC5

i've found this on the log, anyone can help me?

I've no idea how to check the firmware version of my lcd

Stick on 7.60 version of iMON:

2010-06-26 10:00:11.816343 [Info.][Config Main(1)]: iMONLCDg.iMONDisplay.CreateImonDLLWrapper(): FAILED - SG_RC.dll not found
[...]
2010-06-26 10:00:11.816343 [Info.][Config Main(1)]: iMONLCDg.iMONDisplay.Initialize(): Advanced options forces V3 DLL
2010-06-26 10:00:11.816343 [Info.][Config Main(1)]: iMONLCDg.iMONDisplay.Initialize(): Installed DLL not found - using DLL su

Seem newer version removed the SG_RC.DLL library we use to detect the display. Are you really sure you need the V3 version of the DLL ? This option is there only for some very old VFD afaik.

Simone



[ned_flanders]

Seem newer version removed the SG_RC.DLL library we use to detect the display

In fact there are now two dlls called "SG_RCU.dll" and "SG_VFDU.dll". Maybe that two are the same libraries?
Will there ever be a version of the plugin which will work with newer versions of iMon software?
Doesn't Soundgraph give you any support with the issues? I think it should be in their interest to get their dispalys work with one of the main htpc-softwares without remaining on "old" iMon versions.

Greetings
Stefan
