New Zealand
Hi, if you mean that the audio goes in and out of sync with the video then yes I've got the same problem. (Fine on AC3) I'd love to know how to fix this too. I'm using the PowerDVD9 codec.
Calling all MP New Zealanders (Both of you!!) (6 Viewers)
- Thread starter TVKiwi
- Start date
Hi, if you mean that the audio goes in and out of sync with the video then yes I've got the same problem. (Fine on AC3) I'd love to know how to fix this too. I'm using the PowerDVD9 codec.
post the graph when MP is running TV3 with AAC is use.
Hi, sorry, not sure how to do this. Could you elaborate a little? Thanks
How can i know what filters are in use in MP?
Use Graphstudio - RadScorpion’s blog MONOGRAM GraphStudio
For the above to work, you may need proppage.dll installed and registered in system32 folder (or syswow64 for 64bit vista)
Start MP in window mode.
Start GraphStudio and File->Connect to remote graph and click connect
Take a screen capture (CTRL+PRINT SCREEN) and paste the image into an image editor, then upload the image

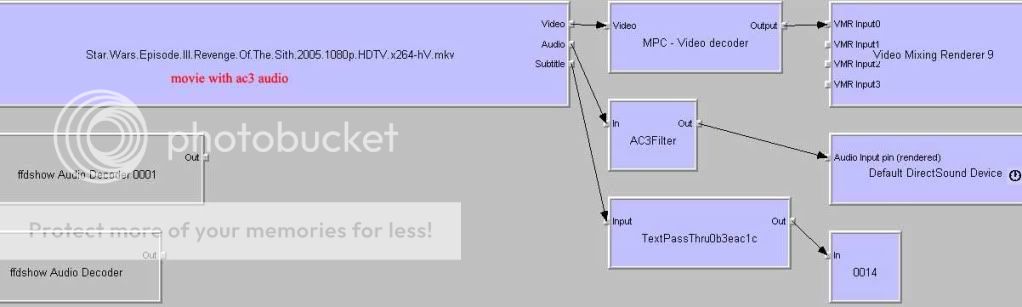

Here's an example
Use Graphstudio - RadScorpion’s blog MONOGRAM GraphStudio
For the above to work, you may need proppage.dll installed and registered in system32 folder (or syswow64 for 64bit vista)
Start MP in window mode.
Start GraphStudio and File->Connect to remote graph and click connect
Take a screen capture (CTRL+PRINT SCREEN) and paste the image into an image editor, then upload the image
Here's an example
How can i know what filters are in use in MP?
Use Graphstudio - RadScorpion’s blog MONOGRAM GraphStudio
For the above to work, you may need proppage.dll installed and registered in system32 folder (or syswow64 for 64bit vista)
Start MP in window mode.
Start GraphStudio and File->Connect to remote graph and click connect
Take a screen capture (CTRL+PRINT SCREEN) and paste the image into an image editor, then upload the image
Here's an example

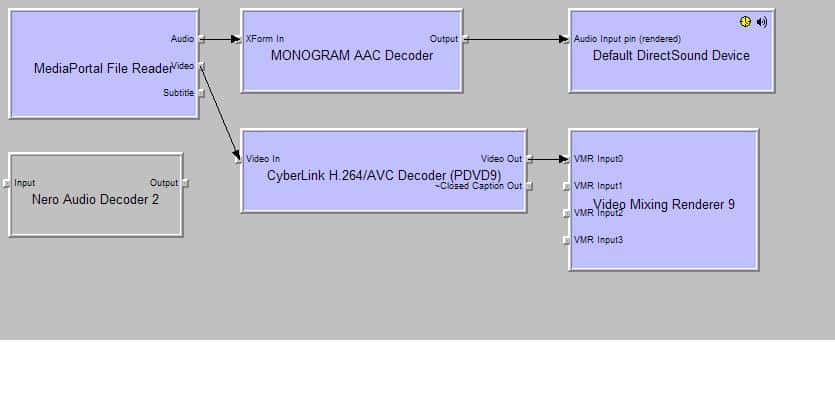

Great instructions! Thanks. Ok, here's the info:
Attachments
Yes, only on TV3. All other channels fine. I just use ac3 where the sync is no problem.
and to confirm DVB-T HDTV TV3 1080i only stutters with AAC and when you use AC3 there is no stutter?
if that is so, then plz post graph with ac3 sound. (your aac graph looks fine)
also press shift+! and see if you are dropping frames or have high jitter.
if that is so, then plz post graph with ac3 sound. (your aac graph looks fine)
also press shift+! and see if you are dropping frames or have high jitter.
Yes, the issue is only on AAC on TV3. AC3 on TV3 is fine. All other digital channels are fine. Just to clarify "stutter" The audio sounds fine, no breakups or odd noises, it just seems to drift in and out of sync with the video. Sometimes it looks fine, other times it looks like a dubbed foreign language film.
I've just checked with shift+! and currently show (after about ten minutes of viewing) 1 dropped frame and jitter of 3. (By the way, what exactly is "jitter"?) Unfortunately infomercials are on at the moment so I can't really tell if the audio is in sync or not. I'll check again tonight.
Thanks
Attachments
both graphs look fine. i believe jitter has to do with delays with decoding audio/video and is related to audio/video synch. 1 dropped frame and jitter of 3 seems fine. I know that ac3filter has the ability to resynch audio, but i'm not sure if monogram aac can do that or not. You could try adding ac3filter under post processing for mediaportal config tv settings, then run graphstudio to check that ac3filter is in the graph after the monogram aac filter, ie. "MP file reader -> Monogram AAC -> Ac3filter -> Direct sound device". This may help with the synch.
There are also alternative AAC codecs that you can try. If you download HD Pack 2.2, it contains an alternative aac codec (use google), i think it's called "elecard aac codec". However i think your graphs look fine so i'm not sure why it is going out of sync. Since you have PDVD installed maybe you could try using PDVD for AAC codec too. You might just want to stick with ac3 for TV3, if you want to always use ac3 you can select prefered audio type in MP settings
There are also alternative AAC codecs that you can try. If you download HD Pack 2.2, it contains an alternative aac codec (use google), i think it's called "elecard aac codec". However i think your graphs look fine so i'm not sure why it is going out of sync. Since you have PDVD installed maybe you could try using PDVD for AAC codec too. You might just want to stick with ac3 for TV3, if you want to always use ac3 you can select prefered audio type in MP settings
Thanks for your help and tips. Much appreciated! I'll try some of the combinations you've suggested and see if I get any improvement.
I'm not keen on using AC3 for everything on TV3 as it's a bit naff for programs that don't have digital sound originally but it's a fall back I guess.
I'd be interested to know which codecs users Kiwi or Nato who've also logged this issue are using. Do you both have strong DVB-T signals?
