No audio/video pins found , no channel found | Page 6

Discussion in 'pre 1.0 RC1' started by Acteo, January 23, 2007.

  1. TimonTrukker

    TimonTrukker New Member

    Joined:
    November 15, 2007
    Messages:
    1
    Likes Received:
    0
    Ratings:
    +0 / 0
    Home Country:
    Belgium Belgium
    Same problem

    i have a similar problem with my analog s/w card (hercules winTV stereo), first of all: autotune doesn't work and when i manually tune the card, it fails to test the timeshift, when i look in the log's: cannot connect adio/video...

    I did manage to manually draw a graph that works fine.
    In the normal media portal (whitout the server) it was possible to enter your graph in an xml code (witch worked for me).
    Is this also possible in the tvserver version?

    Thanx

    Timon



  2. Google AdSense Guest Advertisement



    to hide all adverts.
  3. fchristi

    fchristi Portal Member

    Joined:
    March 17, 2007
    Messages:
    12
    Likes Received:
    0
    Ratings:
    +0 / 0
    Home Country:
    Sweden Sweden
    Morning guys
    Did you sort this out? Just installed the TV-Server (everything latest versions) and an additional CInergy S2-card. I kept my Hauppauge 4000 (triple card with DVB-S/T/Analog). The Hauppauge, which has worked perfectly well before, without TV-Server, now crashes constantly upon channel search. The Cinergy channel scan does search and map but crashes at different points, hence I manage to map at least some channels.

    Regards

    Fredrik

  4. hakuna

    hakuna Portal Pro

    Joined:
    October 15, 2004
    Messages:
    395
    Likes Received:
    0
    Occupation:
    Automation engineer
    Location:
    Gothenburg
    Ratings:
    +1 / 0
    Home Country:
    Sweden Sweden
    Hello again.
    After two years, I moved back to a house with analog cable, so I'd like to get my hvr-900's analouge part running.

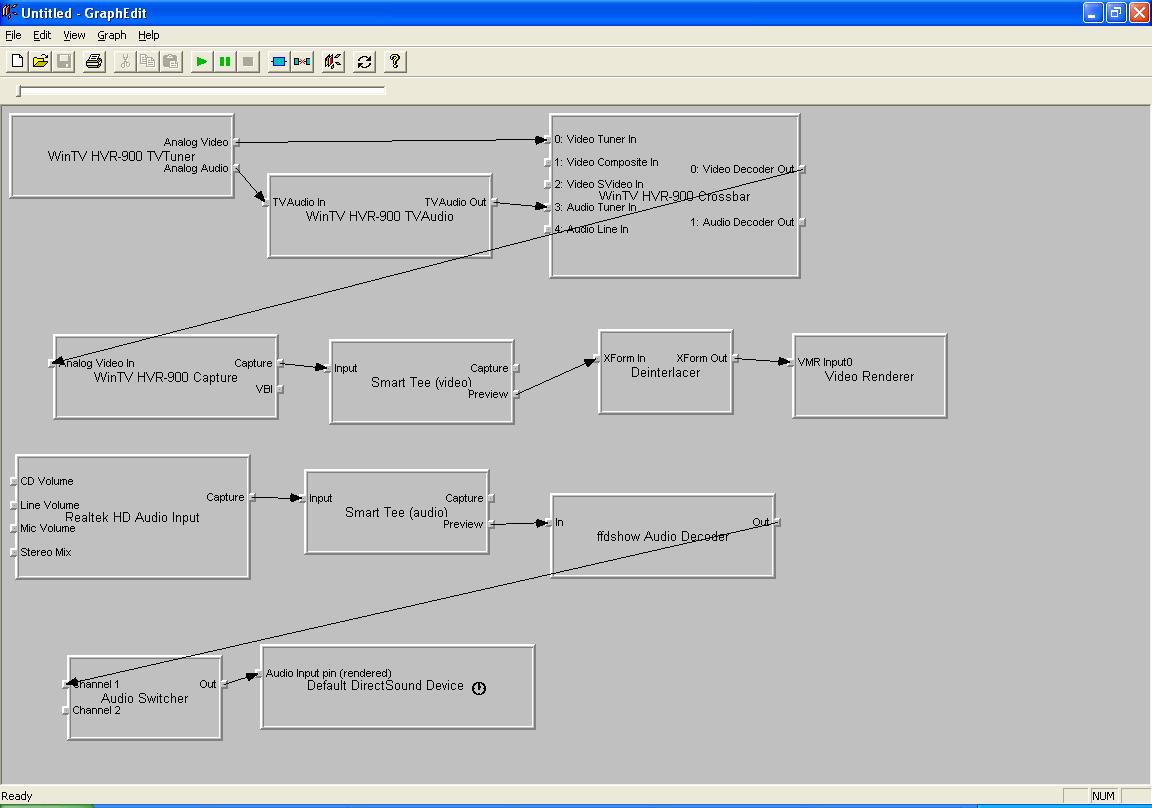

    I get A/V in WinTV and if I open device HVR for video and device Realtek (my soundcard) for audio, in MPC, I get graphs.

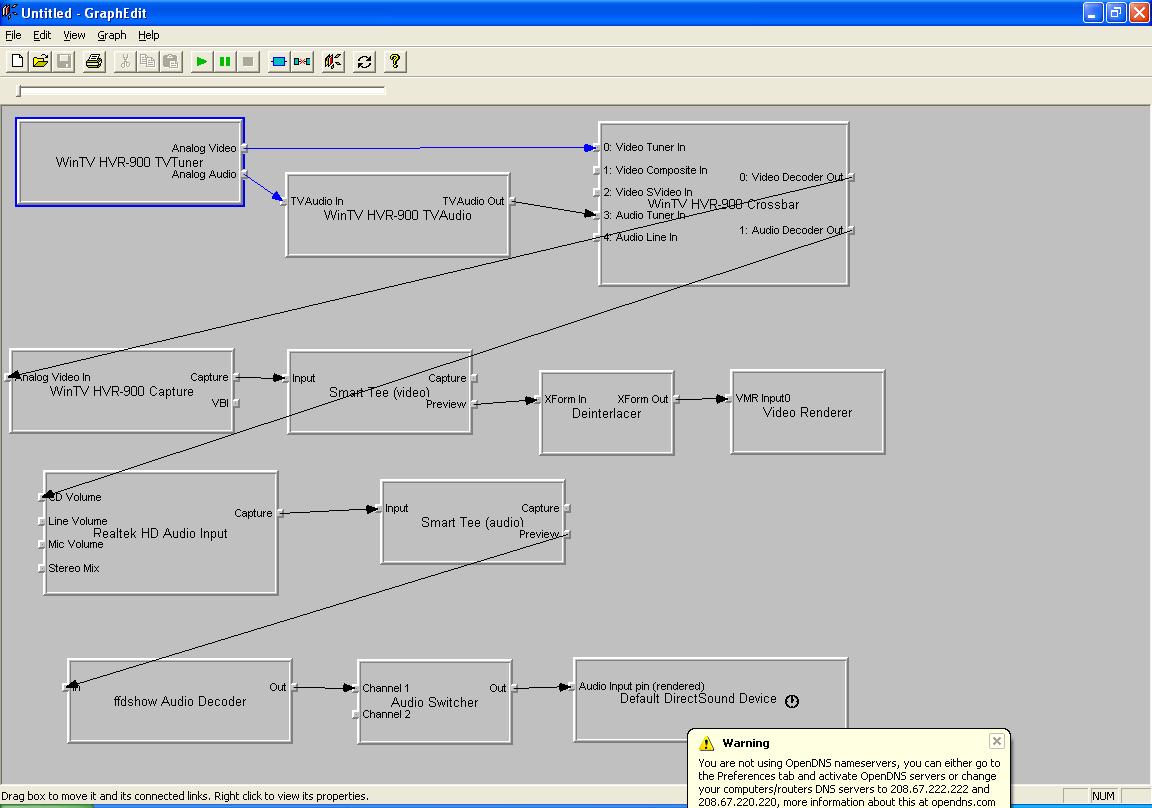

    I can draw a new line from hvr crossbar to Audio switcher channel 2, and then I get the second graph.

    MP says this when I try tuning. Anyone has some clue as how to connect the pins in MP?

    2009-08-15 14:59:53.218750 [10]: Exception :confused:ystem.Exception: No analog audio/video pins found
    at TvLibrary.Implementations.Analog.Components.Encoder.CreateFilterInstance(IFilterGraph2 _graphBuilder, Tuner _tuner, TvAudio _tvAudio, Crossbar _crossbar, Capture _capture)
    at TvLibrary.Implementations.Analog.TvCardAnalog.BuildGraph()

    2009-08-15 14:59:53.250000 [10]: Exception :TvLibrary.TvExceptionGraphBuildingFailed: Graph building failed ---> System.Exception: No analog audio/video pins found
    at TvLibrary.Implementations.Analog.Components.Encoder.CreateFilterInstance(IFilterGraph2 _graphBuilder, Tuner _tuner, TvAudio _tvAudio, Crossbar _crossbar, Capture _capture)
    at TvLibrary.Implementations.Analog.TvCardAnalog.BuildGraph()
    --- End of inner exception stack trace ---
    at TvLibrary.Implementations.Analog.TvCardAnalog.BuildGraph()
    at TvLibrary.Implementations.Analog.TvCardAnalog.Tune(Int32 subChannelId, IChannel channel)
    at TvLibrary.Implementations.Hybrid.HybridCardGroup.Tune(Int32 subChannelId, IChannel channel)
    at TvLibrary.Implementations.Hybrid.HybridCard.Tune(Int32 subChannelId, IChannel channel)
    at TvService.CardTuner.Tune(User& user, IChannel channel, Int32 idChannel)


    Niclas


    Attached Files:

    • graph2.JPG
      File size:
      103 KB
      Uploaded:
      August 15, 2009
      Views:
      157
    • graph1.JPG
      File size:
      88.8 KB
      Uploaded:
      August 15, 2009
      Views:
      174
