Titan tile label position

Discussion in 'MediaPortal 1 Talk' started by Sk1llSh0t, November 26, 2018.

  1. Sk1llSh0t

    Sk1llSh0t Portal Member

    Joined:
    April 3, 2013
    Messages:
    7
    Likes Received:
    2
    Gender:
    Male
    Ratings:
    +6 / 0
    Home Country:
    United States of America United States of America
    November 26, 2018 #1

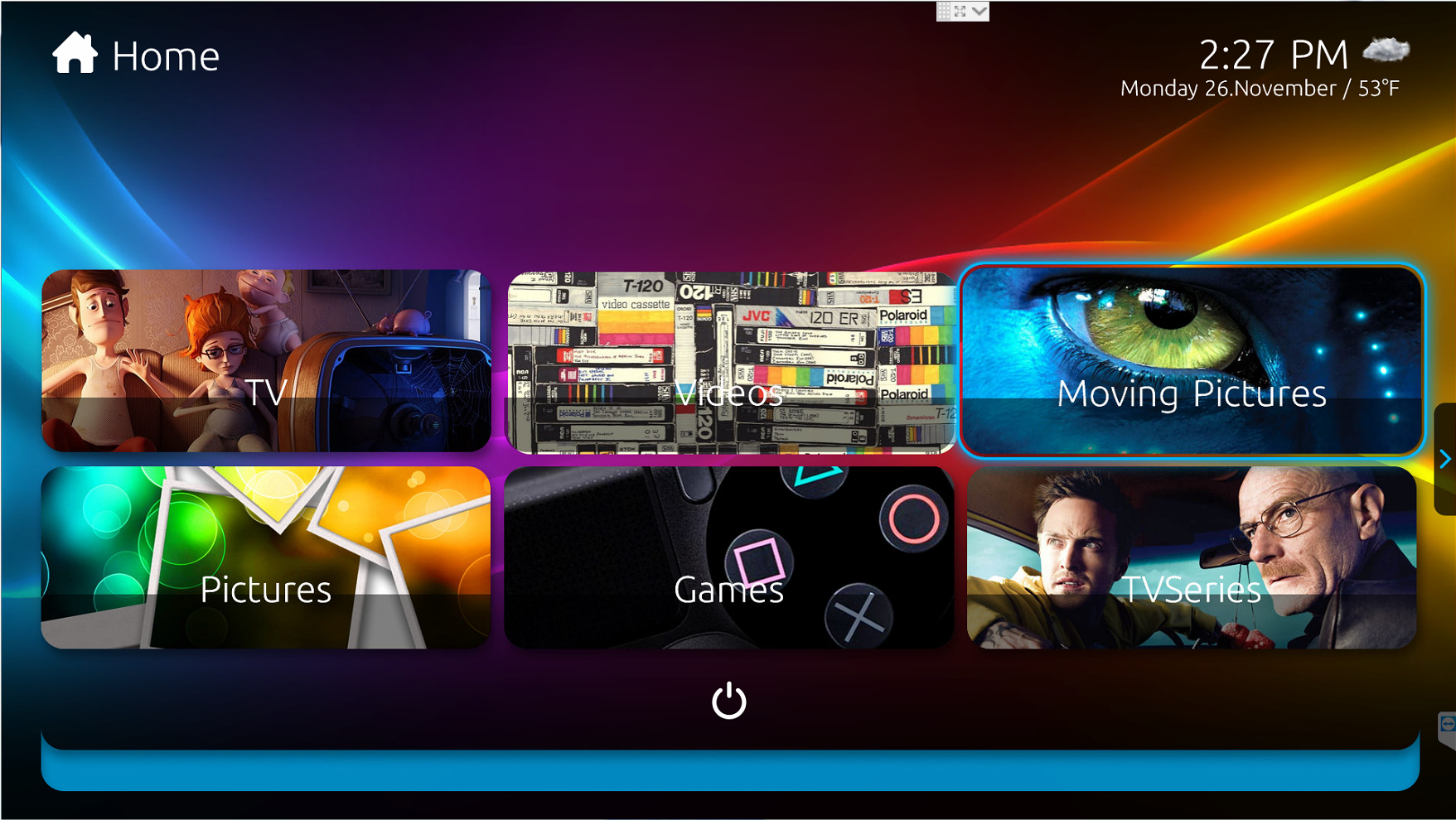

    Why are the labels for the titan tiles not positioned correctly inside the shadow box at the bottom of the tile? Can anyone show me how to correct this? Thanks!




    Attached Files:

    • titan.png
      File size:
      2.1 MB
      Uploaded:
      November 26, 2018
      Views:
      74
    Sk1llSh0t, November 26, 2018

  2. Google AdSense Guest Advertisement



    to hide all adverts.
  3. Sk1llSh0t

    Sk1llSh0t Portal Member

    Joined:
    April 3, 2013
    Messages:
    7
    Likes Received:
    2
    Gender:
    Male
    Ratings:
    +6 / 0
    Home Country:
    United States of America United States of America
    November 26, 2018 #2
    It occurs when i'm trying to use the titan editor to modify the basic home page. If i use the default skin, everything is fine (but the tile images/apps aren't the correct ones i want to display). so i modify the titan skin by using the editor and that is when it messes up the label position.

    I'm using Mediaportal 1.20 btw.

    Sk1llSh0t, November 26, 2018
  4. Sk1llSh0t

    Sk1llSh0t Portal Member

    Joined:
    April 3, 2013
    Messages:
    7
    Likes Received:
    2
    Gender:
    Male
    Ratings:
    +6 / 0
    Home Country:
    United States of America United States of America
    November 26, 2018 #3
    Just in case someone else runs into the same problem with the titan editor...

    Fix: I modified BasicHome.xml in C:\ProgramData\Team MediaPortal\MediaPortal\skin\Titan\Themes\Extended One. i set the textypos values from 88 to 176 and that did the trick.

    Sk1llSh0t, November 26, 2018
    • Thank You! Thank You! x 1
  5. MovieJack

    MovieJack Portal Member

    Joined:
    September 25, 2009
    Messages:
    38
    Likes Received:
    1
    Ratings:
    +2 / 0
    Home Country:
    Germany Germany
    Show System Specs
    December 18, 2018 #4
    Stumbled upon your thread, Changed it according your advise and it looks much better.

    THX ,,,

    MovieJack, December 18, 2018
